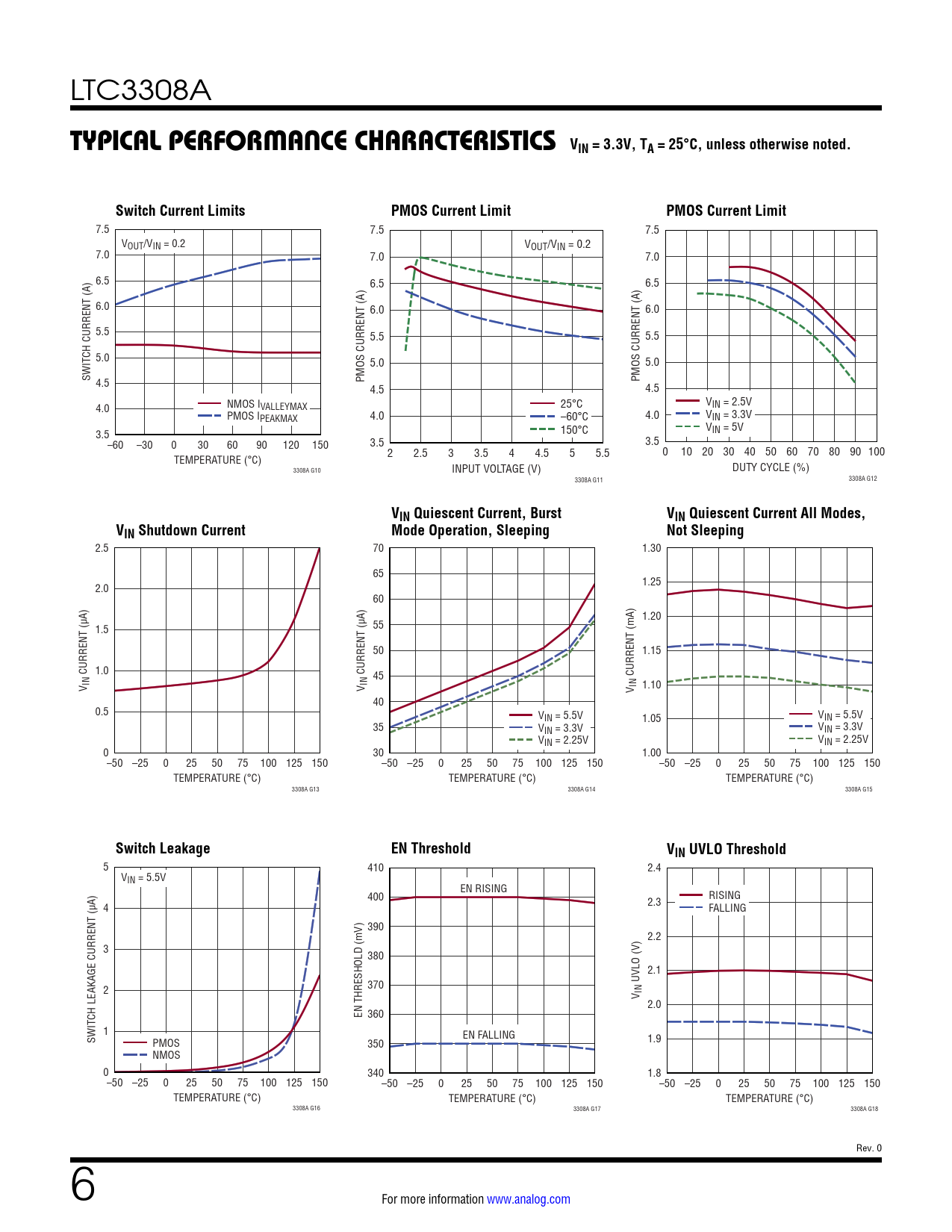

TYPICAL PERFORMANCE CHARACTERISTICS VIN = 3.3V, TA = 25°C, unless otherwise noted. Switch Current Limits
