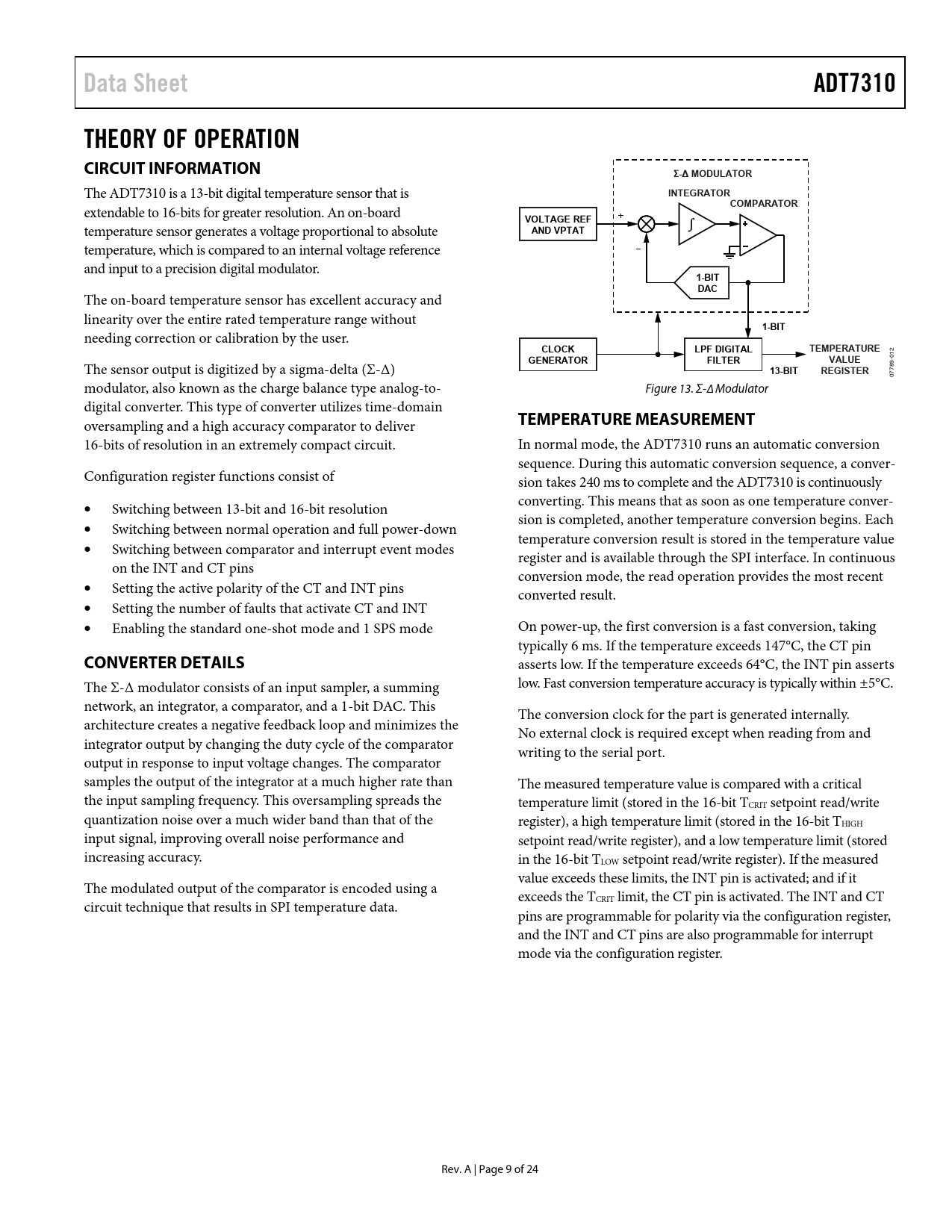

Data Sheet ADT7310 THEORY OF OPERATION CIRCUIT INFORMATION Σ-∆ MODULATOR
The ADT7310 is a 13-bit digital temperature sensor that is
INTEGRATOR COMPARATOR
extendable to 16-bits for greater resolution. An on-board
VOLTAGE REF
temperature sensor generates a voltage proportional to absolute
AND VPTAT
temperature, which is compared to an internal voltage reference and input to a precision digital modulator.
1-BIT DAC
The on-board temperature sensor has excellent accuracy and linearity over the entire rated temperature range without
1-BIT
needing correction or calibration by the user.
CLOCK LPF DIGITAL TEMPERATURE
12
GENERATOR FILTER VALUE
-0 The sensor output is digitized by a sigma-delta (Σ-Δ)
13-BIT REGISTER
789 7 0 modulator, also known as the charge balance type analog-to- Figure 13. Σ-∆ Modulator digital converter. This type of converter utilizes time-domain oversampling and a high accuracy comparator to deliver
TEMPERATURE MEASUREMENT
16-bits of resolution in an extremely compact circuit. In normal mode, the ADT7310 runs an automatic conversion sequence. During this automatic conversion sequence, a conver- Configuration register functions consist of sion takes 240 ms to complete and the ADT7310 is continuously converting. This means that as soon as one temperature conver- Switching between 13-bit and 16-bit resolution sion is completed, another temperature conversion begins. Each Switching between normal operation and full power-down temperature conversion result is stored in the temperature value Switching between comparator and interrupt event modes register and is available through the SPI interface. In continuous on the INT and CT pins conversion mode, the read operation provides the most recent Setting the active polarity of the CT and INT pins converted result. Setting the number of faults that activate CT and INT Enabling the standard one-shot mode and 1 SPS mode On power-up, the first conversion is a fast conversion, taking typically 6 ms. If the temperature exceeds 147°C, the CT pin
