| Description | Low Noise, Low Gain Drift, G = 2000 Instrumentation Amplifier |
| Pages / Page | 7 / 6 — AD8428-KGD. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. +VS. … |
| File Format / Size | PDF / 237 Kb |
| Document Language | English |
AD8428-KGD. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. +VS. –IN. –FIL. DNC. OUT. +FIL. +IN. REF. –VS
Model Line for this Datasheet
Text Version of Document
AD8428-KGD Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS +VS –IN 1 8 –FIL 2 DNC DNC 7 OUT DNC DNC +FIL 3 +IN 4 6 REF AD8428-KGD 5 –VS
002
NOTES 1. DNC = DO NOT CONNECT PAD.

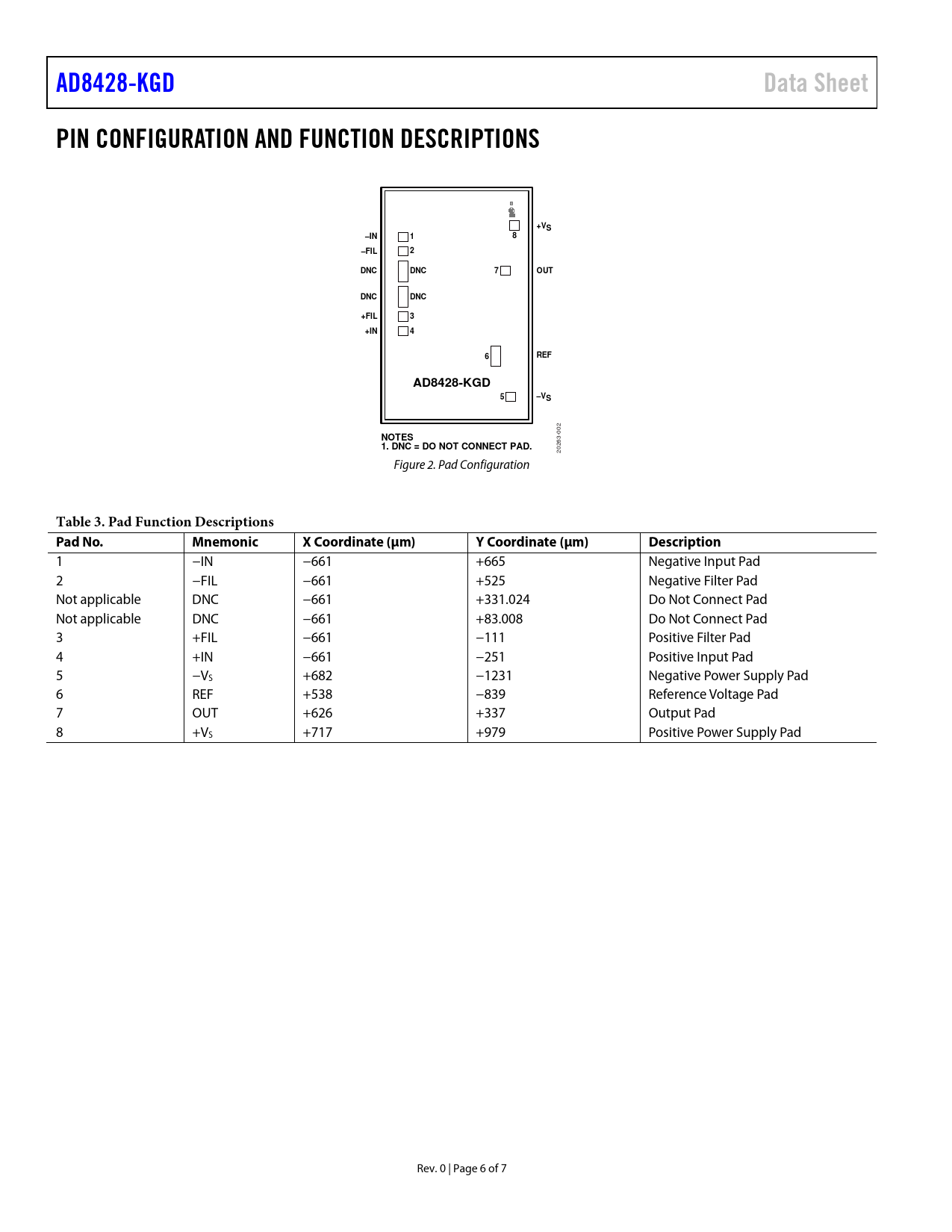

20263- Figure 2. Pad Configuration
Table 3. Pad Function Descriptions Pad No. Mnemonic X Coordinate (µm) Y Coordinate (µm) Description
1 −IN −661 +665 Negative Input Pad 2 −FIL −661 +525 Negative Filter Pad Not applicable DNC −661 +331.024 Do Not Connect Pad Not applicable DNC −661 +83.008 Do Not Connect Pad 3 +FIL −661 −111 Positive Filter Pad 4 +IN −661 −251 Positive Input Pad 5 −VS +682 −1231 Negative Power Supply Pad 6 REF +538 −839 Reference Voltage Pad 7 OUT +626 +337 Output Pad 8 +VS +717 +979 Positive Power Supply Pad Rev. 0 | Page 6 of 7 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
