Datasheet B320, B330, B340, B350, B360 (Diodes) - 4
| Manufacturer | Diodes |
| Description | 3.0A Surface Mount Schottky Barrier Rectifier |
| Pages / Page | 5 / 4 — B320 - B360. Package Outline Dimensions. SMC. Dim. Min. Max. All … |
| File Format / Size | PDF / 344 Kb |
| Document Language | English |
B320 - B360. Package Outline Dimensions. SMC. Dim. Min. Max. All Dimensions in mm. Suggested Pad Layout. Value. Dimensions. (in mm)
Model Line for this Datasheet
Text Version of Document

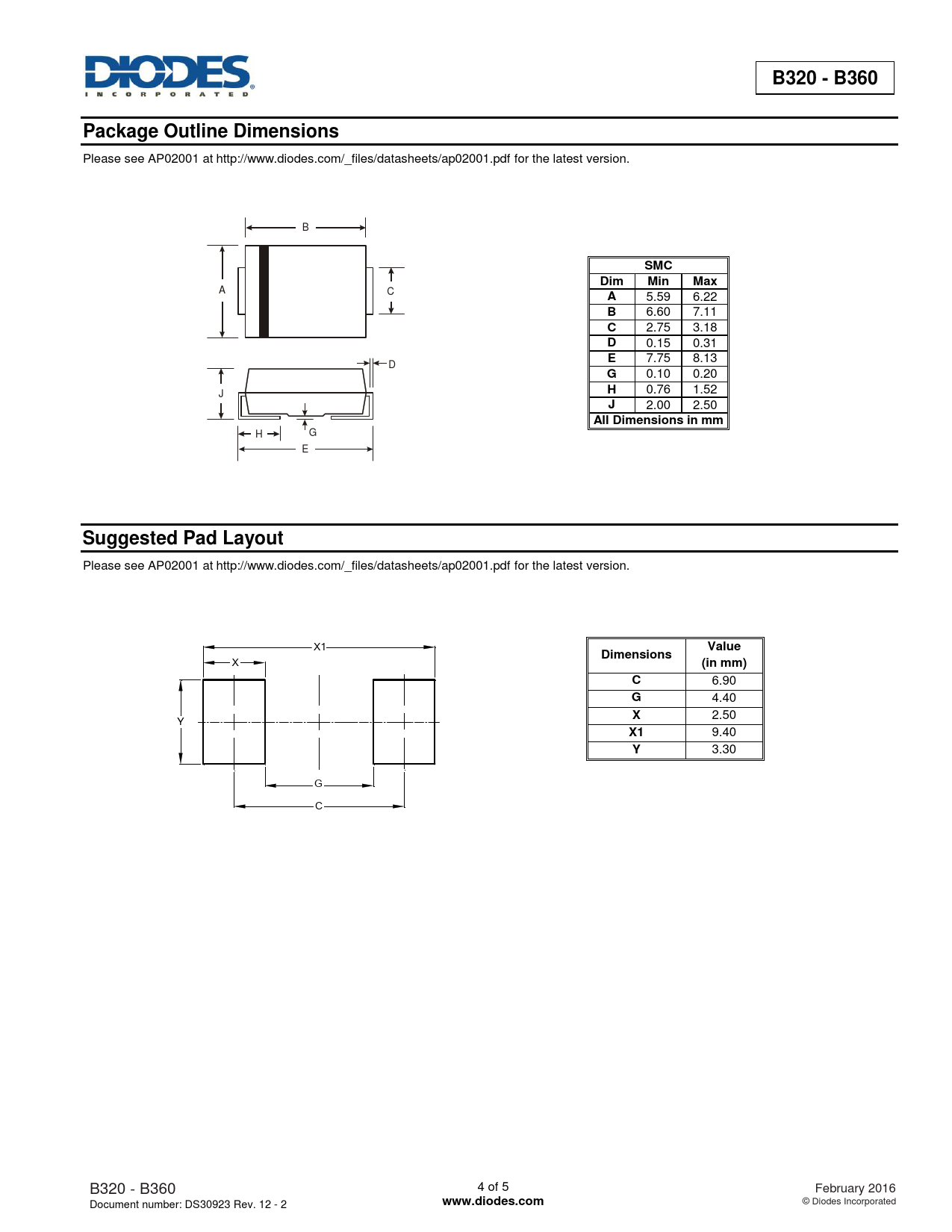

B320 - B360 Package Outline Dimensions
Please see AP02001 at http://www.diodes.com/_files/datasheets/ap02001.pdf for the latest version. B
SMC Dim Min Max
A C
A
5.59 6.22
B
6.60 7.11
C
2.75 3.18
D
0.15 0.31
E
7.75 8.13 D
G
0.10 0.20
H
0.76 1.52 J
J
2.00 2.50
All Dimensions in mm
H G E
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/_files/datasheets/ap02001.pdf for the latest version. X1
Value Dimensions
X
(in mm) C
6.90
G
4.40
X
2.50 Y
X1
9.40
Y
3.30 G C B320 - B360 4 of 5 February 2016 Document number: DS30923 Rev. 12 - 2
www.diodes.com
© Diodes Incorporated
