Datasheet TSL257 (AustriaMicroSystems) - 8
| Manufacturer | AustriaMicroSystems |
| Description | High-Sensitivity Light-to-Voltage Converter |
| Pages / Page | 17 / 8 — TSL257 −. Parameter Measurement Information. Figure 9: Switching Times. … |
| File Format / Size | PDF / 344 Kb |
| Document Language | English |
TSL257 −. Parameter Measurement Information. Figure 9: Switching Times. VDD. Pulse. Generator. Input. LED. (see Note 1). Output. 90%. TSL257
Model Line for this Datasheet
Text Version of Document
TSL257 −
Parameter Measurement Information

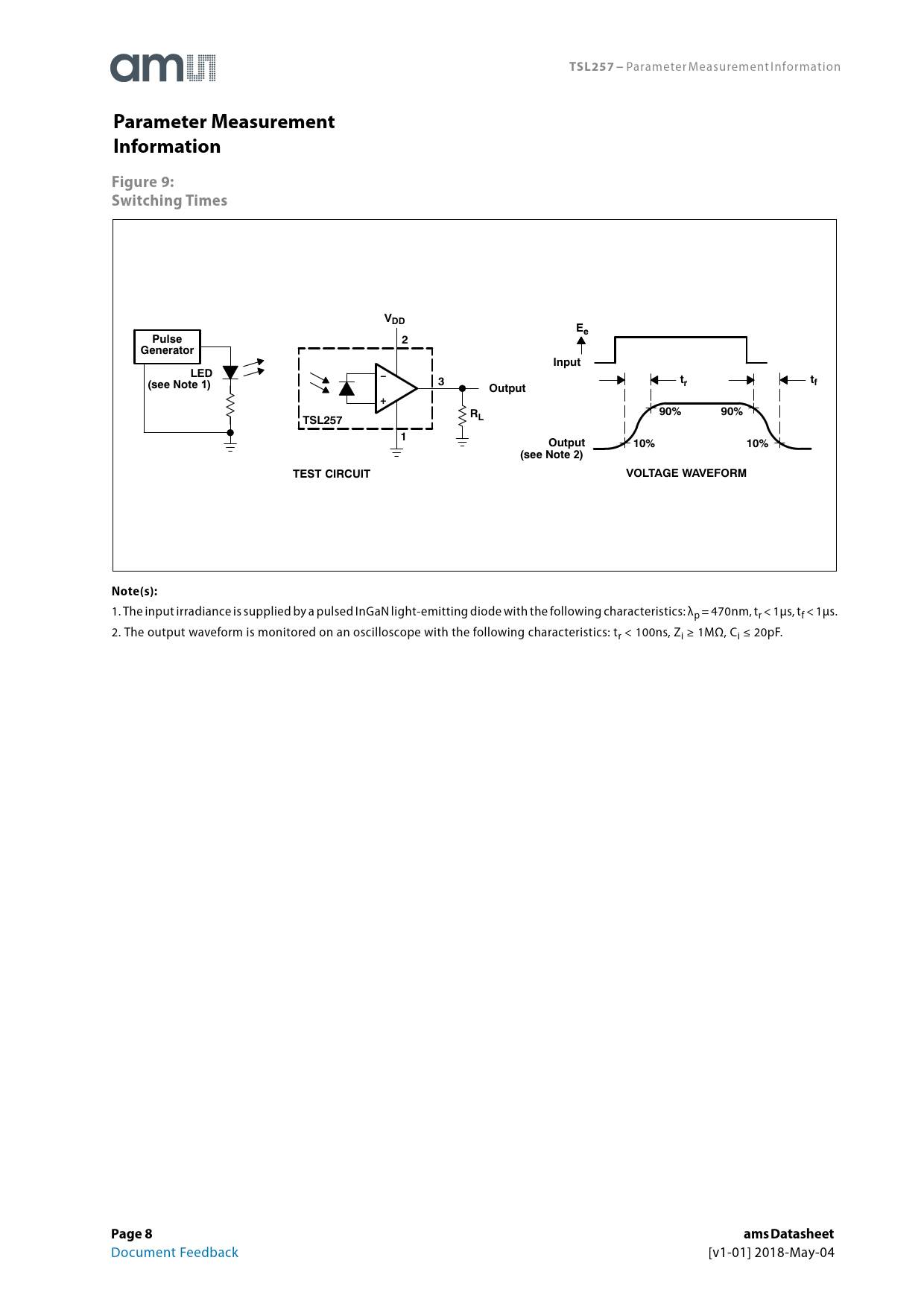

Parameter Measurement Information Figure 9: Switching Times VDD Ee Pulse 2 Generator Input LED ï 3 tr (see Note 1) tf Output + 90% R 90% TSL257 L 1 Output 10% 10% (see Note 2) TEST CIRCUIT VOLTAGE WAVEFORM Note(s):
1. The input irradiance is supplied by a pulsed InGaN light-emitting diode with the following characteristics: λp = 470nm, tr < 1μs, tf < 1μs. 2. The output waveform is monitored on an oscilloscope with the following characteristics: tr < 100ns, Zi ≥ 1MΩ, Ci ≤ 20pF.
Page 8 ams Datasheet
