Nexperia. MMBZxAL series. Low capacitance unidirectional double ESD protection diodes. Table 10. Characteristics. Symbol. Parameter
Model Line for this Datasheet
Text Version of Document
link to page 9 link to page 9

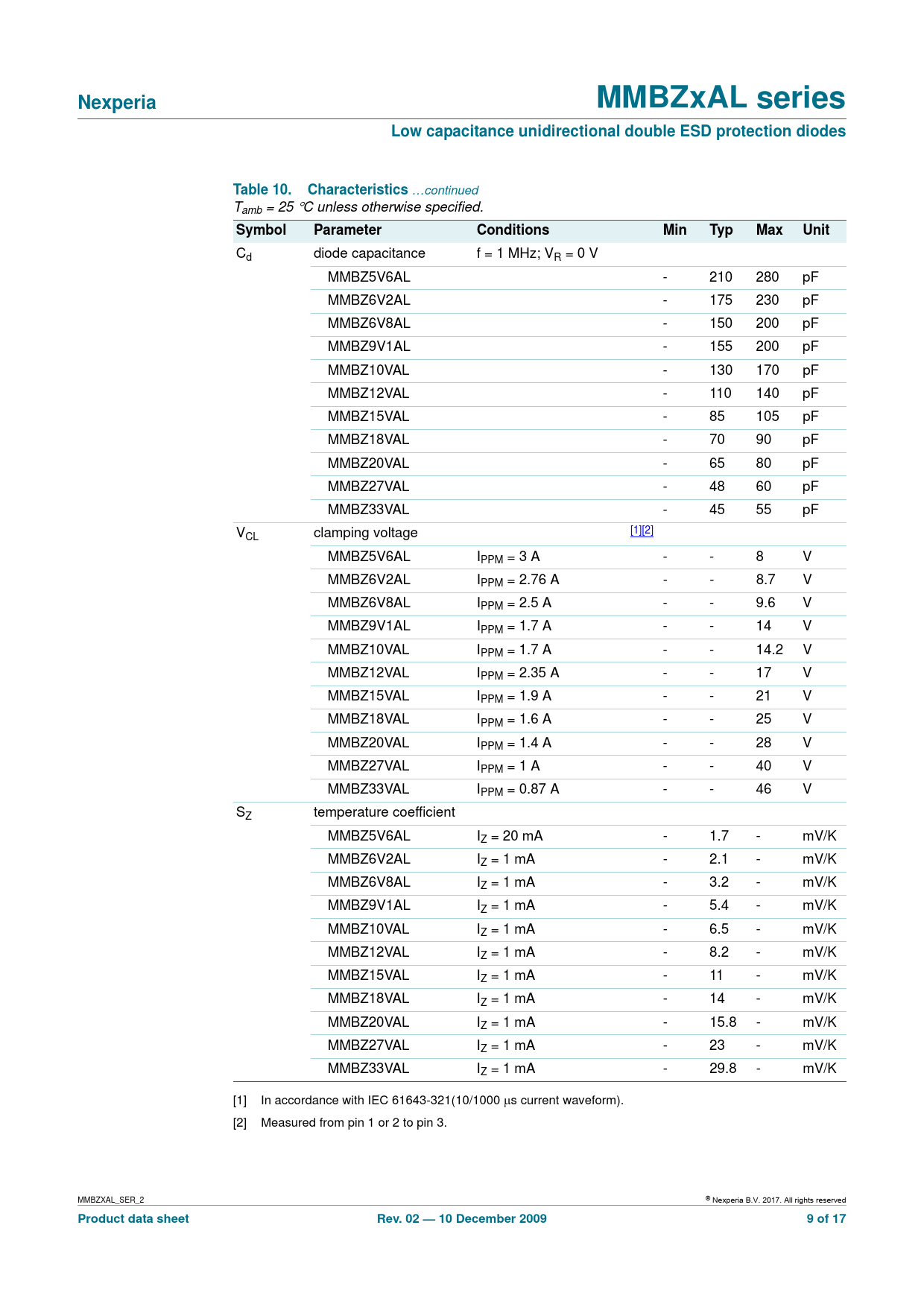

Nexperia MMBZxAL series Low capacitance unidirectional double ESD protection diodes Table 10. Characteristics
…continued Tamb = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
Cd diode capacitance f = 1 MHz; VR = 0 V MMBZ5V6AL - 210 280 pF MMBZ6V2AL - 175 230 pF MMBZ6V8AL - 150 200 pF MMBZ9V1AL - 155 200 pF MMBZ10VAL - 130 170 pF MMBZ12VAL - 110 140 pF MMBZ15VAL - 85 105 pF MMBZ18VAL - 70 90 pF MMBZ20VAL - 65 80 pF MMBZ27VAL - 48 60 pF MMBZ33VAL - 45 55 pF VCL clamping voltage [1][2] MMBZ5V6AL IPPM = 3 A - - 8 V MMBZ6V2AL IPPM = 2.76 A - - 8.7 V MMBZ6V8AL IPPM = 2.5 A - - 9.6 V MMBZ9V1AL IPPM = 1.7 A - - 14 V MMBZ10VAL IPPM = 1.7 A - - 14.2 V MMBZ12VAL IPPM = 2.35 A - - 17 V MMBZ15VAL IPPM = 1.9 A - - 21 V MMBZ18VAL IPPM = 1.6 A - - 25 V MMBZ20VAL IPPM = 1.4 A - - 28 V MMBZ27VAL IPPM = 1 A - - 40 V MMBZ33VAL IPPM = 0.87 A - - 46 V SZ temperature coefficient MMBZ5V6AL IZ = 20 mA - 1.7 - mV/K MMBZ6V2AL IZ = 1 mA - 2.1 - mV/K MMBZ6V8AL IZ = 1 mA - 3.2 - mV/K MMBZ9V1AL IZ = 1 mA - 5.4 - mV/K MMBZ10VAL IZ = 1 mA - 6.5 - mV/K MMBZ12VAL IZ = 1 mA - 8.2 - mV/K MMBZ15VAL IZ = 1 mA - 11 - mV/K MMBZ18VAL IZ = 1 mA - 14 - mV/K MMBZ20VAL IZ = 1 mA - 15.8 - mV/K MMBZ27VAL IZ = 1 mA - 23 - mV/K MMBZ33VAL IZ = 1 mA - 29.8 - mV/K [1] In accordance with IEC 61643-321(10/1000 μs current waveform). [2] Measured from pin 1 or 2 to pin 3. MMBZXAL_SER_2 © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 02 — 10 December 2009 9 of 17
