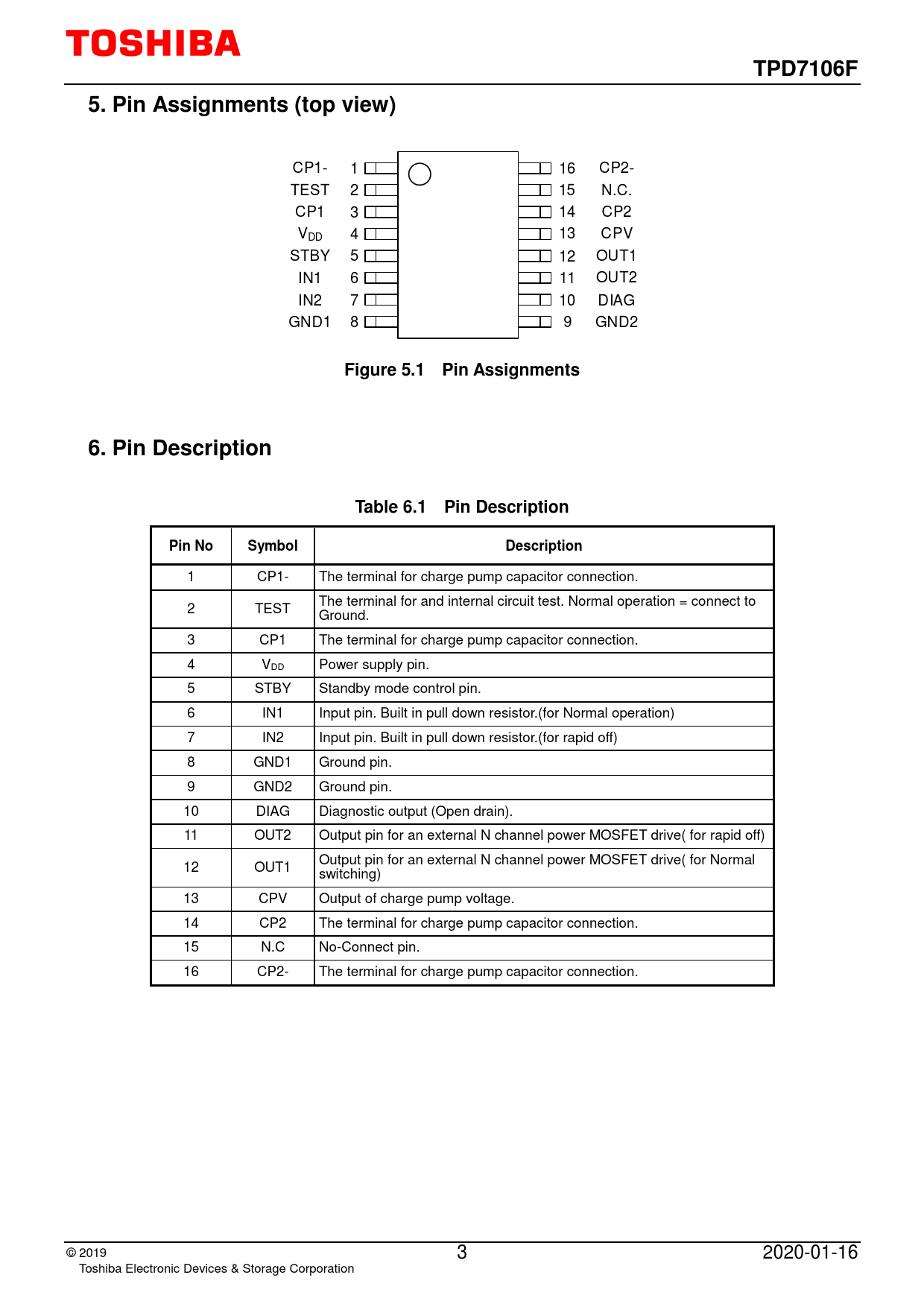

TPD7106F. 5. Pin Assignments (top view). Figure 5.1 Pin Assignments. 6. Pin Description. Table 6.1 Pin Description. Pin No. Symbol
Model Line for this Datasheet
Text Version of Document
TPD7106F 5. Pin Assignments (top view)
CP1- 1 16 CP2- TEST 2 15 N.C. CP1 3 14 CP2 VDD 4 13 CPV STBY 5 12 OUT1 IN1 6 11 OUT2 IN2 7 10 DIAG GND1 8 9 GND2
Figure 5.1 Pin Assignments 6. Pin Description Table 6.1 Pin Description Pin No Symbol Description
1 CP1- The terminal for charge pump capacitor connection. The terminal for and internal circuit test. Normal operation = connect to 2 TEST Ground. 3 CP1 The terminal for charge pump capacitor connection. 4 VDD Power supply pin. 5 STBY Standby mode control pin. 6 IN1 Input pin. Built in pull down resistor.(for Normal operation) 7 IN2 Input pin. Built in pull down resistor.(for rapid off) 8 GND1 Ground pin. 9 GND2 Ground pin. 10 DIAG Diagnostic output (Open drain). 11 OUT2 Output pin for an external N channel power MOSFET drive( for rapid off) Output pin for an external N channel power MOSFET drive( for Normal 12 OUT1 switching) 13 CPV Output of charge pump voltage. 14 CP2 The terminal for charge pump capacitor connection. 15 N.C No-Connect pin. 16 CP2- The terminal for charge pump capacitor connection. © 2 019 3 2020-01-16 Toshiba Electronic Devices & Storage Corporation
