Datasheet ADA4096-2, ADA4096-4 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 30 V, Micropower, Overvoltage Protection, Rail-to-Rail Input/Output Amplifiers |
| Pages / Page | 25 / 7 — Data Sheet. ADA4096-2/ADA4096-4. ABSOLUTE MAXIMUM RATINGS Table 5. … |
| Revision | G |
| File Format / Size | PDF / 640 Kb |
| Document Language | English |

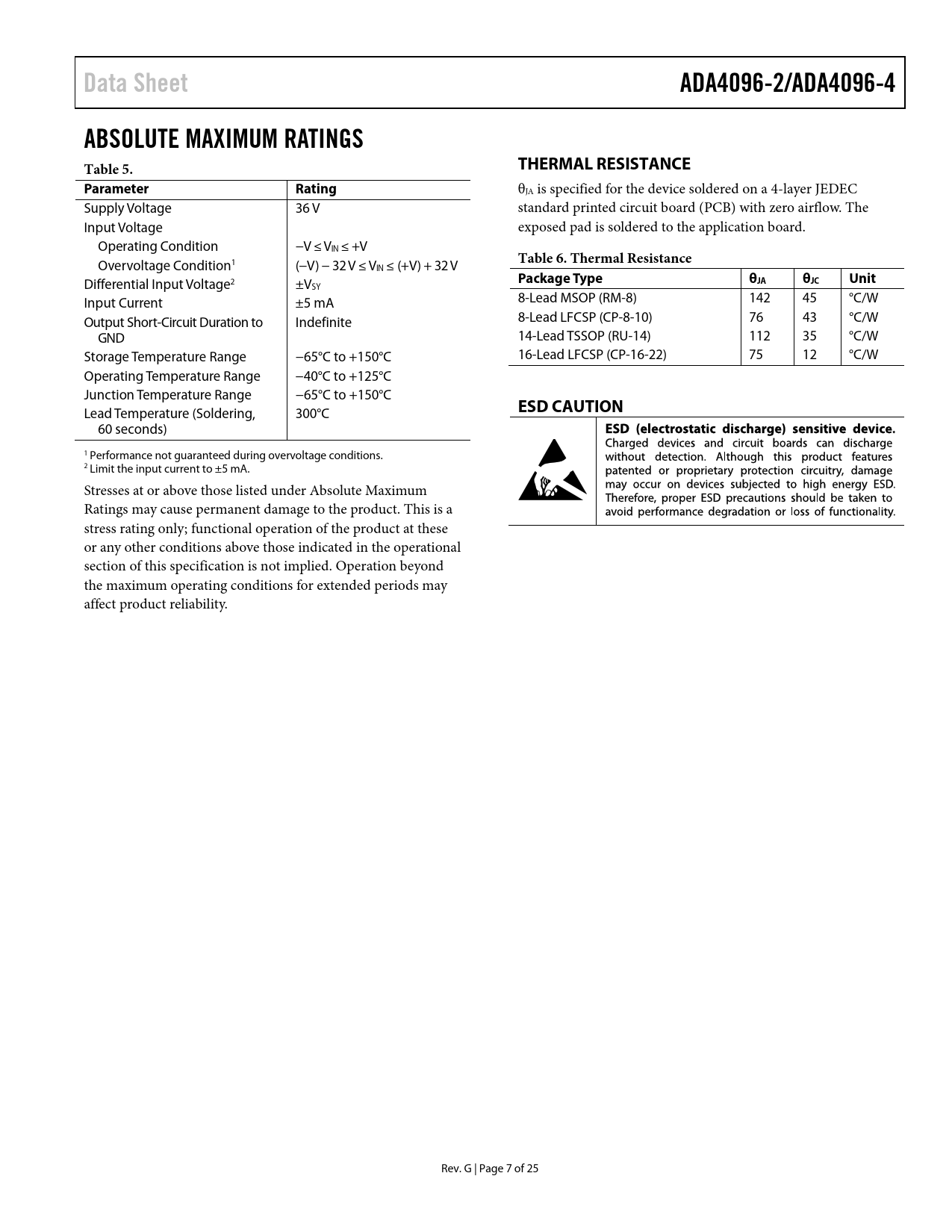

Data Sheet. ADA4096-2/ADA4096-4. ABSOLUTE MAXIMUM RATINGS Table 5. THERMAL RESISTANCE. Parameter. Rating
Model Line for this Datasheet
Text Version of Document
Data Sheet ADA4096-2/ADA4096-4 ABSOLUTE MAXIMUM RATINGS Table 5. THERMAL RESISTANCE Parameter Rating
θJA is specified for the device soldered on a 4-layer JEDEC Supply Voltage 36 V standard printed circuit board (PCB) with zero airflow. The Input Voltage exposed pad is soldered to the application board. Operating Condition −V ≤ VIN ≤ +V Overvoltage Condition1 (−V) − 32 V ≤ V
Table 6. Thermal Resistance
IN ≤ (+V) + 32 V Differential Input Voltage2 ±V
Package Type θJA θJC Unit
SY Input Current ±5 mA 8-Lead MSOP (RM-8) 142 45 °C/W Output Short-Circuit Duration to Indefinite 8-Lead LFCSP (CP-8-10) 76 43 °C/W GND 14-Lead TSSOP (RU-14) 112 35 °C/W Storage Temperature Range −65°C to +150°C 16-Lead LFCSP (CP-16-22) 75 12 °C/W Operating Temperature Range −40°C to +125°C Junction Temperature Range −65°C to +150°C Lead Temperature (Soldering, 300°C
