Datasheet AD706 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | Dual Picoampere Input Current Bipolar Op Amp |
| Pages / Page | 10 / 9 — AD706. Data Sheet. OUTLINE DIMENSIONS. 0.400 (10.16). 0.365 (9.27) 0.355 … |
| Revision | G |
| File Format / Size | PDF / 345 Kb |
| Document Language | English |

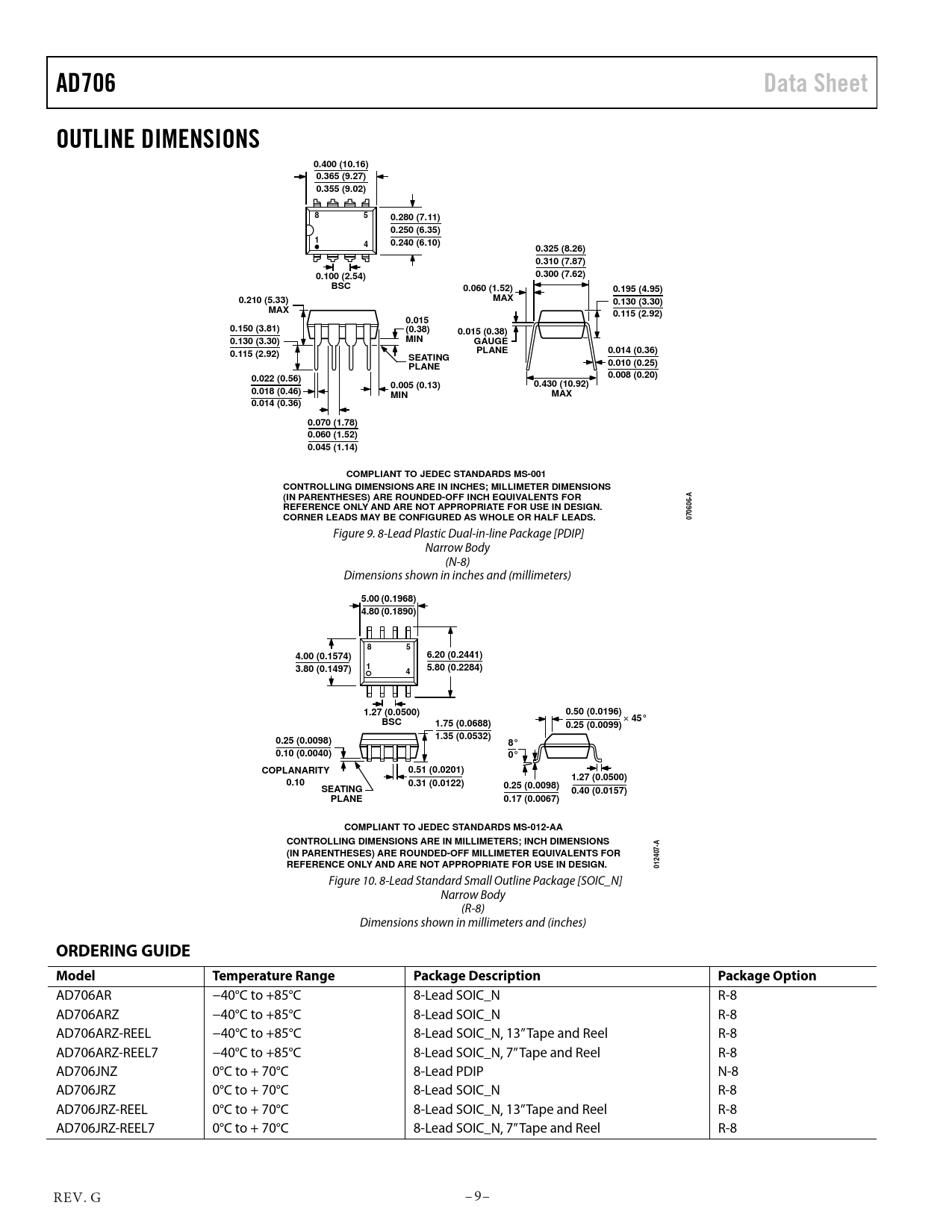

AD706. Data Sheet. OUTLINE DIMENSIONS. 0.400 (10.16). 0.365 (9.27) 0.355 (9.02). 0.280 (7.11) 0.250 (6.35). 0.240 (6.10)
Model Line for this Datasheet
Text Version of Document
AD706 Data Sheet OUTLINE DIMENSIONS 0.400 (10.16) 0.365 (9.27) 0.355 (9.02) 8 5 0.280 (7.11) 0.250 (6.35) 1 4 0.240 (6.10) 0.325 (8.26) 0.310 (7.87) 0.100 (2.54) 0.300 (7.62) BSC 0.060 (1.52) 0.195 (4.95) 0.210 (5.33) MAX 0.130 (3.30) MAX 0.115 (2.92) 0.015 0.150 (3.81) (0.38) 0.015 (0.38) MIN 0.130 (3.30) GAUGE 0.115 (2.92) PLANE 0.014 (0.36) SEATING PLANE 0.010 (0.25) 0.022 (0.56) 0.008 (0.20) 0.005 (0.13) 0.430 (10.92) 0.018 (0.46) MIN MAX 0.014 (0.36) 0.070 (1.78) 0.060 (1.52) 0.045 (1.14) COMPLIANT TO JEDEC STANDARDS MS-001 CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS (IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR A 6- REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 0 06 CORNER LEADS MAY BE CONFIGURED AS WHOLE OR HALF LEADS. 07
Figure 9. 8-Lead Plastic Dual-in-line Package [PDIP] Narrow Body (N-8) Dimensions shown in inches and (millimeters)
5.00 (0.1968) 4.80 (0.1890) 8 5 4.00 (0.1574) 6.20 (0.2441) 1 3.80 (0.1497) 5.80 (0.2284) 4 1.27 (0.0500) 0.50 (0.0196) 45° BSC 1.75 (0.0688) 0.25 (0.0099) 1.35 (0.0532) 0.25 (0.0098) 8° 0.10 (0.0040) 0° COPLANARITY 0.51 (0.0201) 1.27 (0.0500) 0.10 0.31 (0.0122) 0.25 (0.0098) SEATING 0.40 (0.0157) PLANE 0.17 (0.0067) COMPLIANT TO JEDEC STANDARDS MS-012-AA CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS A (IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR 07- REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 124 0
Figure 10. 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8) Dimensions shown in millimeters and (inches)
ORDERING GUIDE Model Temperature Range Package Description Package Option
AD706AR −40°C to +85°C 8-Lead SOIC_N R-8 AD706ARZ −40°C to +85°C 8-Lead SOIC_N R-8 AD706ARZ-REEL −40°C to +85°C 8-Lead SOIC_N, 13” Tape and Reel R-8 AD706ARZ-REEL7 −40°C to +85°C 8-Lead SOIC_N, 7” Tape and Reel R-8 AD706JNZ 0°C to + 70°C 8-Lead PDIP N-8 AD706JRZ 0°C to + 70°C 8-Lead SOIC_N R-8 AD706JRZ-REEL 0°C to + 70°C 8-Lead SOIC_N, 13”Tape and Reel R-8 AD706JRZ-REEL7 0°C to + 70°C 8-Lead SOIC_N, 7” Tape and Reel R-8 REV. G – 9– Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS METALIZATION PHOTOGRAPH TYPICAL PERFORMANCE CHARACTERISTICS 1 HZ, 4-POLE, ACTIVE FILTER OUTLINE DIMENSIONS ORDERING GUIDE REVISION HISTORY
