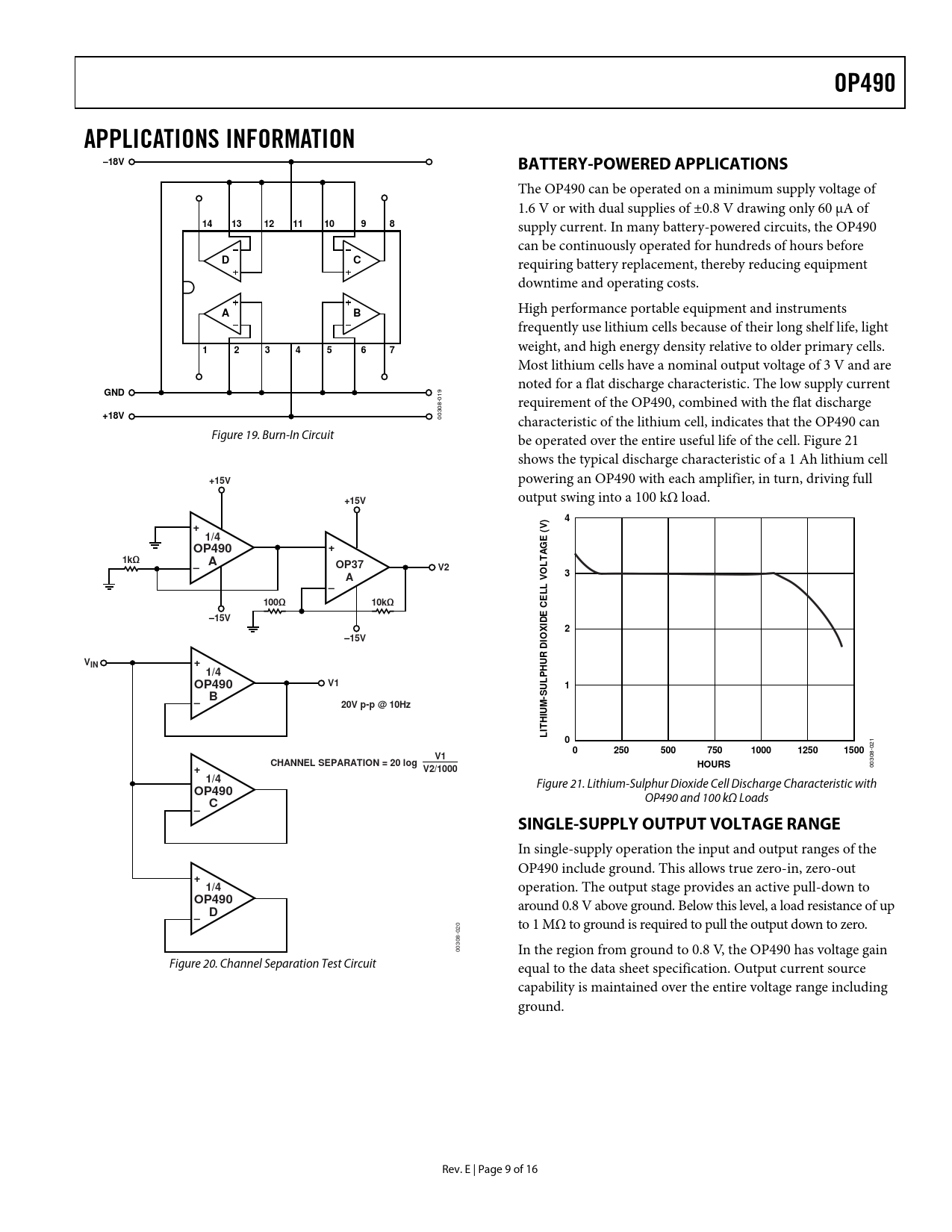

OP490 APPLICATIONS INFORMATION –18V BATTERY-POWERED APPLICATIONS
The OP490 can be operated on a minimum supply voltage of 1.6 V or with dual supplies of ±0.8 V drawing only 60 μA of
14 13 12 11 10 9 8
supply current. In many battery-powered circuits, the OP490 can be continuously operated for hundreds of hours before
D C
requiring battery replacement, thereby reducing equipment downtime and operating costs.
A B
High performance portable equipment and instruments frequently use lithium cells because of their long shelf life, light
1 2 3 4 5 6 7
weight, and high energy density relative to older primary cells. Most lithium cells have a nominal output voltage of 3 V and are noted for a flat discharge characteristic. The low supply current 9
GND
01 8- requirement of the OP490, combined with the flat discharge 30
+18V
00 characteristic of the lithium cell, indicates that the OP490 can Figure 19. Burn-In Circuit be operated over the entire useful life of the cell. Figure 21 shows the typical discharge characteristic of a 1 Ah lithium cell
+15V
powering an OP490 with each amplifier, in turn, driving full
+15V
output swing into a 100 kΩ load.
