HMC438MS8G / 438MS8GE
v07.1019

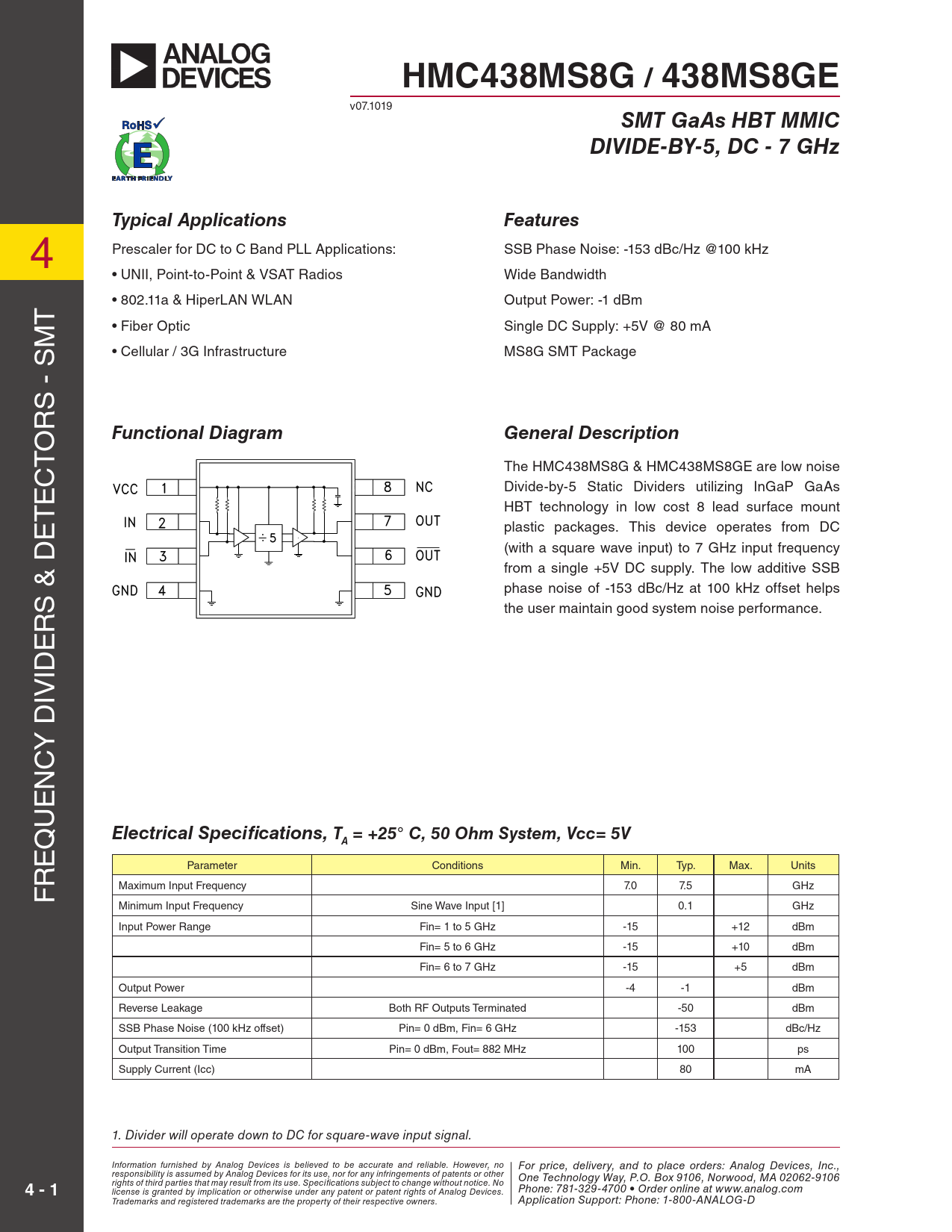

SMT GaAs HBT MMIC DIVIDE-BY-5, DC - 7 GHz Typical Applications Features
4 Prescaler for DC to C Band PLL Applications: SSB Phase Noise: -153 dBc/Hz @100 kHz 4 • UNII, Point-to-Point & VSAT Radios Wide Bandwidth T • 802.11a & HiperLAN WLAN Output Power: -1 dBm • Fiber Optic Single DC Supply: +5V @ 80 mA T M M • Cel ular / 3G Infrastructure MS8G SMT Package S - S S - S R R O
Functional Diagram General Description
O T The HMC438MS8G & HMC438MS8GE are low noise T C Divide-by-5 Static Dividers utilizing InGaP GaAs C E E T HBT technology in low cost 8 lead surface mount T E plastic packages. This device operates from DC E (with a square wave input) to 7 GHz input frequency from a single +5V DC supply. The low additive SSB S & D phase noise of -153 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance. S & D R R E E ID ID IV IV Y D Y D C C N N E E U U Q
Electrical Specifications, T = +25° C, 50 Ohm System, Vcc= 5V A
Q E Parameter Conditions Min. Typ. Max. Units E R Maximum Input Frequency 7.0 7.5 GHz R F Minimum Input Frequency Sine Wave Input [1] 0.1 GHz F Input Power Range Fin= 1 to 5 GHz -15 +12 dBm Fin= 5 to 6 GHz -15 +10 dBm Fin= 6 to 7 GHz -15 +5 dBm Output Power -4 -1 dBm Reverse Leakage Both RF Outputs Terminated -50 dBm SSB Phase Noise (100 kHz offset) Pin= 0 dBm, Fin= 6 GHz -153 dBc/Hz Output Transition Time Pin= 0 dBm, Fout= 882 MHz 100 ps Supply Current (Icc) 80 mA 1. Divider will operate down to DC for square-wave input signal. I F nf o or r p matiroic n e fu, d rnise h leiv d e b ry y , a Ana n lo d t g Do p evic leac s i e o s belrid eve e rs d t : A o b n e a a lco c g D urat e e av n ic d e re s li , I abl n e c . H , O owe n vee T r, n e o chn F o o lo r pg ri y W ce a , d y e , P liv . e O ry . B , a o n x 9 d t 10 o pl 6 a , N c o e o r r w deo r o s d, M : AnalA 0 o 2 g D 0 e 6 vi 2 c -e9 s 10 , I 6 nc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
4 - 1
rights of third parties that may result from its use. S P pe h ci o ficn ate i : 78 ons s 1 ub - j 3 ec 2 t t 9- o c 4 h 7 an0 g 0 • O e withourd t n e ot r o ice n . N lin o e at www.analog.com license is granted by implication or otherwise under an A y pa p te p n li t oca r p taito e n S nt rig u ht pp s o o f A rnta: P lo h g D o e n vi e ce: 1 s. -80 P 0 ho-A neNA : 7 L 81 O -3 G 2 -9D -4700 • Order online at www.analog.com Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
