Datasheet HMC363S8G, 363S8GE (Analog Devices)
| Manufacturer | Analog Devices |
| Description | SMT SMT GaAs HBT MMIC DIVIDE-BY-8, DC - 12 GHz |
| Pages / Page | 6 / 1 — HMC363S8G / 363S8GE. SMT GaAs HBT MMIC. DIVIDE-BY-8, DC - 12 GHz. Typical … |
| File Format / Size | PDF / 548 Kb |
| Document Language | English |
HMC363S8G / 363S8GE. SMT GaAs HBT MMIC. DIVIDE-BY-8, DC - 12 GHz. Typical Applications. Features. Functional Diagram
Model Line for this Datasheet
Text Version of Document
HMC363S8G / 363S8GE
v06.1119

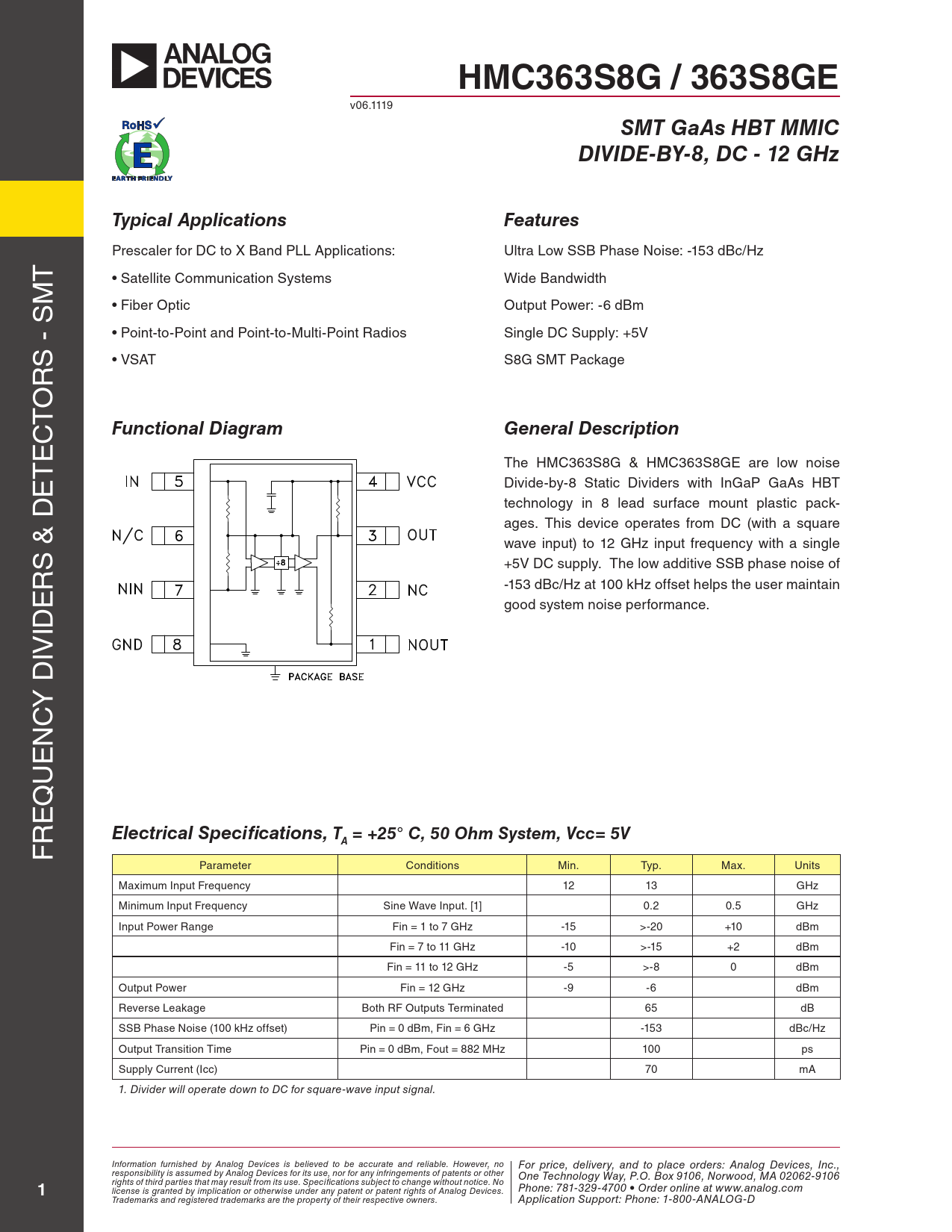

SMT GaAs HBT MMIC DIVIDE-BY-8, DC - 12 GHz Typical Applications Features
Prescaler for Dc to X Band PLL Applications: ultra Low ssB Phase noise: -153 dBc/Hz t • satel ite communication systems Wide Bandwidth M s • Fiber optic output Power: -6 dBm • Point-to-Point and Point-to-Multi-Point radios single Dc supply: +5v s - • vsAt s8G sMt Package r o t c
Functional Diagram General Description
e t the HMc363s8G & HMc363s8Ge are low noise e Divide-by-8 static Dividers with inGaP GaAs HBt technology in 8 lead surface mount plastic pack- ages. this device operates from Dc (with a square wave input) to 12 GHz input frequency with a single s & D +5v Dc supply. the low additive ssB phase noise of r e -153 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance. iD iv y D c n e u q e r
Electrical Specifications, T = +25° C, 50 Ohm System, Vcc= 5V
F
A
Parameter conditions Min. typ. Max. units Maximum input Frequency 12 13 GHz Minimum input Frequency sine Wave input. [1] 0.2 0.5 GHz input Power range Fin = 1 to 7 GHz -15 >-20 +10 dBm Fin = 7 to 11 GHz -10 >-15 +2 dBm Fin = 11 to 12 GHz -5 >-8 0 dBm output Power Fin = 12 GHz -9 -6 dBm reverse Leakage Both rF outputs terminated 65 dB ssB Phase noise (100 kHz offset) Pin = 0 dBm, Fin = 6 GHz -153 dBc/Hz output transition time Pin = 0 dBm, Fout = 882 MHz 100 ps supply current (icc) 70 mA 1. Divider will operate down to DC for square-wave input signal. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D Document Outline Typical Applications Features Functional Diagram General Description Electrical Specifications, TA = +25° C, 50 Ohm System, Vcc= 5V Operating Chracteristics Input Sensitivity Window, T= 25 °C Input Sensitivity Window vs. Temperature Output Power vs. Temperature SSB Phase Noise Performance, Pin= 0 dBm, T= 25 °C Output Harmonic Content, Pin= 0 dBm, T= 25 °C Reverse Leakage, Pin= 0 dBm, T= 25 °C Output Voltage Waveform, Pin= 0 dBm, Fout= 882 MHz, T= 25 °C Absolute Maximum Ratings Typical Supply Current vs. Vcc Outline Drawing Package Information Pin Description Application Circuit Evaluation PCB List of Materials for Evaluation PCB 104631 [1]
