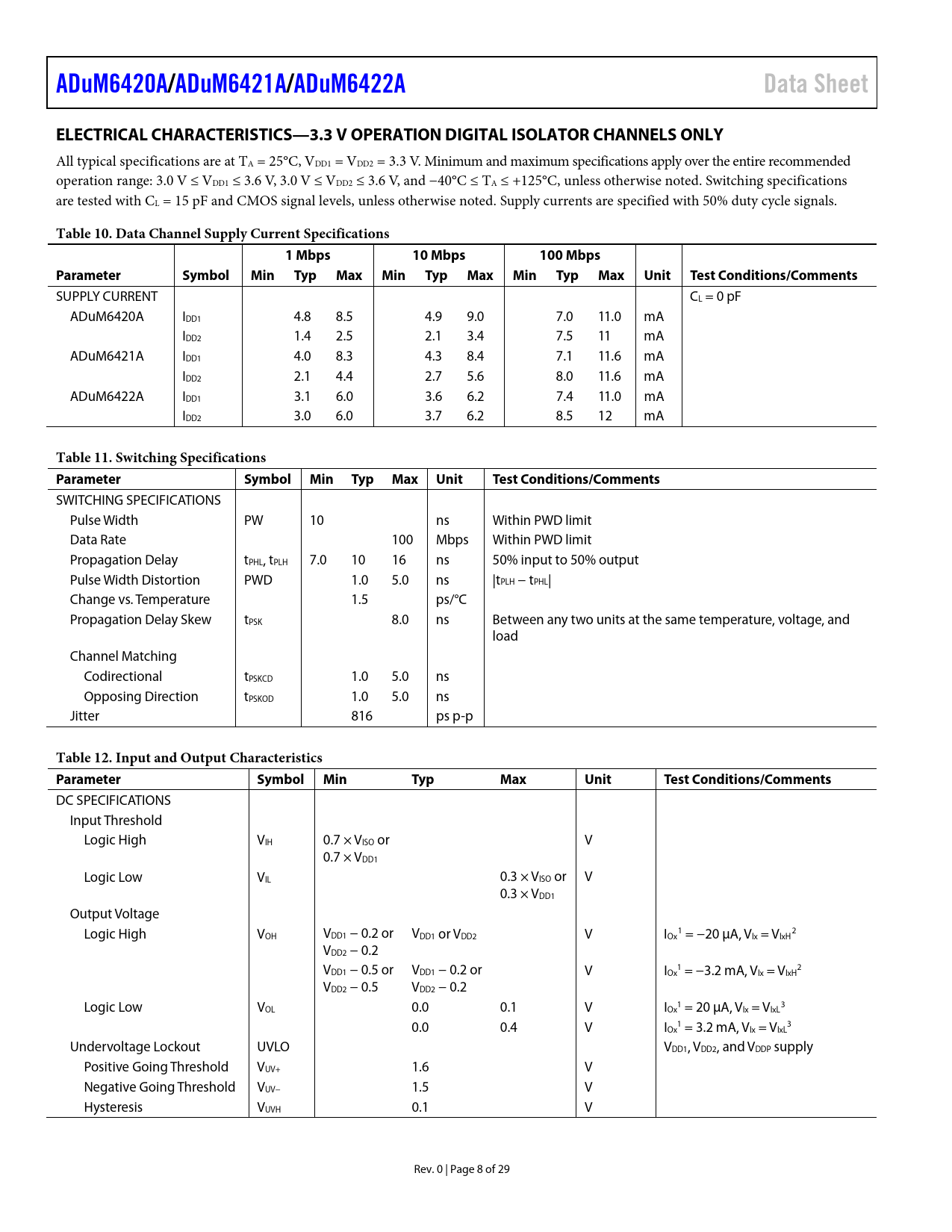

ADuM6420A/ ADuM6421A /ADuM6422A Data Sheet ELECTRICAL CHARACTERISTICS—3.3 V OPERATION DIGITAL ISOLATOR CHANNELS ONLY
All typical specifications are at TA = 25°C, VDD1 = VDD2 = 3.3 V. Minimum and maximum specifications apply over the entire recommended operation range: 3.0 V ≤ VDD1 ≤ 3.6 V, 3.0 V ≤ VDD2 ≤ 3.6 V, and −40°C ≤ TA ≤ +125°C, unless otherwise noted. Switching specifications are tested with CL = 15 pF and CMOS signal levels, unless otherwise noted. Supply currents are specified with 50% duty cycle signals.
Table 10. Data Channel Supply Current Specifications 1 Mbps 10 Mbps 100 Mbps Parameter Symbol Min Typ Max Min Typ Max Min Typ Max Unit Test Conditions/Comments
SUPPLY CURRENT CL = 0 pF ADuM6420A IDD1 4.8 8.5 4.9 9.0 7.0 11.0 mA IDD2 1.4 2.5 2.1 3.4 7.5 11 mA ADuM6421A IDD1 4.0 8.3 4.3 8.4 7.1 11.6 mA IDD2 2.1 4.4 2.7 5.6 8.0 11.6 mA ADuM6422A IDD1 3.1 6.0 3.6 6.2 7.4 11.0 mA IDD2 3.0 6.0 3.7 6.2 8.5 12 mA
Table 11. Switching Specifications Parameter Symbol Min Typ Max Unit Test Conditions/Comments
SWITCHING SPECIFICATIONS Pulse Width PW 10 ns Within PWD limit Data Rate 100 Mbps Within PWD limit Propagation Delay tPHL, tPLH 7.0 10 16 ns 50% input to 50% output Pulse Width Distortion PWD 1.0 5.0 ns |tPLH − tPHL| Change vs. Temperature 1.5 ps/°C Propagation Delay Skew tPSK 8.0 ns Between any two units at the same temperature, voltage, and load Channel Matching Codirectional tPSKCD 1.0 5.0 ns Opposing Direction tPSKOD 1.0 5.0 ns Jitter 816 ps p-p
Table 12. Input and Output Characteristics Parameter Symbol Min Typ Max Unit Test Conditions/Comments
DC SPECIFICATIONS Input Threshold Logic High VIH 0.7 × VISO or V 0.7 × VDD1 Logic Low VIL 0.3 × VISO or V 0.3 × VDD1 Output Voltage Logic High V 1 2 OH VDD1 − 0.2 or VDD1 or VDD2 V IOx = −20 µA, VIx = VIxH VDD2 − 0.2 V 1 2 DD1 − 0.5 or VDD1 − 0.2 or V IOx = −3.2 mA, VIx = VIxH VDD2 − 0.5 VDD2 − 0.2 Logic Low V 1 3 OL 0.0 0.1 V IOx = 20 µA, VIx = VIxL 0.0 0.4 V I 1 3 Ox = 3.2 mA, VIx = VIxL Undervoltage Lockout UVLO VDD1, VDD2, and VDDP supply Positive Going Threshold VUV+ 1.6 V Negative Going Threshold VUV− 1.5 V Hysteresis VUVH 0.1 V Rev. 0 | Page 8 of 29 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/5 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—3.3 V OPERATION DIGITAL ISOLATOR CHANNELS ONLY ELECTRICAL CHARACTERISTICS—2.5 V OPERATION DIGITAL ISOLATOR CHANNELS ONLY ELECTRICAL CHARACTERISTICS—1.8 V OPERATION DIGITAL ISOLATOR CHANNELS ONLY PACKAGE CHARACTERISTICS REGULATORY APPROVALS INSULATION AND SAFETY RELATED SPECIFICATIONS DIN V VDE V 0884-11 INSULATION CHARACTERISTICS RECOMMENDED OPERATING CONDITIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLE TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION APPLICATIONS INFORMATION PCB LAYOUT THERMAL ANALYSIS PROPAGATION DELAY RELATED PARAMETERS EMI CONSIDERATIONS POWER CONSUMPTION INSULATION LIFETIME Surface Tracking Insulation Wear Out Calculation and Use of Parameters Example OUTLINE DIMENSIONS ORDERING GUIDE
