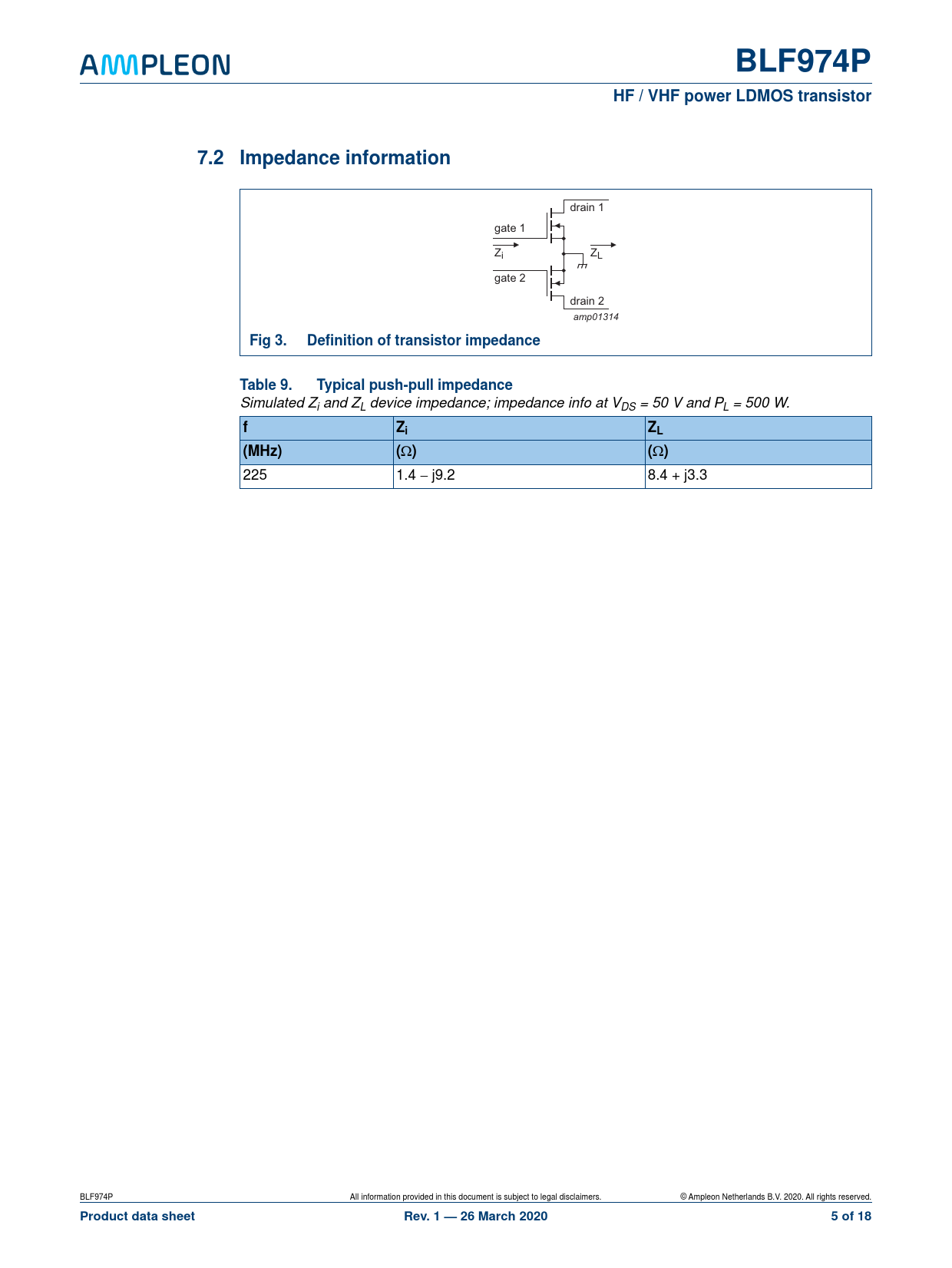

BLF974P. HF / VHF power LDMOS transistor. 7.2 Impedance information. Fig 3. Definition of transistor impedance. Table 9
Model Line for this Datasheet
Text Version of Document
BLF974P HF / VHF power LDMOS transistor 7.2 Impedance information
drain 1 gate 1 Z Z i L gate 2 drain 2 amp01314
Fig 3. Definition of transistor impedance Table 9. Typical push-pull impedance
Simulated Zi and ZL device impedance; impedance info at VDS = 50 V and PL = 500 W.
f Zi ZL (MHz) ( ) ( )
225 1.4 j9.2 8.4 + j3.3 BLF974P All information provided in this document is subject to legal disclaimers. © Ampleon Netherlands B.V. 2020. All rights reserved.
Product data sheet Rev. 1 — 26 March 2020 5 of 18
