BLF978P HF / VHF power LDMOS transistor
amp01290 amp01291 81.6 24.8 ηD Gp G (%) (%) (%) (dB) (dB) (dB) 81.2 24.6 80.8 24.4 80.4 24.2 80 24 79.6 79.2 23.8 0 20 40 60 80 100 0 20 40 60 80 100 T (°C) T (°C) VDS = 50 V; IDq = 2 50 mA; f = 225 MHz; at PL(2dB). VDS = 50 V; IDq = 2 50 mA; f = 225 MHz; at PL(2dB).

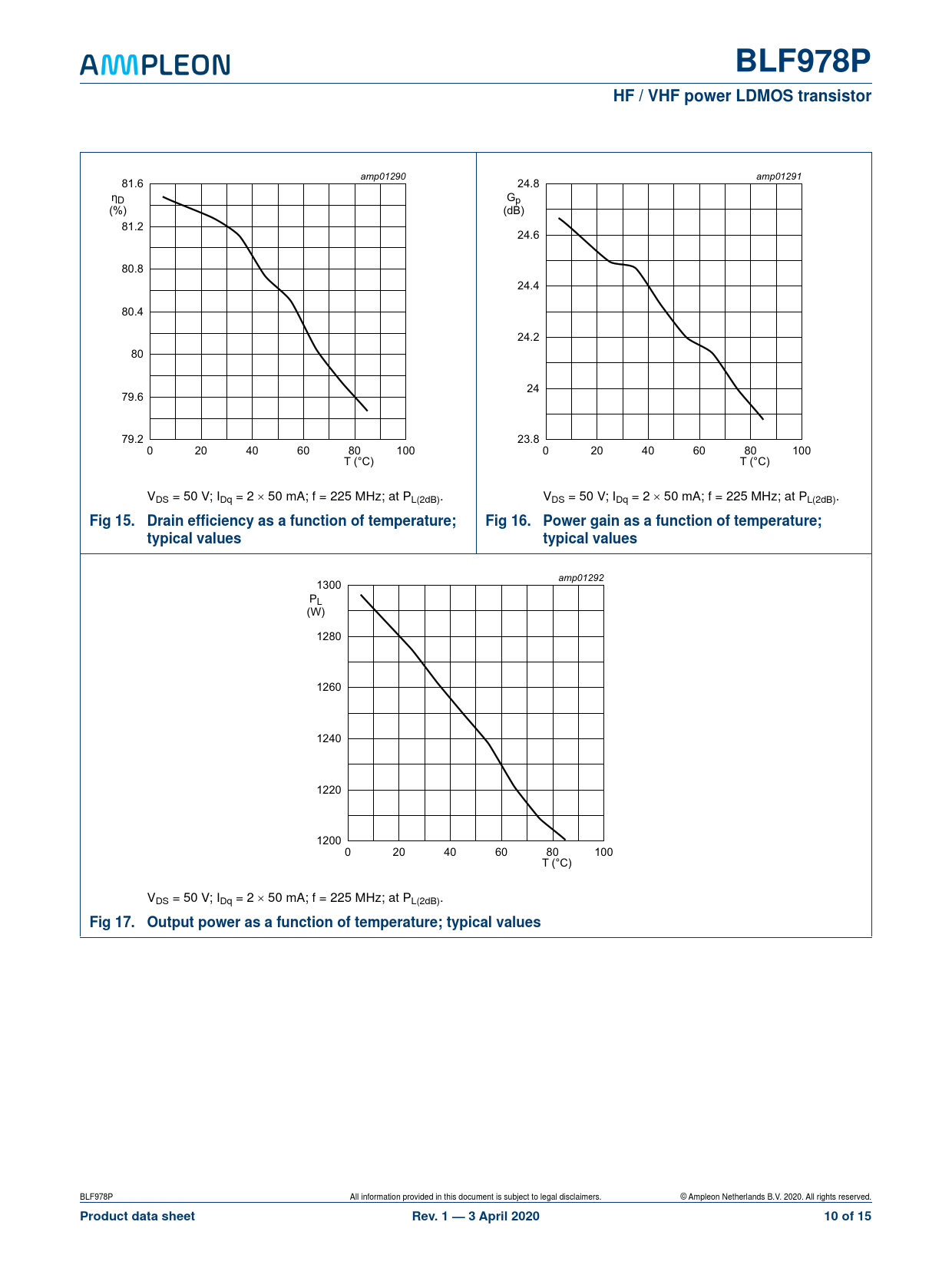

Fig 15. Drain efficiency as a function of temperature; Fig 16. Power gain as a function of temperature; typical values typical values
amp01292 1300 PL P (W) (W) (W) 1280 1260 1240 1220 1200 0 20 40 60 80 100 T (°C) VDS = 50 V; IDq = 2 50 mA; f = 225 MHz; at PL(2dB).
Fig 17. Output power as a function of temperature; typical values
