Datasheet AP64350Q (Diodes) - 9
| Manufacturer | Diodes |
| Description | Automotive-compliant, 40V, 3.5A Synchronous Buck with Programmable Frequency |
| Pages / Page | 26 / 9 — AP64350Q. Typical Performance Characteristics. VOUT (200mV/div). IOUT … |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
AP64350Q. Typical Performance Characteristics. VOUT (200mV/div). IOUT (500mA/div). IOUT (2A/div). 1ms/div
Model Line for this Datasheet
Text Version of Document

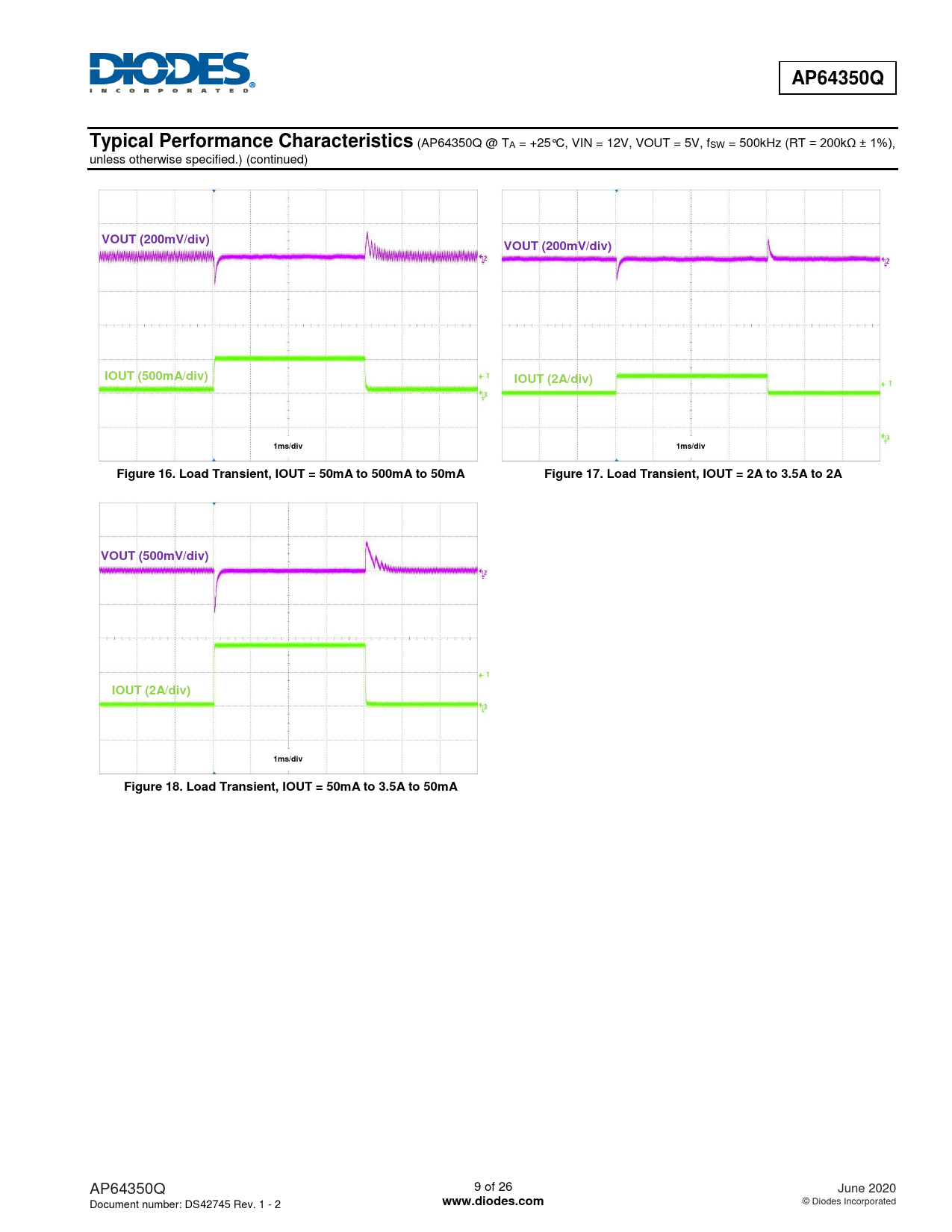

AP64350Q Typical Performance Characteristics
(AP64350Q @ TA = +25°C, VIN = 12V, VOUT = 5V, fSW = 500kHz (RT = 200kΩ ± 1%), unless otherwise specified.) (continued)
VOUT (200mV/div) VOUT (200mV/div) IOUT (500mA/div) IOUT (2A/div) 1ms/div 1ms/div Figure 16. Load Transient, IOUT = 50mA to 500mA to 50mA Figure 17. Load Transient, IOUT = 2A to 3.5A to 2A VOUT (500mV/div) IOUT (2A/div) 1ms/div Figure 18. Load Transient, IOUT = 50mA to 3.5A to 50mA
AP64350Q 9 of 26 June 2020 Document number: DS42745 Rev. 1 - 2
www.diodes.com
© Diodes Incorporated
(AP64350Q @ TA = +25°C, VIN = 12V, VOUT = 5V, fSW = 500kHz (RT = 200kΩ ± 1%), unless otherwise specified.) (continued)
VOUT (200mV/div) VOUT (200mV/div) IOUT (500mA/div) IOUT (2A/div) 1ms/div 1ms/div Figure 16. Load Transient, IOUT = 50mA to 500mA to 50mA Figure 17. Load Transient, IOUT = 2A to 3.5A to 2A VOUT (500mV/div) IOUT (2A/div) 1ms/div Figure 18. Load Transient, IOUT = 50mA to 3.5A to 50mA
AP64350Q 9 of 26 June 2020 Document number: DS42745 Rev. 1 - 2
