Datasheet PLA172P (IXYS) - 2
| Manufacturer | IXYS |
| Description | 800V Normally-Open Single-Pole 6-Pin OptoMOS Relay |
| Pages / Page | 6 / 2 — PLA172P. Absolute Maximum Ratings (@ 25ºC Unless otherwise noted). … |
| File Format / Size | PDF / 148 Kb |
| Document Language | English |
PLA172P. Absolute Maximum Ratings (@ 25ºC Unless otherwise noted). Parameter. Ratings. Units. Electrical Characteristics
Model Line for this Datasheet
Text Version of Document
INTEGRATED CIRCUITS DIVISION

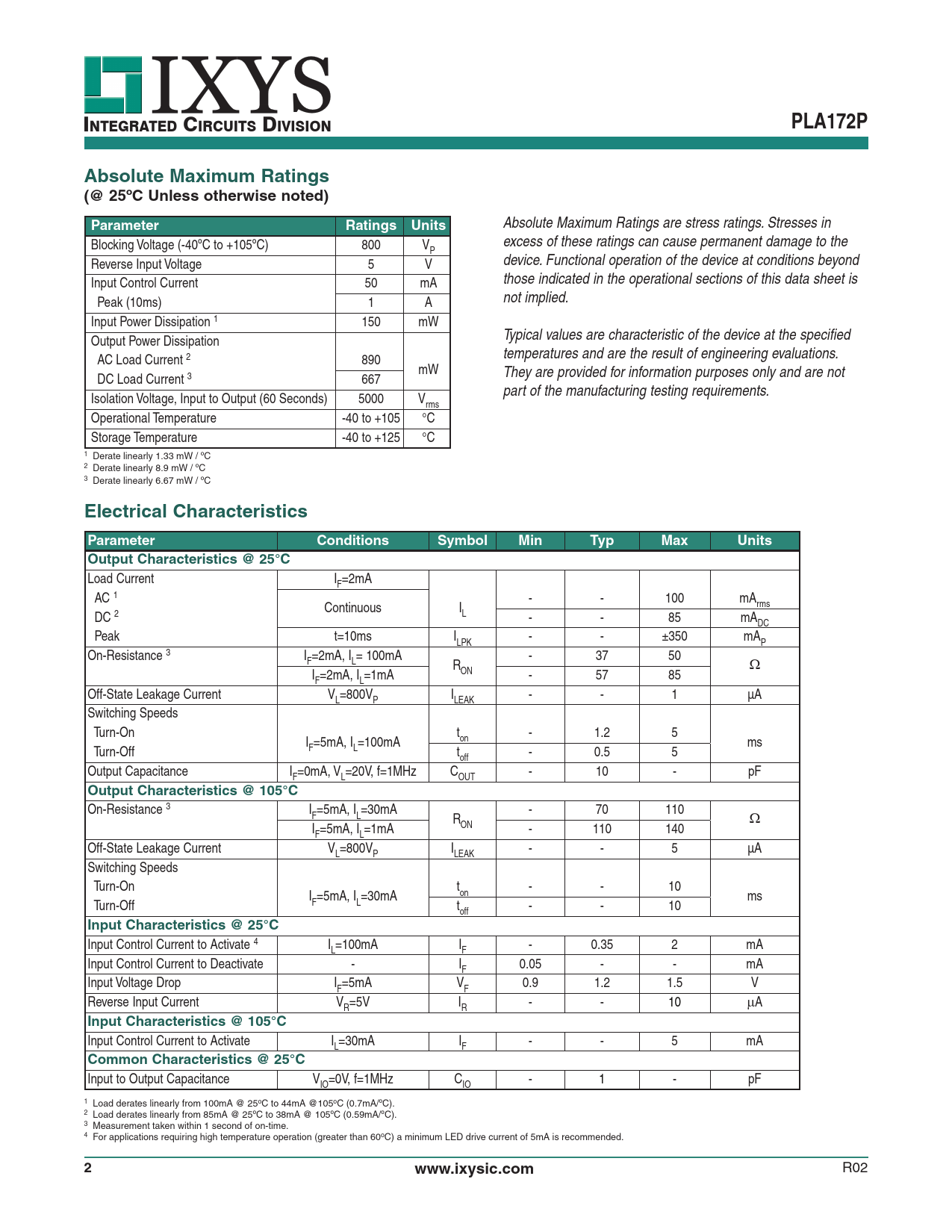

PLA172P Absolute Maximum Ratings (@ 25ºC Unless otherwise noted) Parameter Ratings Units
Absolute Maximum Ratings are stress ratings. Stresses in Blocking Voltage (-40ºC to +105ºC) 800 V excess of these ratings can cause permanent damage to the P Reverse Input Voltage 5 V device. Functional operation of the device at conditions beyond Input Control Current 50 mA those indicated in the operational sections of this data sheet is Peak (10ms) 1 A not implied. Input Power Dissipation 1 150 mW Output Power Dissipation Typical values are characteristic of the device at the specified temperatures and are the result of engineering evaluations. AC Load Current 2 890 mW They are provided for information purposes only and are not DC Load Current 3 667 part of the manufacturing testing requirements. Isolation Voltage, Input to Output (60 Seconds) 5000 Vrms Operational Temperature -40 to +105 °C Storage Temperature -40 to +125 °C 1 Derate linearly 1.33 mW / ºC 2 Derate linearly 8.9 mW / ºC 3 Derate linearly 6.67 mW / ºC
Electrical Characteristics Parameter Conditions Symbol Min Typ Max Units Output Characteristics @ 25°C
Load Current I =2mA F AC 1 - - 100 mA Continuous I rms L DC 2 - - 85 mADC Peak t=10ms I - - ±350 mA LPK P On-Resistance 3 I =2mA, I = 100mA - 37 50 F L R ON I =2mA, I =1mA - 57 85 F L Off-State Leakage Current V =800V I - - 1 µA L P LEAK Switching Speeds Turn-On t - 1.2 5 I =5mA, I =100mA on ms F L Turn-Off t - 0.5 5 off Output Capacitance I =0mA, V =20V, f=1MHz C - 10 - pF F L OUT
Output Characteristics @ 105°C
On-Resistance 3 I =5mA, I =30mA - 70 110 F L R ON I =5mA, I =1mA - 110 140 F L Off-State Leakage Current V =800V I - - 5 µA L P LEAK Switching Speeds Turn-On t - - 10 I =5mA, I =30mA on ms F L Turn-Off t - - 10 off
Input Characteristics @ 25°C
Input Control Current to Activate 4 I =100mA I - 0.35 2 mA L F Input Control Current to Deactivate - I 0.05 - - mA F Input Voltage Drop I =5mA V 0.9 1.2 1.5 V F F Reverse Input Current V =5V I - - 10 A R R
Input Characteristics @ 105°C
Input Control Current to Activate I =30mA I - - 5 mA L F
Common Characteristics @ 25°C
Input to Output Capacitance V =0V, f=1MHz C - 1 - pF IO IO 1 Load derates linearly from 100mA @ 25oC to 44mA @105oC (0.7mA/ºC). 2 Load derates linearly from 85mA @ 25ºC to 38mA @ 105ºC (0.59mA/ºC). 3 Measurement taken within 1 second of on-time. 4 For applications requiring high temperature operation (greater than 60oC) a minimum LED drive current of 5mA is recommended.
