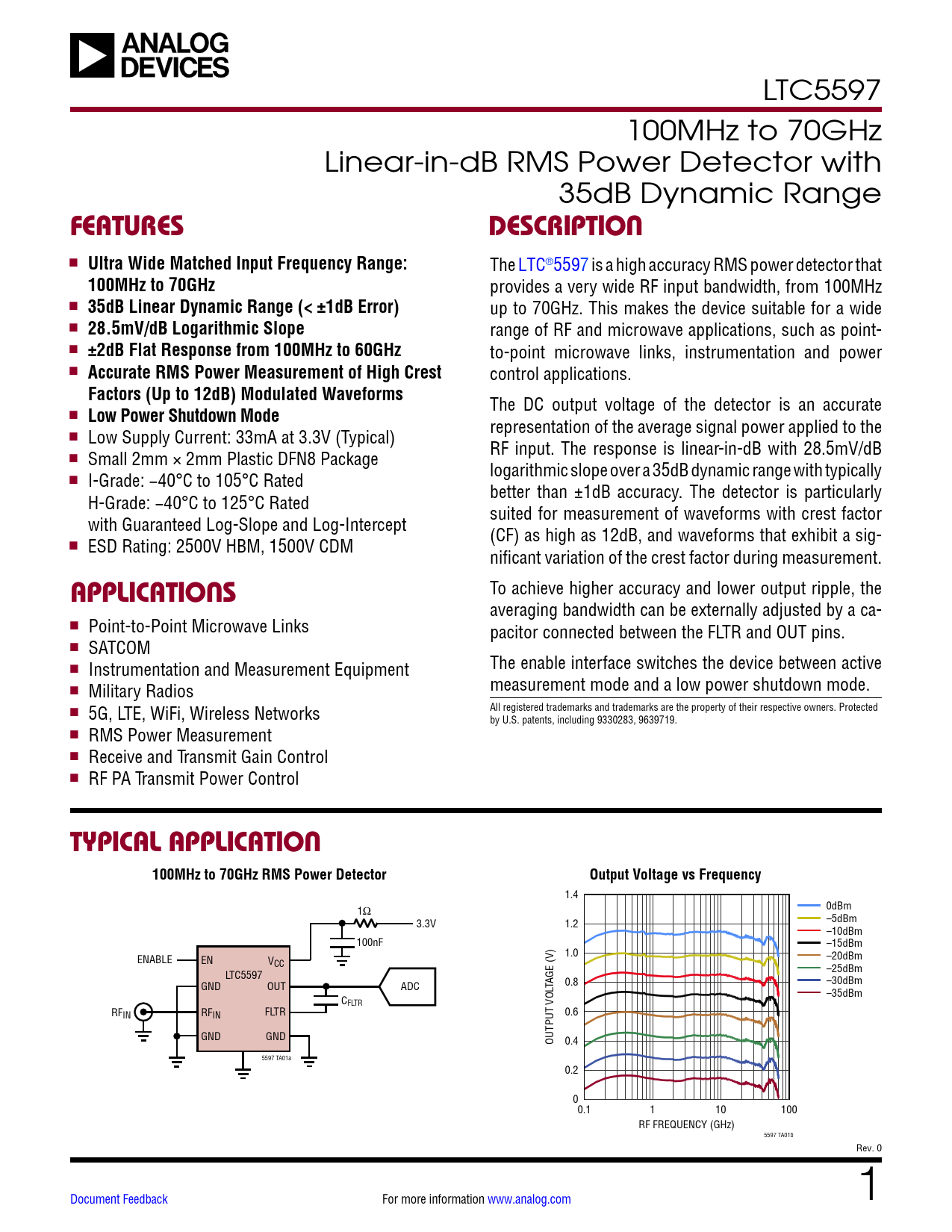

LTC5597 100MHz to 70GHz Linear-in-dB RMS Power Detector with 35dB Dynamic Range
FEATURES DESCRIPTION
n
Ultra Wide Matched Input Frequency Range:
The LTC®5597 is a high accuracy RMS power detector that
100MHz to 70GHz
provides a very wide RF input bandwidth, from 100MHz n
35dB Linear Dynamic Range (< ±1dB Error)
up to 70GHz. This makes the device suitable for a wide n
28.5mV/dB Logarithmic Slope
range of RF and microwave applications, such as point- n
±2dB Flat Response from 100MHz to 60GHz
to-point microwave links, instrumentation and power n
Accurate RMS Power Measurement of High Crest
control applications.
Factors (Up to 12dB) Modulated Waveforms
The DC output voltage of the detector is an accurate n
Low Power Shutdown Mode
representation of the average signal power applied to the n Low Supply Current: 33mA at 3.3V (Typical) RF input. The response is linear-in-dB with 28.5mV/dB n Small 2mm × 2mm Plastic DFN8 Package logarithmic slope over a 35dB dynamic range with typically n I-Grade: −40°C to 105°C Rated better than ±1dB accuracy. The detector is particularly H-Grade: −40°C to 125°C Rated suited for measurement of waveforms with crest factor with Guaranteed Log-Slope and Log-Intercept (CF) as high as 12dB, and waveforms that exhibit a sig- n ESD Rating: 2500V HBM, 1500V CDM nificant variation of the crest factor during measurement. To achieve higher accuracy and lower output ripple, the
APPLICATIONS
averaging bandwidth can be externally adjusted by a ca- n Point-to-Point Microwave Links pacitor connected between the FLTR and OUT pins. n SATCOM n The enable interface switches the device between active Instrumentation and Measurement Equipment n measurement mode and a low power shutdown mode. Military Radios All registered trademarks and trademarks are the property of their respective owners. Protected n 5G, LTE, WiFi, Wireless Networks by U.S. patents, including 9330283, 9639719. n RMS Power Measurement n Receive and Transmit Gain Control n RF PA Transmit Power Control
TYPICAL APPLICATION 100MHz to 70GHz RMS Power Detector Output Voltage vs Frequency
1.4 1Ω 0dBm 3.3V 1.2 –5dBm –10dBm 100nF –15dBm ENABLE 1.0 EN V –20dBm CC LTC5597 –25dBm GND OUT ADC TAGE (V) 0.8 –30dBm –35dBm CFLTR RFIN RFIN FLTR 0.6 GND GND OUTPUT VOL 0.4 5597 TA01a 0.2 00.1 1 10 100 RF FREQUENCY (GHz) 5597 TA01b Rev. 0 Document Feedback For more information www.analog.com 1 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Test Circuit Applications Information Package Description Typical Application Related Parts
