ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
Text Version of Document
LTC5597

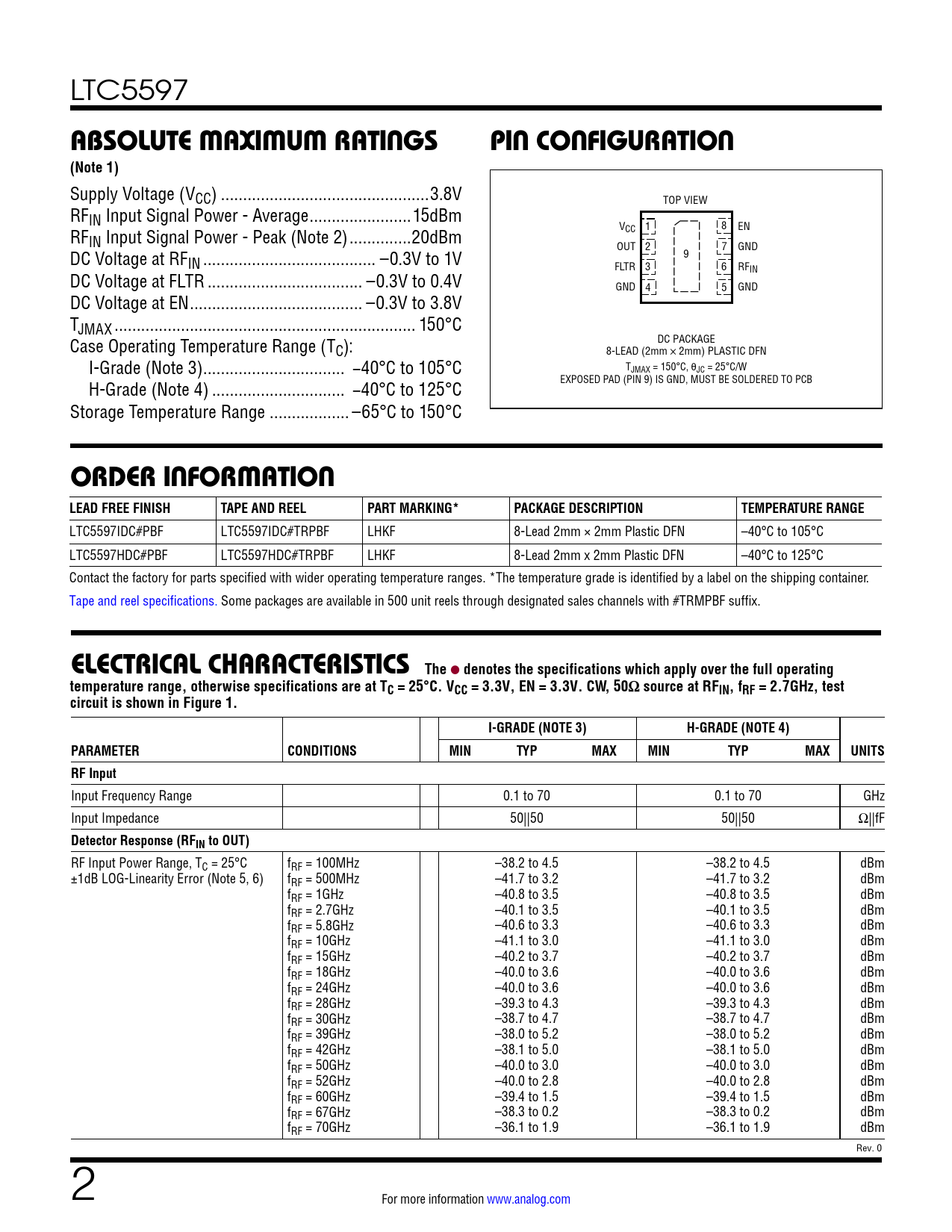

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltage (VCC) ...3.8V TOP VIEW RFIN Input Signal Power - Average ...15dBm VCC 1 8 EN RFIN Input Signal Power - Peak (Note 2) ..20dBm OUT 2 7 GND 9 DC Voltage at RFIN ... –0.3V to 1V FLTR 3 6 RFIN DC Voltage at FLTR ... –0.3V to 0.4V GND 4 5 GND DC Voltage at EN ... –0.3V to 3.8V TJMAX .. 150°C DC PACKAGE Case Operating Temperature Range (TC): 8-LEAD (2mm × 2mm) PLASTIC DFN T I-Grade (Note 3) .. −40°C to 105°C JMAX = 150°C, θJC = 25°C/W EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB H-Grade (Note 4) .. −40°C to 125°C Storage Temperature Range .. –65°C to 150°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC5597IDC#PBF LTC5597IDC#TRPBF LHKF 8-Lead 2mm × 2mm Plastic DFN –40°C to 105°C LTC5597HDC#PBF LTC5597HDC#TRPBF LHKF 8-Lead 2mm x 2mm Plastic DFN –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TC = 25°C. VCC = 3.3V, EN = 3.3V. CW, 50Ω source at RFIN, fRF = 2.7GHz, test circuit is shown in Figure 1. I-GRADE (NOTE 3) H-GRADE (NOTE 4) PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS RF Input
Input Frequency Range 0.1 to 70 0.1 to 70 GHz Input Impedance 50||50 50||50 Ω||fF
Detector Response (RFIN to OUT)
RF Input Power Range, TC = 25°C fRF = 100MHz –38.2 to 4.5 –38.2 to 4.5 dBm ±1dB LOG-Linearity Error (Note 5, 6) fRF = 500MHz –41.7 to 3.2 –41.7 to 3.2 dBm fRF = 1GHz –40.8 to 3.5 –40.8 to 3.5 dBm fRF = 2.7GHz –40.1 to 3.5 –40.1 to 3.5 dBm fRF = 5.8GHz –40.6 to 3.3 –40.6 to 3.3 dBm fRF = 10GHz –41.1 to 3.0 –41.1 to 3.0 dBm fRF = 15GHz –40.2 to 3.7 –40.2 to 3.7 dBm fRF = 18GHz –40.0 to 3.6 –40.0 to 3.6 dBm fRF = 24GHz –40.0 to 3.6 –40.0 to 3.6 dBm fRF = 28GHz –39.3 to 4.3 –39.3 to 4.3 dBm fRF = 30GHz –38.7 to 4.7 –38.7 to 4.7 dBm fRF = 39GHz –38.0 to 5.2 –38.0 to 5.2 dBm fRF = 42GHz –38.1 to 5.0 –38.1 to 5.0 dBm fRF = 50GHz –40.0 to 3.0 –40.0 to 3.0 dBm fRF = 52GHz –40.0 to 2.8 –40.0 to 2.8 dBm fRF = 60GHz –39.4 to 1.5 –39.4 to 1.5 dBm fRF = 67GHz –38.3 to 0.2 –38.3 to 0.2 dBm fRF = 70GHz –36.1 to 1.9 –36.1 to 1.9 dBm Rev. 0 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Test Circuit Applications Information Package Description Typical Application Related Parts
