HMC909LP4E
v02.0511

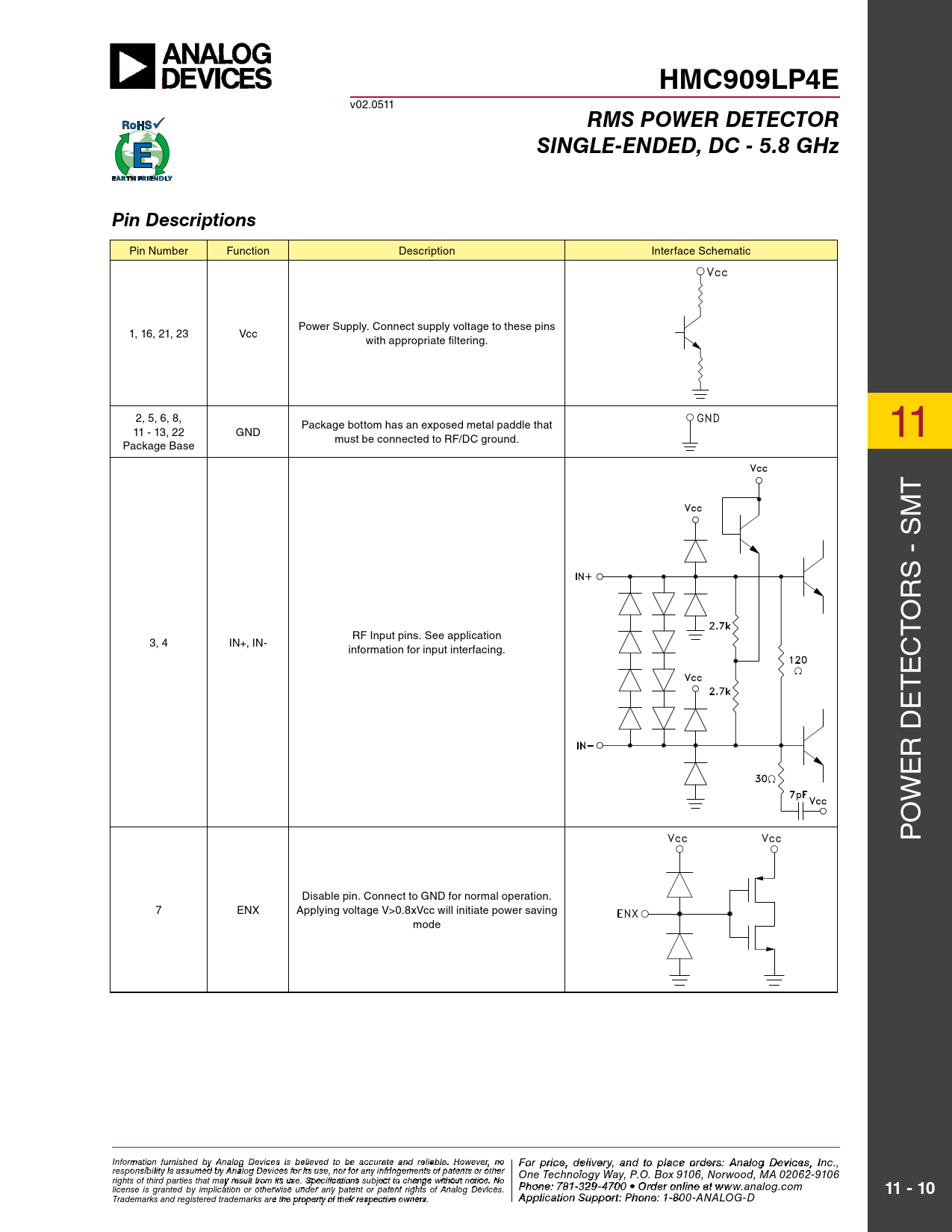

RMS POWER DETECTOR SINGLE-ENDED, DC - 5.8 GHz Pin Descriptions
Pin Number Function Description Interface schematic Power supply. connect supply voltage to these pins 1, 16, 21, 23 Vcc with appropriate filtering. 2, 5, 6, 8, Package bottom has an exposed metal paddle that 11 - 13, 22 GND must be connected to rF/Dc ground. 11 Package Base t M s - rs o rF Input pins. see application t 3, 4 IN+, IN- information for input interfacing. c e t e D r e w o P Disable pin. connect to GND for normal operation. 7 eNX Applying voltage V>0.8xVcc will initiate power saving mode Info F rmoatr p ion rfiurcne is , d hed ebly ivAe n r al y a og D n evd t ice o p s is bla eli c eve o ed t rd o b e e ras: H ccuratite tiatne M d reli iac bl reo . w Ho av wev e C er, n o o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rporation, 20 Alpha Road, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd ho e ne r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o tniltie n .c e ao t m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com
