Datasheet ADL5504 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 450 MHz TO 6000 MHz TruPwr Detector |
| Pages / Page | 24 / 6 — ADL5504. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION |
| Revision | A |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |

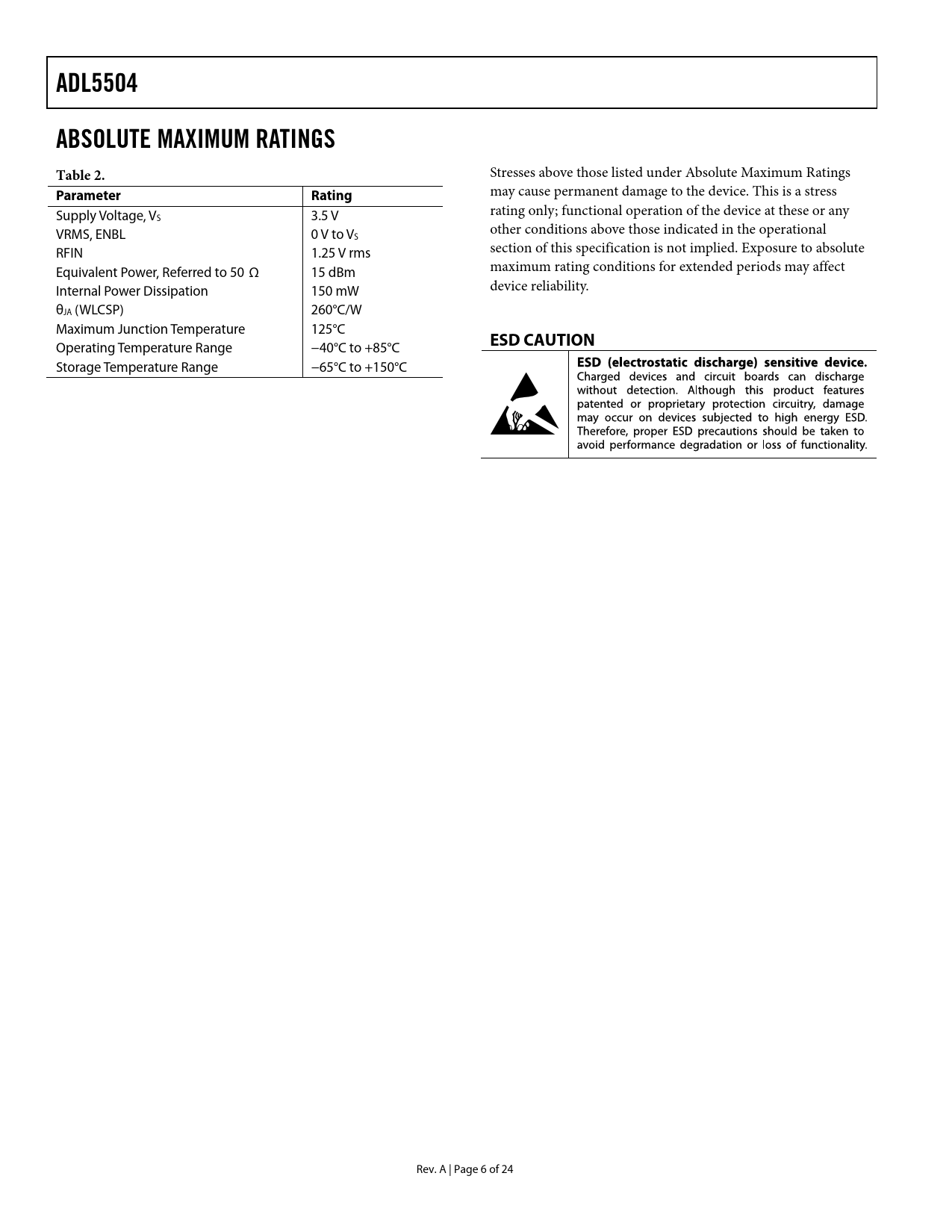

ADL5504. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
ADL5504 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage, V rating only; functional operation of the device at these or any S 3.5 V VRMS, ENBL 0 V to V other conditions above those indicated in the operational S RFIN 1.25 V rms section of this specification is not implied. Exposure to absolute Equivalent Power, Referred to 50 Ω 15 dBm maximum rating conditions for extended periods may affect Internal Power Dissipation 150 mW device reliability. θJA (WLCSP) 260°C/W Maximum Junction Temperature 125°C
ESD CAUTION
Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Rev. A | Page 6 of 24 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Circuit Description RMS Circuit Description and Filtering Filtering Output Buffer Applications Information Basic Connections RF Input Interfacing Resistive Tap RF Input Multiple RF Inputs Linearity Output Swing Output Offset Output Drive Capability and Buffering Selecting the Square-Domain Filter and Output Low-Pass Filter Power Consumption, Enable, and Power-On/Power-Off Response Time Device Calibration and Error Calculation Calibration for Improved Accuracy Drift over a Reduced Temperature Range Device Handling Evaluation Board Land Pattern and Soldering Information Outline Dimensions Ordering Guide
