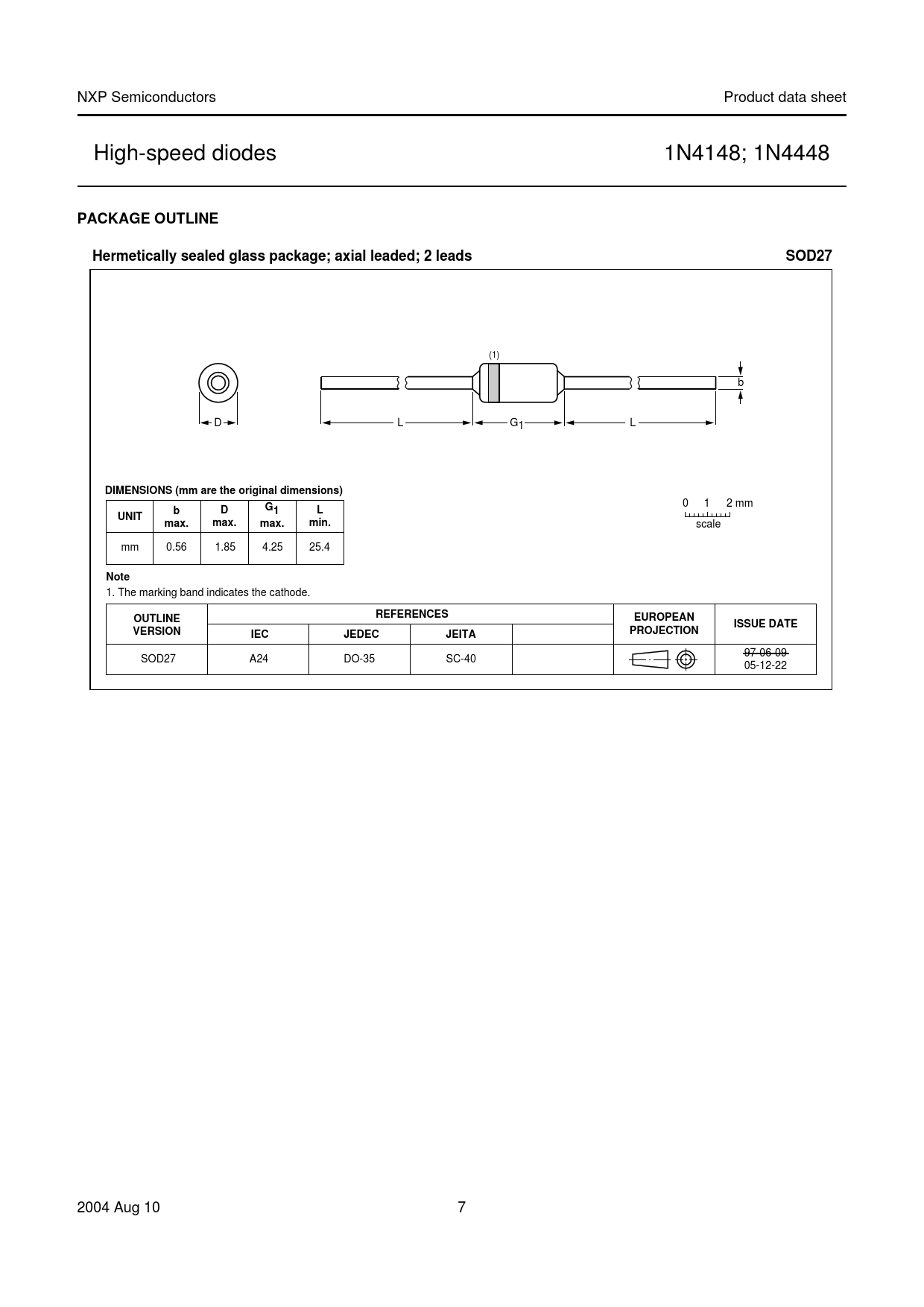

PACKAGE OUTLINE. Hermetically sealed glass package; axial leaded; 2 leads. SOD27. DIMENSIONS (mm are the original dimensions)
Model Line for this Datasheet
Text Version of Document
NXP Semiconductors Product data sheet High-speed diodes 1N4148; 1N4448
PACKAGE OUTLINE Hermetically sealed glass package; axial leaded; 2 leads SOD27
(1) b D L G1 L
DIMENSIONS (mm are the original dimensions)
0 1 2 mm
b D G1 L UNIT max. max. max. min.
scale mm 0.56 1.85 4.25 25.4
Note
1. The marking band indicates the cathode.
REFERENCES OUTLINE EUROPEAN ISSUE DATE VERSION PROJECTION IEC JEDEC JEITA
97-06-09 SOD27 A24 DO-35 SC-40 05-12-22 2004 Aug 10 7 Document Outline Features Applications Description Marking Ordering information Limiting values Electrical characteristics Thermal characteristics Graphical data Package outline Data sheet status Disclaimers
