CRITICAL ZONEtPTL TO TPTPRAMP-UPE TRLTtLSMAXTU A R ETPSMINM TEtSPREHEATRAMP-DOWNt25°C TO PEAK TEMPERATURETIME

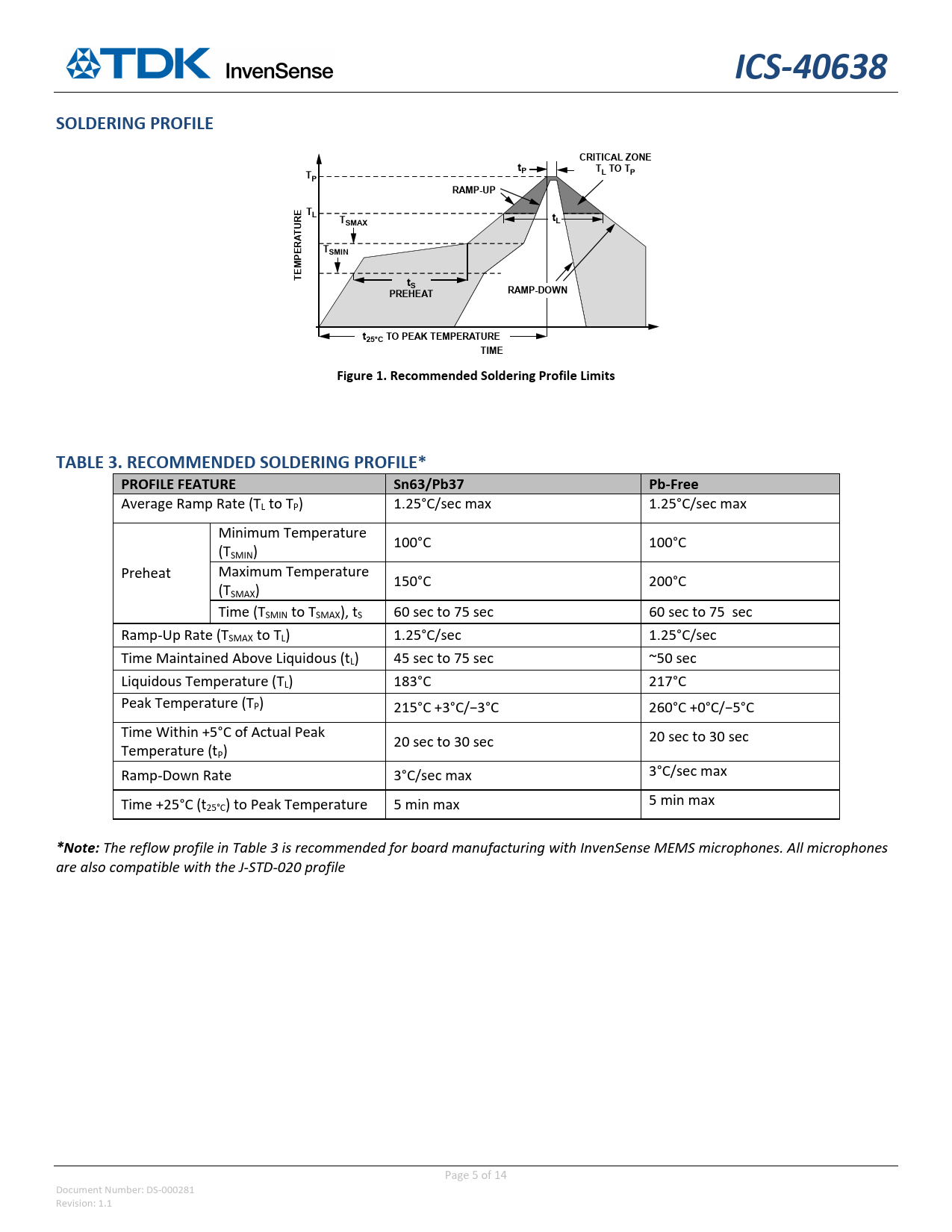

Figure 1. Recommended Soldering Profile Limits
TABLE 3. RECOMMENDED SOLDERING PROFILE* PROFILE FEATURE Sn63/Pb37 Pb‐Free Average Ramp Rate (TL to TP) 1.25°C/sec max 1.25°C/sec max Minimum Temperature 100°C 100°C (TSMIN) Preheat Maximum Temperature 150°C 200°C (TSMAX) Time (TSMIN to TSMAX), tS 60 sec to 75 sec 60 sec to 75 sec Ramp‐Up Rate (TSMAX to TL) 1.25°C/sec 1.25°C/sec Time Maintained Above Liquidous (tL) 45 sec to 75 sec ~50 sec Liquidous Temperature (TL) 183°C 217°C Peak Temperature (TP) 215°C +3°C/−3°C 260°C +0°C/−5°C Time Within +5°C of Actual Peak 20 sec to 30 sec 20 sec to 30 sec Temperature (tP) Ramp‐Down Rate 3°C/sec max 3°C/sec max Time +25°C (t25°C) to Peak Temperature 5 min max 5 min max *Note: The reflow profile in Table 3 is recommended for board manufacturing with InvenSense MEMS microphones. All microphones are also compatible with the J‐STD‐020 profile Page 5 of 14 Document Number: DS‐000281 Revision: 1.1
