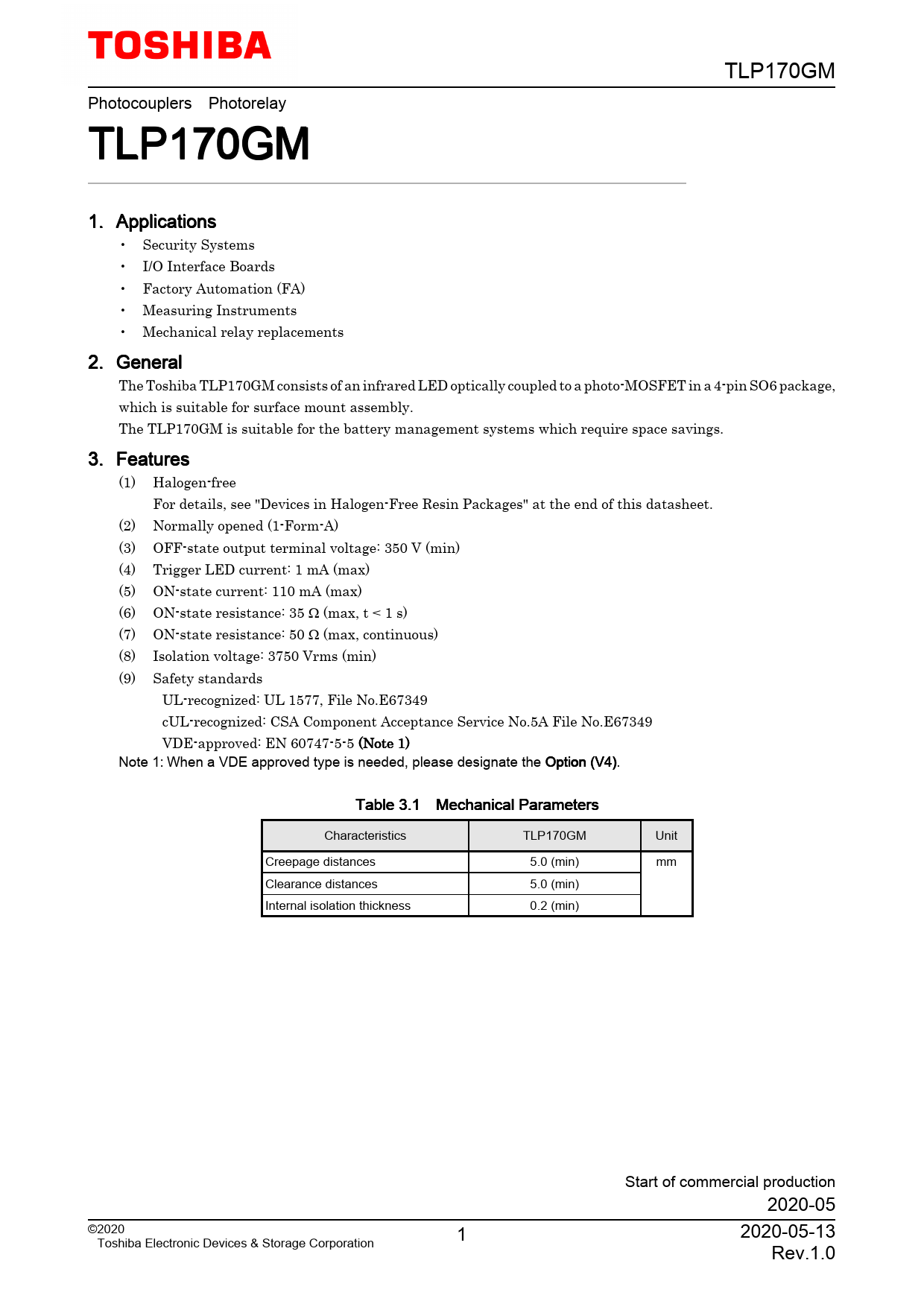

TLP170GM Photocouplers Photorelay TLP170GM 1. Applications • Security Systems • I/O Interface Boards • Factory Automation (FA) • Measuring Instruments • Mechanical relay replacements 2. General The Toshiba TLP170GM consists of an infrared LED optically coupled to a photo-MOSFET in a 4-pin SO6 package, which is suitable for surface mount assembly. The TLP170GM is suitable for the battery management systems which require space savings. 3. Features (1) Halogen-free For details, see "Devices in Halogen-Free Resin Packages" at the end of this datasheet. (2) Normally opened (1-Form-A) (3) OFF-state output terminal voltage: 350 V (min) (4) Trigger LED current: 1 mA (max) (5) ON-state current: 110 mA (max) (6) ON-state resistance: 35 Ω (max, t < 1 s) (7) ON-state resistance: 50 Ω (max, continuous) (8) Isolation voltage: 3750 Vrms (min) (9) Safety standards UL-recognized: UL 1577, File No.E67349 cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349 VDE-approved: EN 60747-5-5 (Note 1) Note 1: When a VDE approved type is needed, please designate the Option (V4). Table 3.1 Mechanical Parameters Characteristics TLP170GM Unit Creepage distances 5.0 (min) mm Clearance distances 5.0 (min) Internal isolation thickness 0.2 (min) Start of commercial production 2020-05 ©2020 1 2020-05-13 Toshiba Electronic Devices & Storage Corporation Rev.1.0
