Datasheet ADCMP371-KGD (Analog Devices)
| Manufacturer | Analog Devices |
| Description | General Purpose Comparators |
| Pages / Page | 6 / 1 — General-Purpose Comparators. Known Good Die. ADCMP371-KGD. FEATURES. … |
| File Format / Size | PDF / 136 Kb |
| Document Language | English |

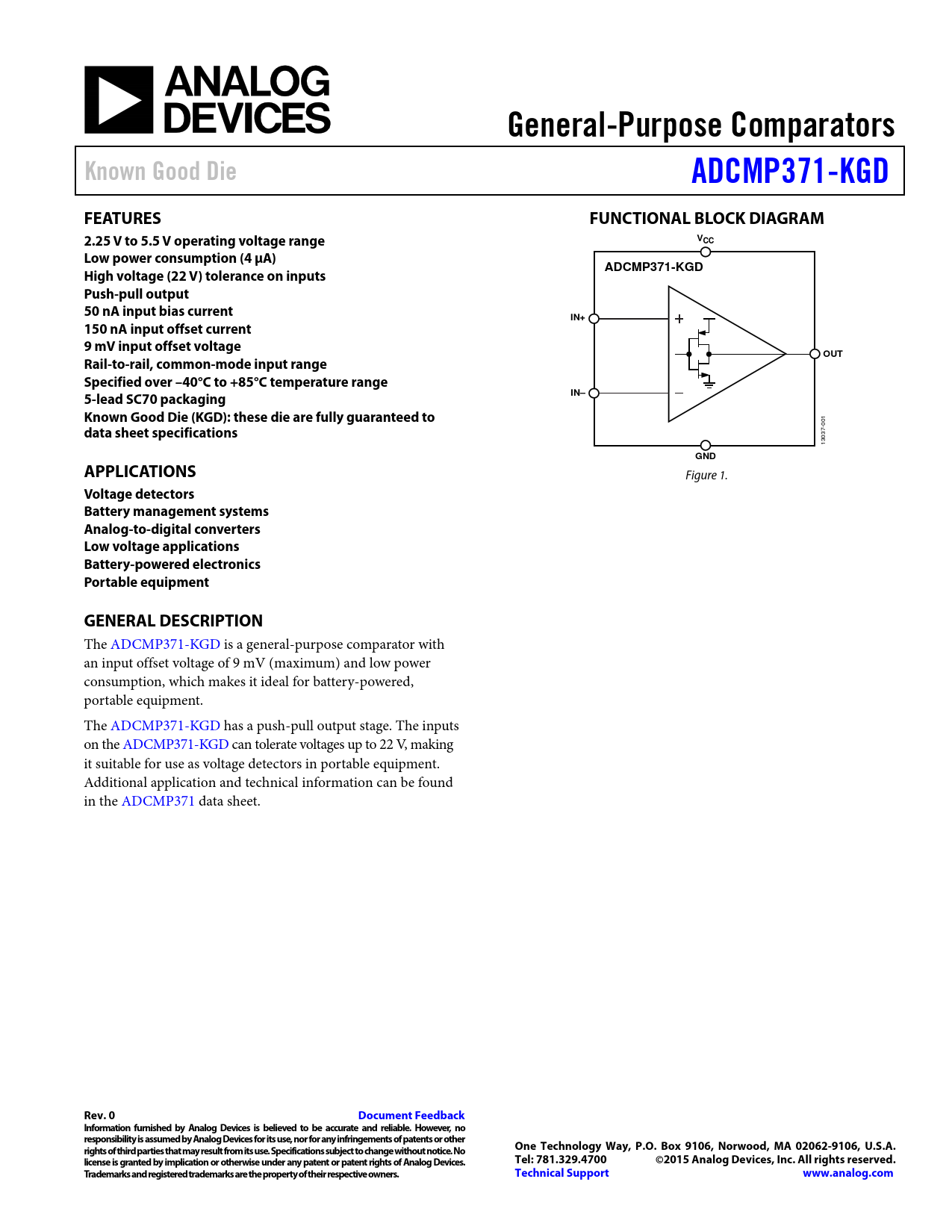

General-Purpose Comparators. Known Good Die. ADCMP371-KGD. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document
General-Purpose Comparators Known Good Die ADCMP371-KGD FEATURES FUNCTIONAL BLOCK DIAGRAM 2.25 V to 5.5 V operating voltage range VCC Low power consumption (4 µA) ADCMP371-KGD High voltage (22 V) tolerance on inputs Push-pull output 50 nA input bias current IN+ 150 nA input offset current 9 mV input offset voltage OUT Rail-to-rail, common-mode input range Specified over –40°C to +85°C temperature range 5-lead SC70 packaging IN– Known Good Die (KGD): these die are fully guaranteed to
001
data sheet specifications
13037-
GND APPLICATIONS
Figure 1.
Voltage detectors Battery management systems Analog-to-digital converters Low voltage applications Battery-powered electronics Portable equipment GENERAL DESCRIPTION
The ADCMP371-KGD is a general-purpose comparator with an input offset voltage of 9 mV (maximum) and low power consumption, which makes it ideal for battery-powered, portable equipment. The ADCMP371-KGD has a push-pull output stage. The inputs on the ADCMP371-KGD can tolerate voltages up to 22 V, making it suitable for use as voltage detectors in portable equipment. Additional application and technical information can be found in the ADCMP371 data sheet.
Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2015 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
