HMC874LC3C
v07.0616

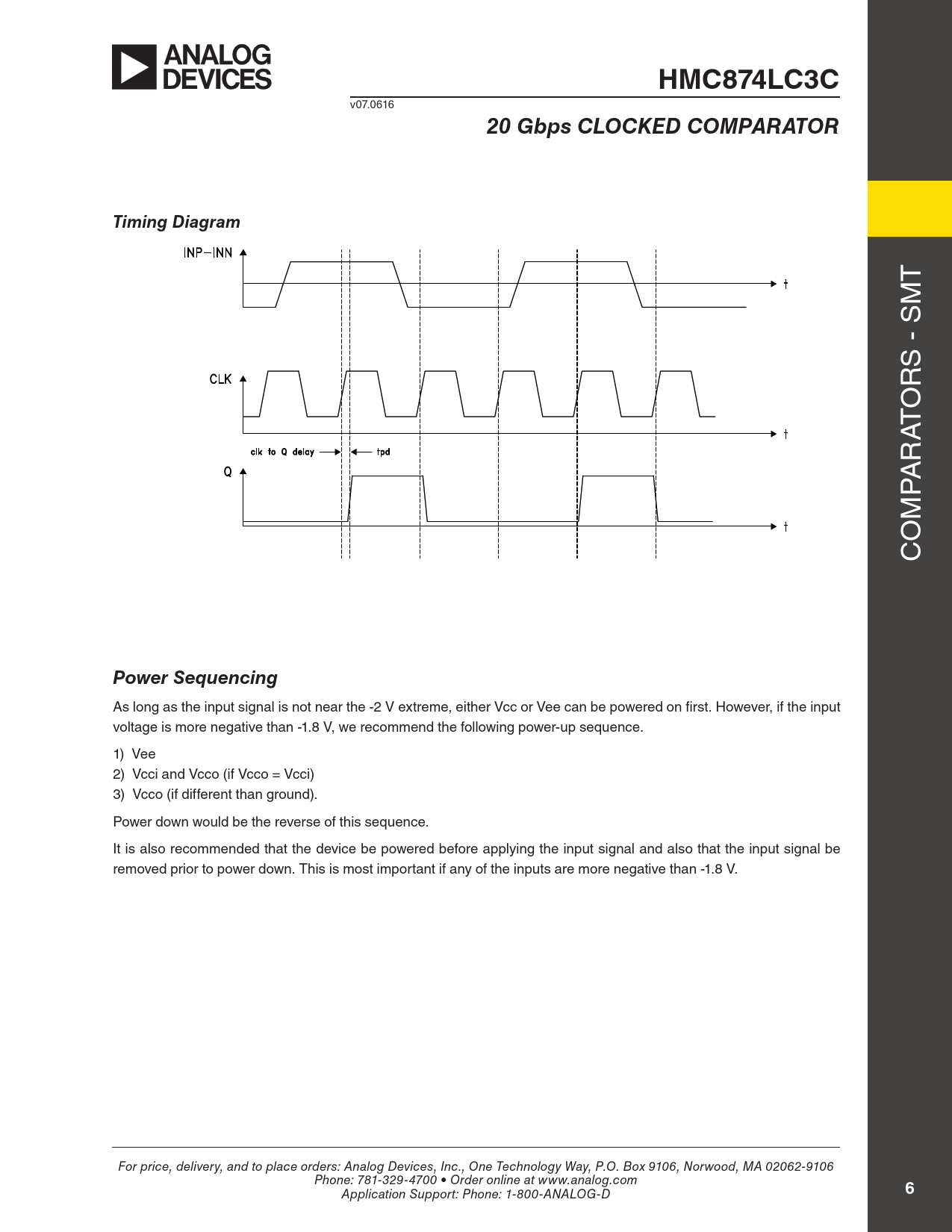

20 Gbps CLOCKED COMPARATOR Timing Diagram
T M S - S R O AT R A P OM C
Power Sequencing
As long as the input signal is not near the -2 V extreme, either Vcc or Vee can be powered on first. However, if the input voltage is more negative than -1.8 V, we recommend the fol owing power-up sequence. 1) Vee 2) Vcci and Vcco (if Vcco = Vcci) 3) Vcco (if different than ground). Power down would be the reverse of this sequence. It is also recommended that the device be powered before applying the input signal and also that the input signal be removed prior to power down. This is most important if any of the inputs are more negative than -1.8 V. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
