Datasheet ADCMP561, ADCMP562 (Analog Devices) - 7

ManufacturerAnalog Devices
DescriptionDual High Speed PECL Comparators
Pages / Page14 / 7 — Data Sheet. ADCMP561/ADCMP562. Pin No. ADCMP561. ADCMP562. Mnemonic …
RevisionB
File Format / SizePDF / 273 Kb
Document LanguageEnglish

Data Sheet. ADCMP561/ADCMP562. Pin No. ADCMP561. ADCMP562. Mnemonic Function

Data Sheet ADCMP561/ADCMP562 Pin No ADCMP561 ADCMP562 Mnemonic Function

Model Line for this Datasheet

Text Version of Document

Data Sheet ADCMP561/ADCMP562 Pin No. ADCMP561 ADCMP562 Mnemonic Function

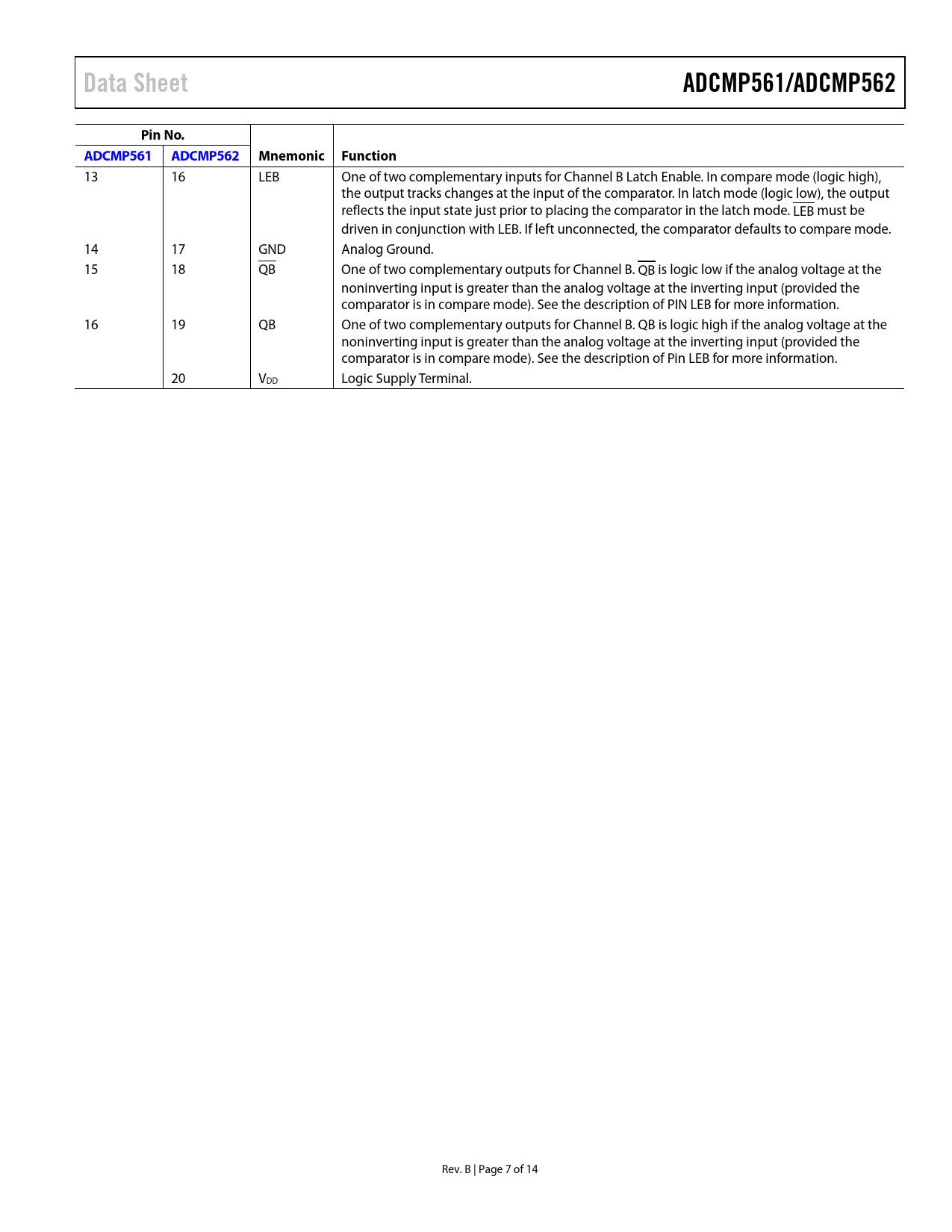

13 16 LEB One of two complementary inputs for Channel B Latch Enable. In compare mode (logic high), the output tracks changes at the input of the comparator. In latch mode (logic low), the output reflects the input state just prior to placing the comparator in the latch mode. LEB must be driven in conjunction with LEB. If left unconnected, the comparator defaults to compare mode. 14 17 GND Analog Ground. 15 18 QB One of two complementary outputs for Channel B. QB is logic low if the analog voltage at the noninverting input is greater than the analog voltage at the inverting input (provided the comparator is in compare mode). See the description of PIN LEB for more information. 16 19 QB One of two complementary outputs for Channel B. QB is logic high if the analog voltage at the noninverting input is greater than the analog voltage at the inverting input (provided the comparator is in compare mode). See the description of Pin LEB for more information. 20 VDD Logic Supply Terminal. Rev. B | Page 7 of 14 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL CONSIDERATIONS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TIMING INFORMATION APPLICATIONS INFORMATION CLOCK TIMING RECOVERY OPTIMIZING HIGH SPEED PERFORMANCE COMPARATOR PROPAGATION DELAY DISPERSION COMPARATOR HYSTERESIS MINIMUM INPUT SLEW RATE REQUIREMENT TYPICAL APPLICATION CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
