Description6.5 V, 2 A, Ultralow Noise, High PSRR, Fast Transient Response CMOS LDO
Pages / Page23 / 1 — 6.5 V, 2 A, Ultralow Noise, High PSRR, Fast. Transient Response CMOS LDO. …
RevisionD
File Format / SizePDF / 1.1 Mb
Document LanguageEnglish

6.5 V, 2 A, Ultralow Noise, High PSRR, Fast. Transient Response CMOS LDO. Data Sheet. ADM7172. FEATURES

Datasheet ADM7172 Analog Devices, Revision: D

Model Line for this Datasheet

Text Version of Document

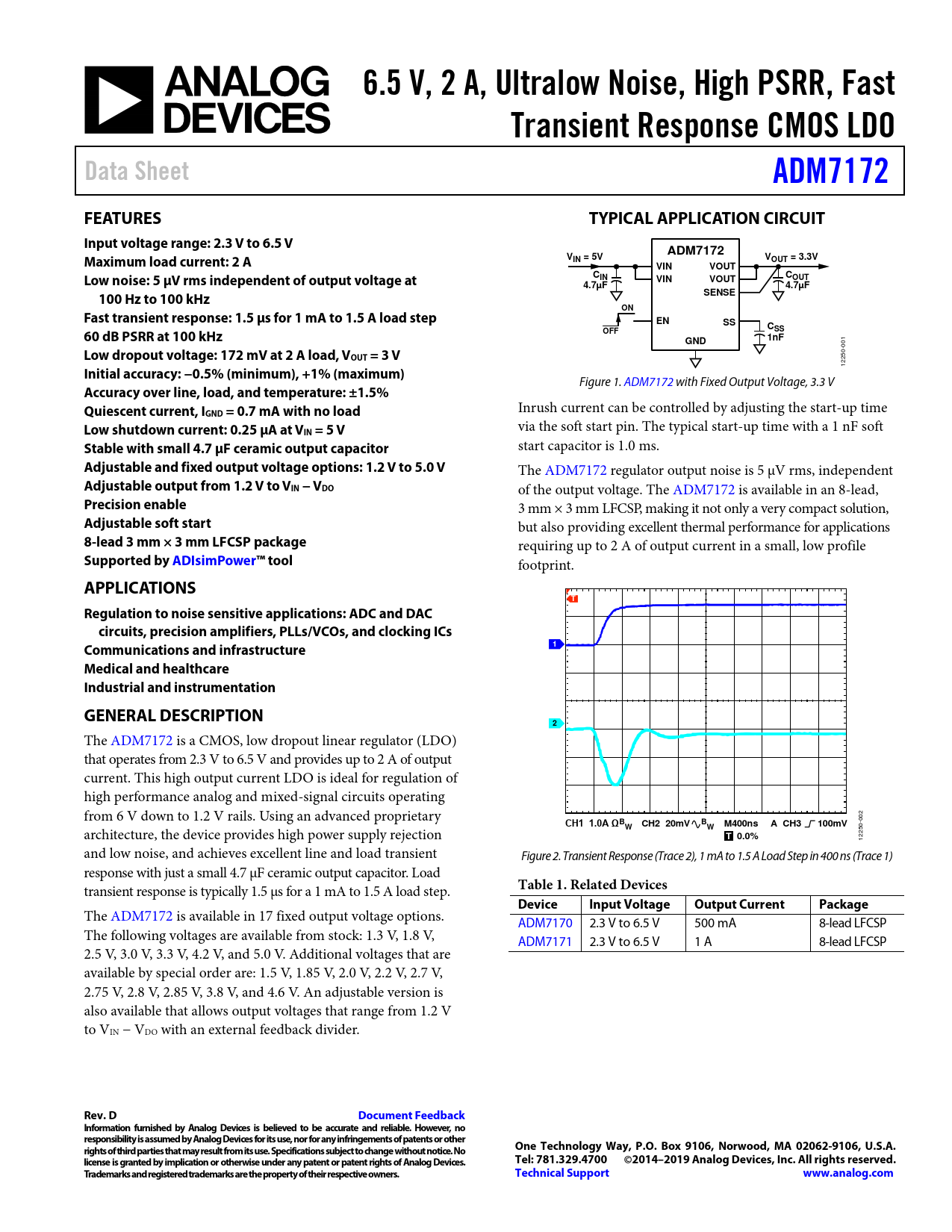

6.5 V, 2 A, Ultralow Noise, High PSRR, Fast Transient Response CMOS LDO Data Sheet ADM7172 FEATURES TYPICAL APPLICATION CIRCUIT Input voltage range: 2.3 V to 6.5 V ADM7172 Maximum load current: 2 A VIN = 5V VOUT = 3.3V VIN VOUT Low noise: 5 µV rms independent of output voltage at CIN C VIN VOUT OUT 4.7µF 4.7µF 100 Hz to 100 kHz SENSE ON Fast transient response: 1.5 μs for 1 mA to 1.5 A load step EN SS C 60 dB PSRR at 100 kHz SS OFF GND 1nF
001
Low dropout voltage: 172 mV at 2 A load, VOUT = 3 V
12250-
Initial accuracy: −0.5% (minimum), +1% (maximum)
Figure 1. ADM7172 with Fixed Output Voltage, 3.3 V
Accuracy over line, load, and temperature: ±1.5% Quiescent current, I
Inrush current can be controlled by adjusting the start-up time
GND = 0.7 mA with no load Low shutdown current: 0.25 μA at V
via the soft start pin. The typical start-up time with a 1 nF soft
IN = 5 V Stable with small 4.7 µF ceramic output capacitor
start capacitor is 1.0 ms.
Adjustable and fixed output voltage options: 1.2 V to 5.0 V
The ADM7172 regulator output noise is 5 μV rms, independent
Adjustable output from 1.2 V to VIN − VDO
of the output voltage. The ADM7172 is available in an 8-lead,
Precision enable
3 mm × 3 mm LFCSP, making it not only a very compact solution,
Adjustable soft start
but also providing excel ent thermal performance for applications
8-lead 3 mm × 3 mm LFCSP package
requiring up to 2 A of output current in a small, low profile
Supported by ADIsimPower™ tool
footprint.
APPLICATIONS T Regulation to noise sensitive applications: ADC and DAC circuits, precision amplifiers, PLLs/VCOs, and clocking ICs Communications and infrastructure 1 Medical and healthcare Industrial and instrumentation GENERAL DESCRIPTION 2
The ADM7172 is a CMOS, low dropout linear regulator (LDO) that operates from 2.3 V to 6.5 V and provides up to 2 A of output current. This high output current LDO is ideal for regulation of high performance analog and mixed-signal circuits operating from 6 V down to 1.2 V rails. Using an advanced proprietary 002
CH1 1.0A ΩB
architecture, the device provides high power supply rejection
W CH2 20mV BW M400ns A CH3 100mV T 0.0%
12250- and low noise, and achieves excellent line and load transient Figure 2. Transient Response (Trace 2), 1 mA to 1.5 A Load Step in 400 ns (Trace 1) response with just a smal 4.7 µF ceramic output capacitor. Load transient response is typical y 1.5 μs for a 1 mA to 1.5 A load step.
Table 1. Related Devices Device Input Voltage Output Current Package
The ADM7172 is available in 17 fixed output voltage options. ADM7170 2.3 V to 6.5 V 500 mA 8-lead LFCSP The following voltages are available from stock: 1.3 V, 1.8 V, ADM7171 2.3 V to 6.5 V 1 A 8-lead LFCSP 2.5 V, 3.0 V, 3.3 V, 4.2 V, and 5.0 V. Additional voltages that are available by special order are: 1.5 V, 1.85 V, 2.0 V, 2.2 V, 2.7 V, 2.75 V, 2.8 V, 2.85 V, 3.8 V, and 4.6 V. An adjustable version is also available that al ows output voltages that range from 1.2 V to VIN − VDO with an external feedback divider.
