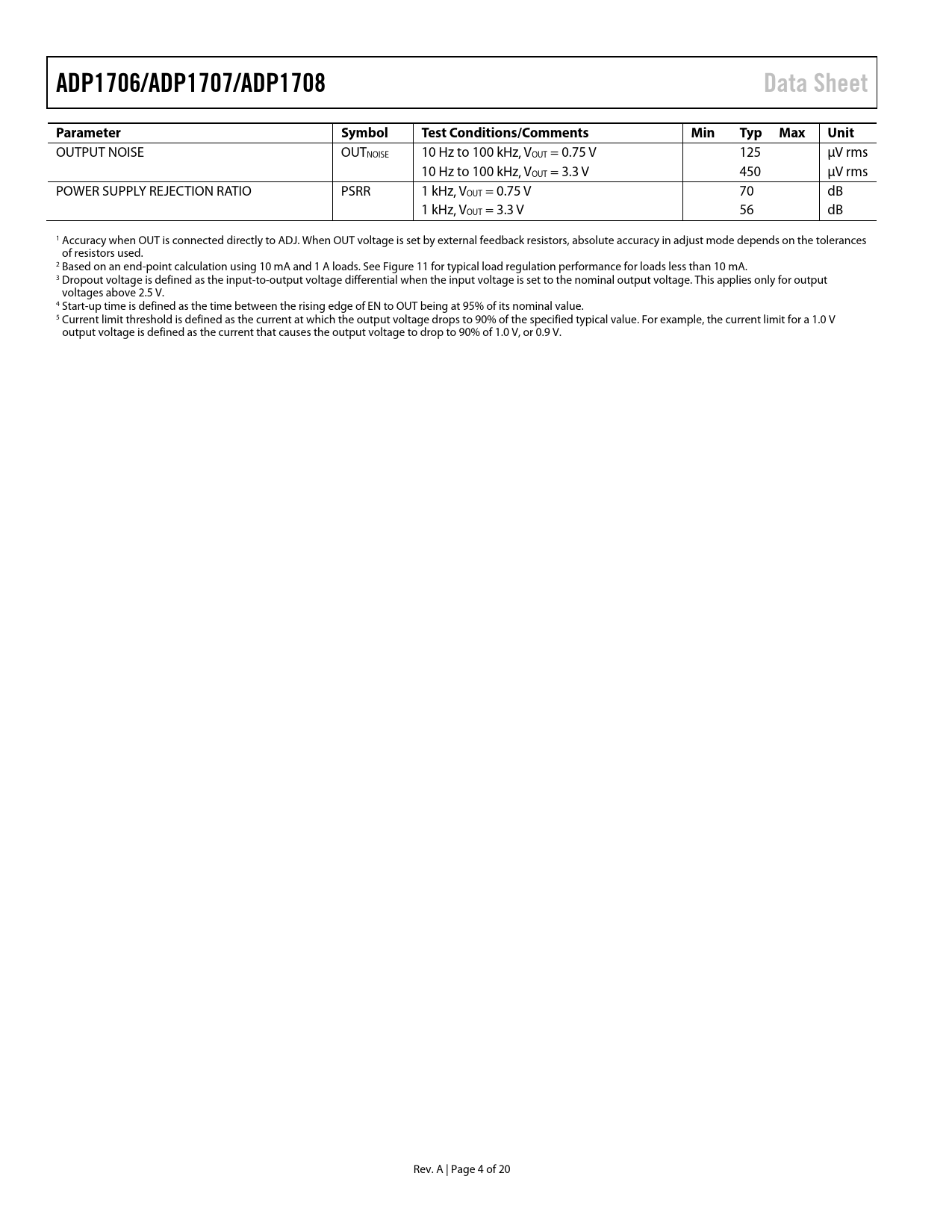

ADP1706/ADP1707/ADP1708 Data Sheet Parameter Symbol Test Conditions/Comments Min Typ Max Unit
OUTPUT NOISE OUTNOISE 10 Hz to 100 kHz, VOUT = 0.75 V 125 µV rms 10 Hz to 100 kHz, VOUT = 3.3 V 450 µV rms POWER SUPPLY REJECTION RATIO PSRR 1 kHz, VOUT = 0.75 V 70 dB 1 kHz, VOUT = 3.3 V 56 dB 1 Accuracy when OUT is connected directly to ADJ. When OUT voltage is set by external feedback resistors, absolute accuracy in adjust mode depends on the tolerances of resistors used. 2 Based on an end-point calculation using 10 mA and 1 A loads. See Figure 11 for typical load regulation performance for loads less than 10 mA. 3 Dropout voltage is defined as the input-to-output voltage differential when the input voltage is set to the nominal output voltage. This applies only for output voltages above 2.5 V. 4 Start-up time is defined as the time between the rising edge of EN to OUT being at 95% of its nominal value. 5 Current limit threshold is defined as the current at which the output voltage drops to 90% of the specified typical value. For example, the current limit for a 1.0 V output voltage is defined as the current that causes the output voltage to drop to 90% of 1.0 V, or 0.9 V. Rev. A | Page 4 of 20 Document Outline FEATURES APPLICATIONS TYPICAL APPLICATION CIRCUITS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION SOFT START FUNCTION (ADP1706) ADJUSTABLE OUTPUT VOLTAGE (ADP1708) TRACK MODE (ADP1707) ENABLE FEATURE APPLICATIONS INFORMATION CAPACITOR SELECTION Output Capacitor Input Bypass Capacitor Input and Output Capacitor Properties VOLTAGE TRACKING APPLICATIONS CURRENT LIMIT AND THERMAL OVERLOAD PROTECTION THERMAL CONSIDERATIONS PCB LAYOUT CONSIDERATIONS OUTLINE DIMENSIONS ORDERING GUIDE NOTES
