Datasheet EFM8LB1 (Silicon Labs) - 8
| Manufacturer | Silicon Labs |
| Description | EFM8 Laser Bee Family |
| Pages / Page | 77 / 8 — 3. System Overview. 3.1 Introduction. CIP-51 8051 Controller. Port I/O … |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |
3. System Overview. 3.1 Introduction. CIP-51 8051 Controller. Port I/O Configuration. Debug /. Core. C2D Programming
Model Line for this Datasheet
- EFM8LB10F16E-C-QFN24 EFM8LB10F16E-C-QFN32 EFM8LB10F16E-C-QFP32 EFM8LB10F16E-C-QSOP24 EFM8LB10F16ES0-C-QFN24 EFM8LB10F16ES0-C-QFN32 EFM8LB10F16ES1-C-QFN24 EFM8LB10F16ES1-C-QFN32 EFM8LB11F16E-C-QFN24 EFM8LB11F16E-C-QFN32 EFM8LB11F16E-C-QFP32 EFM8LB11F16E-C-QSOP24 EFM8LB11F16ES0-C-QFN24 EFM8LB11F16ES0-C-QFN32 EFM8LB11F16ES1-C-QFN24 EFM8LB11F16ES1-C-QFN32 EFM8LB11F32E-C-QFN24 EFM8LB11F32E-C-QFN32 EFM8LB11F32E-C-QFP32 EFM8LB11F32E-C-QSOP24 EFM8LB11F32ES0-C-QFN24 EFM8LB11F32ES0-C-QFN32 EFM8LB11F32ES1-C-QFN24 EFM8LB11F32ES1-C-QFN32 EFM8LB12F32E-C-QFN24 EFM8LB12F32E-C-QFN32 EFM8LB12F32E-C-QFP32 EFM8LB12F32E-C-QSOP24 EFM8LB12F32ES0-C-QFN24 EFM8LB12F32ES0-C-QFN32 EFM8LB12F32ES1-C-QFN24 EFM8LB12F32ES1-C-QFN32 EFM8LB12F64E-C-QFN24 EFM8LB12F64E-C-QFN32 EFM8LB12F64E-C-QFP32 EFM8LB12F64E-C-QSOP24 EFM8LB12F64ES0-C-QFN24 EFM8LB12F64ES0-C-QFN32 EFM8LB12F64ES1-C-QFN24 EFM8LB12F64ES1-C-QFN32
Text Version of Document
EFM8LB1 Data Sheet System Overview
3. System Overview 3.1 Introduction CIP-51 8051 Controller Port I/O Configuration Debug / Core C2D Programming Digital Peripherals Hardware UART0 64 KB ISP Flash
VIO C2CK/RSTb
Program Memory UART1 Reset Timers 0, Power-On 1, 2, 3, 4, 5 Reset 256 Byte SRAM Port 0 Priority 6-ch PCA
P0.n
Drivers Crossbar Supply I2C Slave 4096 Byte XRAM Decoder Monitor I2C / SMBus Port 1
P1.n
Drivers
VDD
SPI Power Net CRC Independent SYSCLK Voltage Watchdog Config. Crossbar Port 2 Regulator Timer
P2.n
SFR Logic Control Drivers Bus Units (4)
GND
System Clock Configuration Analog Peripherals Port 3
P3.n
Drivers Internal Low Freq. 4 12-bit Reference Oscillator DACs CMOS Clock VDD VREF EXTCLK Input VDD External EXTOSC RC Oscillator 14/12/10- bit ADC AMUX Temp 72 MHz 2% Sensor Oscillator 24.5 MHz 2%
+
Oscillator
-+-

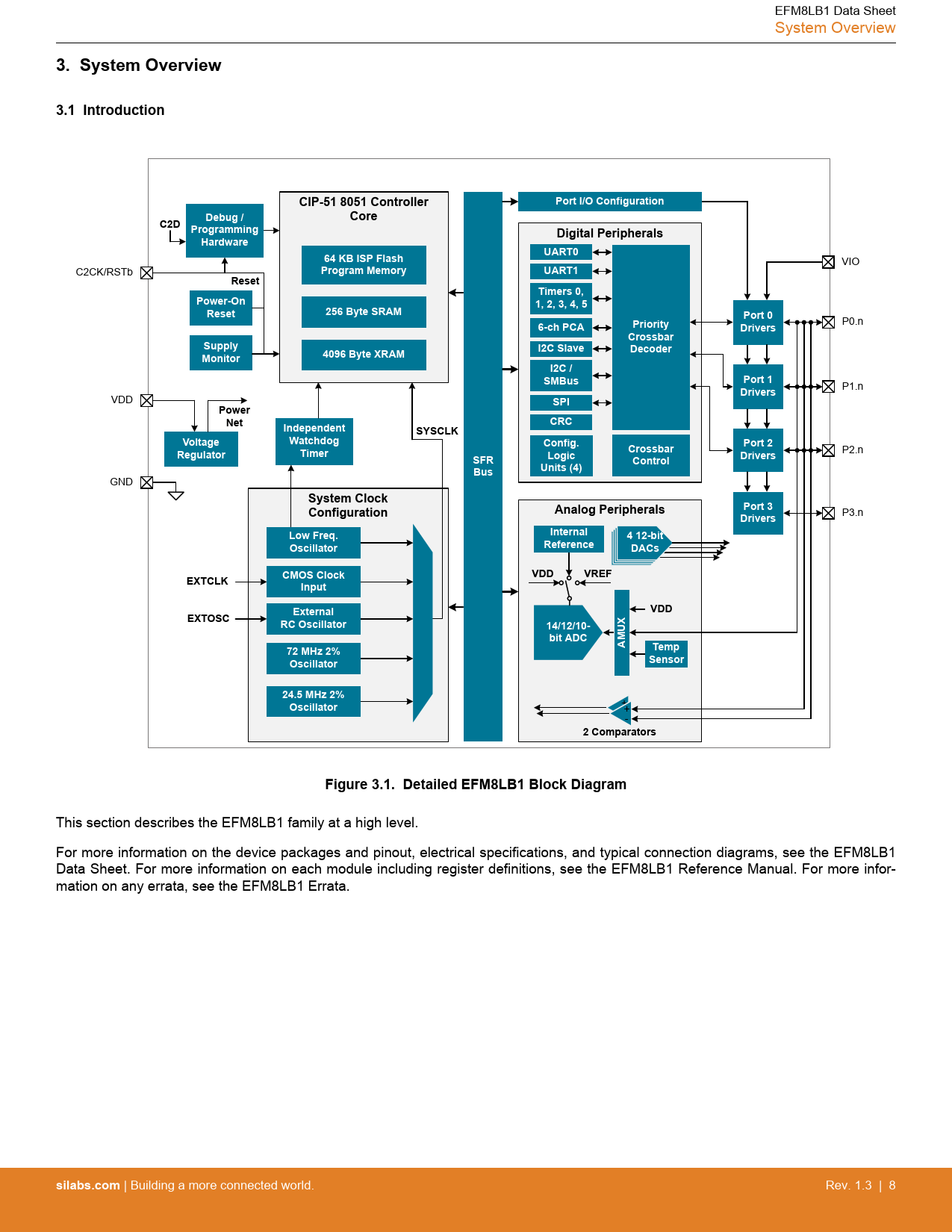

2 Comparators Figure 3.1. Detailed EFM8LB1 Block Diagram
This section describes the EFM8LB1 family at a high level. For more information on the device packages and pinout, electrical specifications, and typical connection diagrams, see the EFM8LB1 Data Sheet. For more information on each module including register definitions, see the EFM8LB1 Reference Manual. For more infor- mation on any errata, see the EFM8LB1 Errata.
