Datasheet UF4001, UF4002, UF4003, UF4004, UF4005, UF4006, UF4007 (Vishay) - 4
| Manufacturer | Vishay |
| Description | Ultrafast Plastic Rectifier |
| Pages / Page | 5 / 4 — PACKAGE OUTLINE DIMENSIONS |
| File Format / Size | PDF / 73 Kb |
| Document Language | English |
PACKAGE OUTLINE DIMENSIONS
Model Line for this Datasheet
Text Version of Document
UF4001, UF4002, UF4003, UF4004, UF4005, UF4006, UF4007 www.vishay.com Vishay General Semiconductor
PACKAGE OUTLINE DIMENSIONS

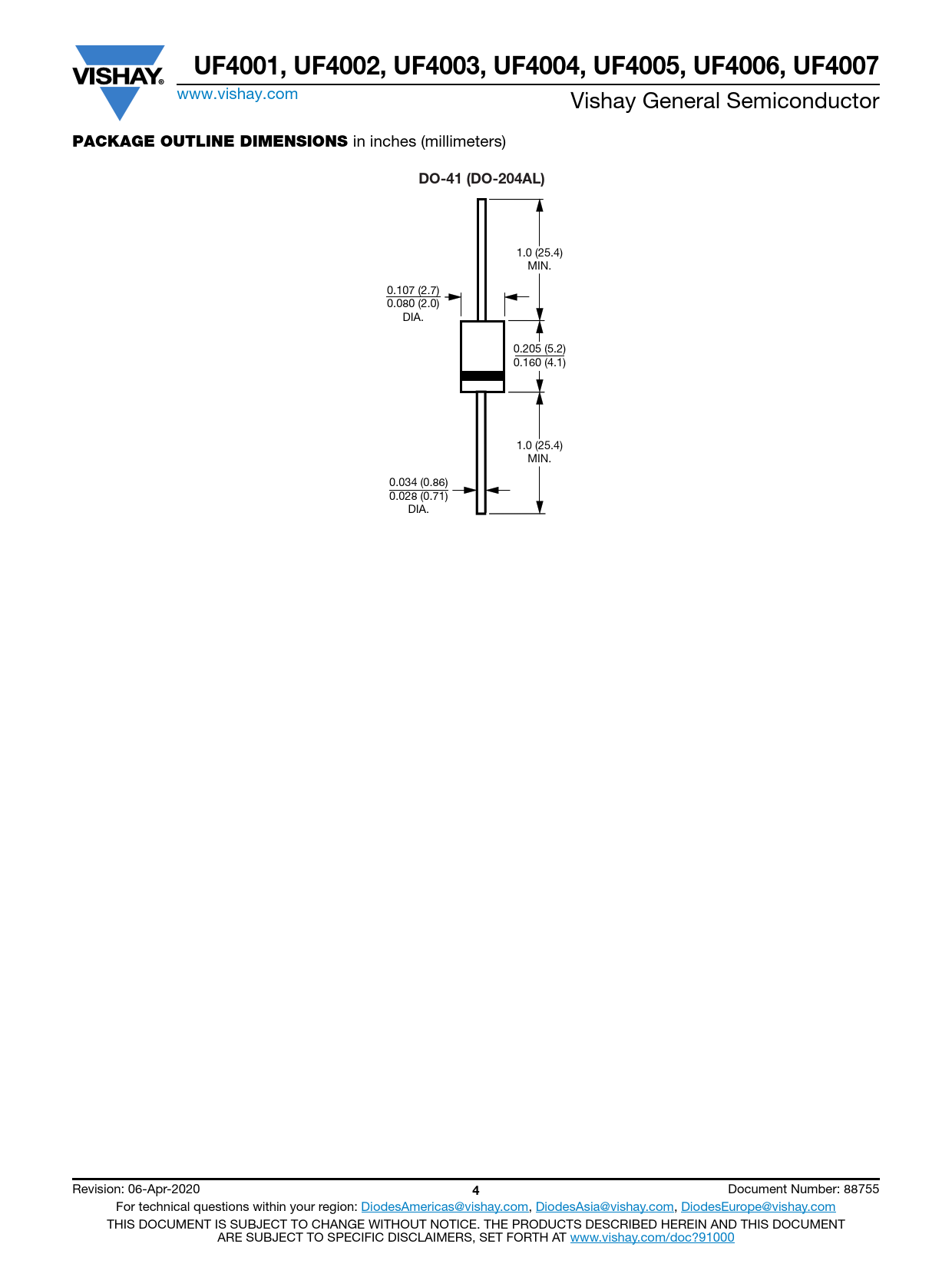

in inches (millimeters) DO-41 (DO-204AL) 1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.0) DIA. 0.205 (5.2) 0.160 (4.1) 1.0 (25.4) MIN. 0.034 (0.86) 0.028 (0.71) DIA. Revision: 06-Apr-2020 4 Document Number: 88755 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
