Datasheet SFH 484 (OSRAM) - 8
| Manufacturer | OSRAM |
| Description | GaAlAs Infrared Emitters (880 nm) |
| Pages / Page | 14 / 8 — Version 1.0. SFH 484. Radiation Characteristics. Abstrahlcharakteristik. … |
| File Format / Size | PDF / 258 Kb |
| Document Language | English |
Version 1.0. SFH 484. Radiation Characteristics. Abstrahlcharakteristik. Package Outline. Maßzeichnung
Model Line for this Datasheet
Text Version of Document
link to page 12 link to page 12

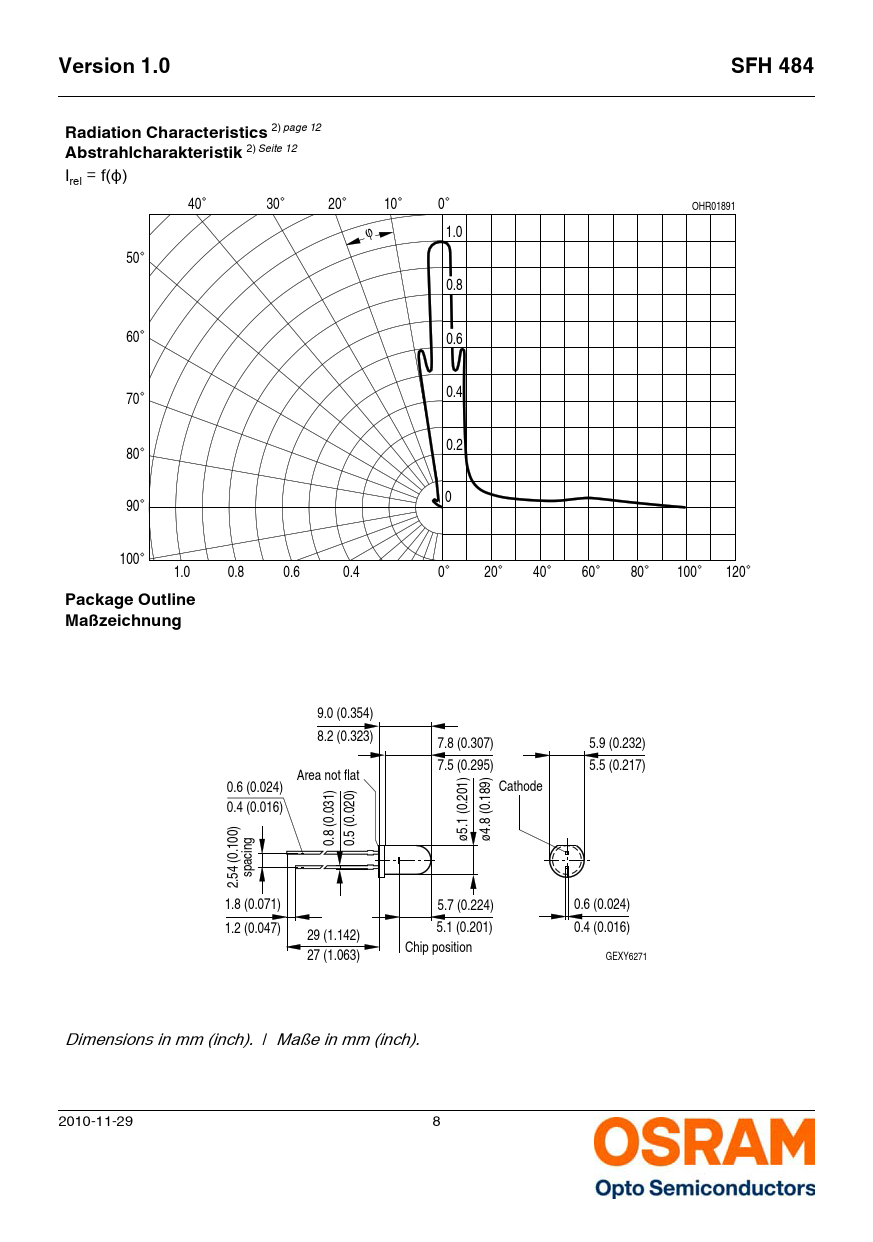

Version 1.0 SFH 484 Radiation Characteristics
2) page 12
Abstrahlcharakteristik
2) Seite 12 Irel = f(ϕ) 40 30 20 10 0 OHR01891 ϕ 1.0 50 0.8 60 0.6 70 0.4 0.2 80 0 90 100 1.0 0.8 0.6 0.4 0 20 40 60 80 100 120
Package Outline Maßzeichnung
9.0 (0.354) 8.2 (0.323) 7.8 (0.307) 5.9 (0.232) 7.5 (0.295) 5.5 (0.217) Area not flat 0.6 (0.024) Cathode 0.4 (0.016) 0.8 (0.031) 0.5 (0.020) ø5.1 (0.201) ø4.8 (0.189) spacing 2.54 (0.100) 1.8 (0.071) 5.7 (0.224) 0.6 (0.024) 1.2 (0.047) 5.1 (0.201) 0.4 (0.016) 29 (1.142) Chip position 27 (1.063) GEXY6271 Dimensions in mm (inch). / Maße in mm (inch). 2010-11-29 8 Document Outline Features: Besondere Merkmale: Applications Anwendungen Notes Hinweise Ordering Information Bestellinformation Maximum Ratings Grenzwerte Characteristics Kennwerte Grouping Gruppierung Relative Spectral Emission Relative spektrale Emission Radiant Intensity Strahlstärke Forward Current Durchlassstrom Forward Current vs. Lead Length between the package bottom and the PCB Flussstrom gg. Beinchenlänge zwischen Gehäuseunterseite und PCB Radiation Characteristics Abstrahlcharakteristik Package Outline Maßzeichnung Recommended Solder Pad Empfohlenes Lötpaddesign Disclaimer Disclaimer Glossary Glossar
