Datasheet AD835 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | 250 MHz, Voltage Output 4-Quadrant Multiplier |
| Pages / Page | 14 / 9 — Data Sheet. AD835. X CH = 6dBm. Y CH = 10dBm RL = 100. +2.5V. 10dB/DIV. … |
| Revision | E |
| File Format / Size | PDF / 259 Kb |
| Document Language | English |
Data Sheet. AD835. X CH = 6dBm. Y CH = 10dBm RL = 100. +2.5V. 10dB/DIV. –2.5V. THIRD ORDER INTERCEPT (dBm). 10ns. 0 0. 100. 120. 140. 160. 180. 200
Model Line for this Datasheet
Text Version of Document
Data Sheet AD835 35 X CH = 6dBm 30 Y CH = 10dBm RL = 100
Ω
+2.5V 25 20 10dB/DIV 15 –2.5V 10 THIRD ORDER INTERCEPT (dBm) 5 1V 10ns
00883-015 00883-017
0 0 20 40 60 80 100 120 140 160 180 200 RF FREQUENCY INPUT TO X CHANNEL (MHz)

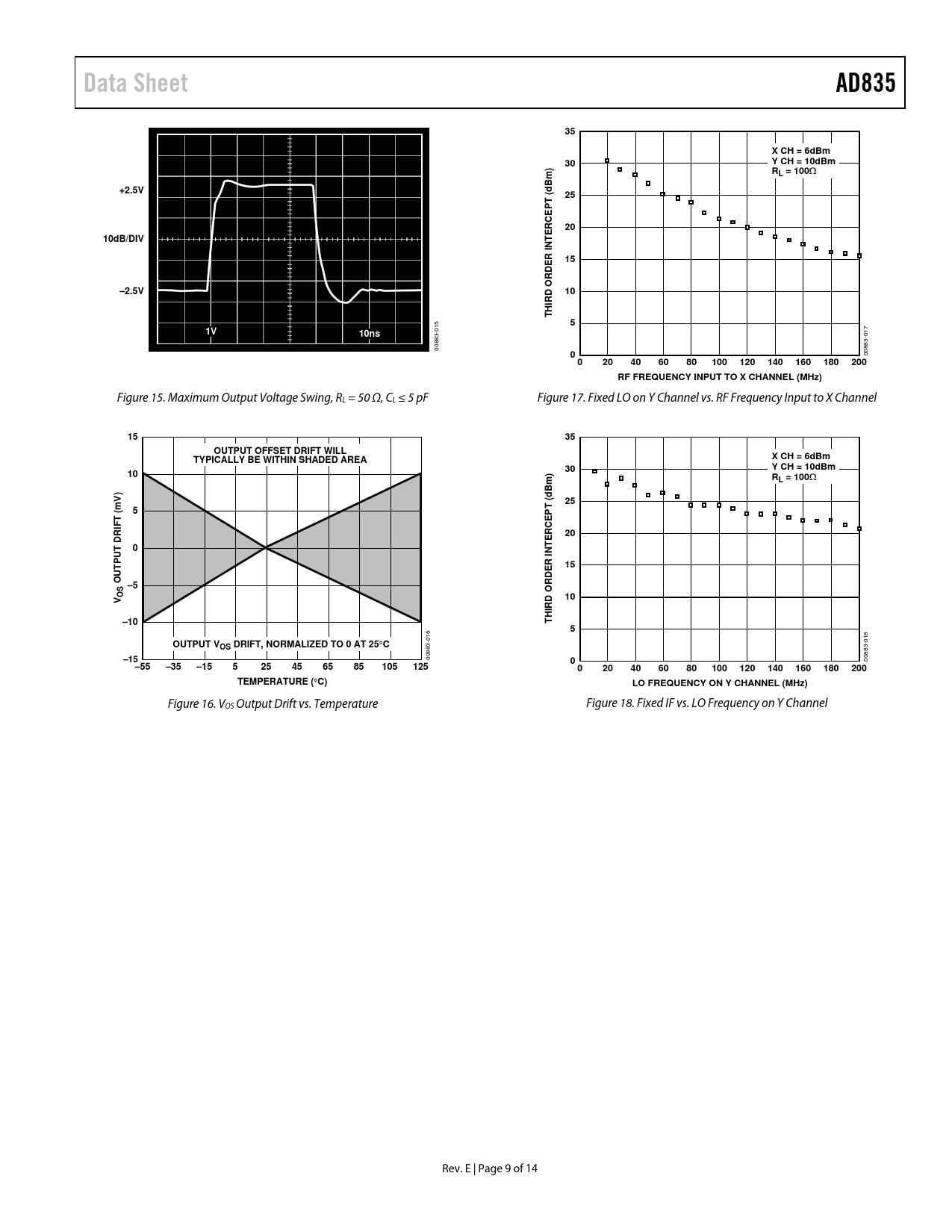

Figure 15. Maximum Output Voltage Swing, RL = 50 Ω, CL ≤ 5 pF Figure 17. Fixed LO on Y Channel vs. RF Frequency Input to X Channel
15 35 OUTPUT OFFSET DRIFT WILL TYPICALLY BE WITHIN SHADED AREA X CH = 6dBm 30 Y CH = 10dBm 10 RL = 100
Ω
25 5 20 0 15 OUTPUT DRIFT (mV) –5 OSV 10 –10 THIRD ORDER INTERCEPT (dBm) 5 OUTPUT VOS DRIFT, NORMALIZED TO 0 AT 25
°
C
00883-016
–15
00883-018
0 –55 –35 –15 5 25 45 65 85 105 125 0 20 40 60 80 100 120 140 160 180 200 TEMPERATURE (
°
C) LO FREQUENCY ON Y CHANNEL (MHz)
Figure 16. VOS Output Drift vs. Temperature Figure 18. Fixed IF vs. LO Frequency on Y Channel Rev. E | Page 9 of 14 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BASIC THEORY SCALING ADJUSTMENT APPLICATIONS INFORMATION MULTIPLIER CONNECTIONS WIDEBAND VOLTAGE-CONTROLLED AMPLIFIER AMPLITUDE MODULATOR SQUARING AND FREQUENCY DOUBLING OUTLINE DIMENSIONS ORDERING GUIDE
