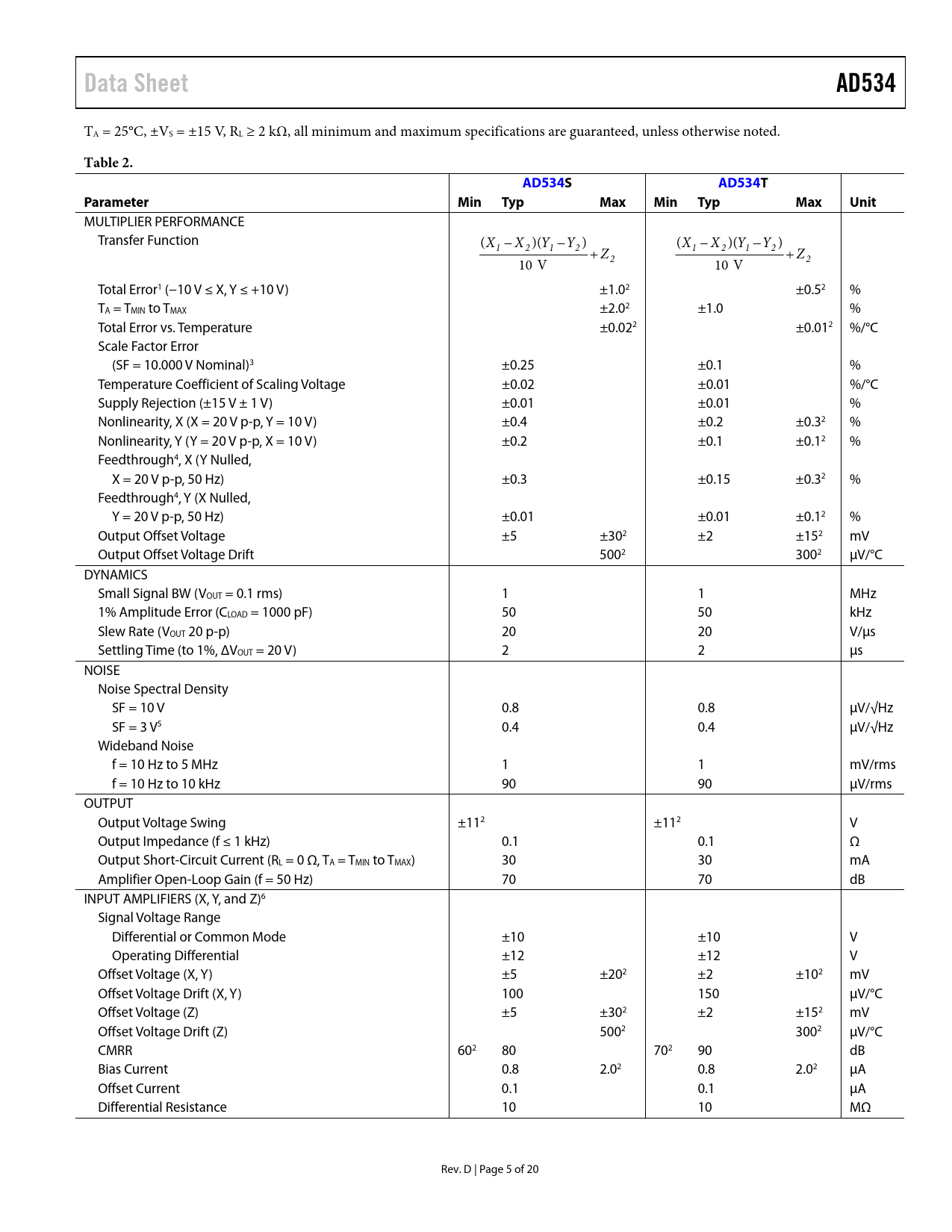

Data Sheet AD534
TA = 25°C, ±VS = ±15 V, RL ≥ 2 kΩ, all minimum and maximum specifications are guaranteed, unless otherwise noted.
Table 2. AD534S AD534T Parameter Min Typ Max Min Typ Max Unit
MULTIPLIER PERFORMANCE Transfer Function (X X Y )( Y ) (X X Y )( Y ) 1 2 1 2 Z 1 2 1 2 Z 2 10 V 2 10 V Total Error1 (−10 V ≤ X, Y ≤ +10 V) ±1.02 ±0.52 % TA = TMIN to TMAX ±2.02 ±1.0 % Total Error vs. Temperature ±0.022 ±0.012 %/°C Scale Factor Error (SF = 10.000 V Nominal)3 ±0.25 ±0.1 % Temperature Coefficient of Scaling Voltage ±0.02 ±0.01 %/°C Supply Rejection (±15 V ± 1 V) ±0.01 ±0.01 % Nonlinearity, X (X = 20 V p-p, Y = 10 V) ±0.4 ±0.2 ±0.32 % Nonlinearity, Y (Y = 20 V p-p, X = 10 V) ±0.2 ±0.1 ±0.12 % Feedthrough4, X (Y Nulled, X = 20 V p-p, 50 Hz) ±0.3 ±0.15 ±0.32 % Feedthrough4, Y (X Nulled, Y = 20 V p-p, 50 Hz) ±0.01 ±0.01 ±0.12 % Output Offset Voltage ±5 ±302 ±2 ±152 mV Output Offset Voltage Drift 5002 3002 μV/°C DYNAMICS Small Signal BW (VOUT = 0.1 rms) 1 1 MHz 1% Amplitude Error (CLOAD = 1000 pF) 50 50 kHz Slew Rate (VOUT 20 p-p) 20 20 V/μs Settling Time (to 1%, ΔVOUT = 20 V) 2 2 μs NOISE Noise Spectral Density SF = 10 V 0.8 0.8 μV/√Hz SF = 3 V5 0.4 0.4 μV/√Hz Wideband Noise f = 10 Hz to 5 MHz 1 1 mV/rms f = 10 Hz to 10 kHz 90 90 μV/rms OUTPUT Output Voltage Swing ±112 ±112 V Output Impedance (f ≤ 1 kHz) 0.1 0.1 Ω Output Short-Circuit Current (RL = 0 Ω, TA = TMIN to TMAX) 30 30 mA Amplifier Open-Loop Gain (f = 50 Hz) 70 70 dB INPUT AMPLIFIERS (X, Y, and Z)6 Signal Voltage Range Differential or Common Mode ±10 ±10 V Operating Differential ±12 ±12 V Offset Voltage (X, Y) ±5 ±202 ±2 ±102 mV Offset Voltage Drift (X, Y) 100 150 μV/°C Offset Voltage (Z) ±5 ±302 ±2 ±152 mV Offset Voltage Drift (Z) 5002 3002 μV/°C CMRR 602 80 702 90 dB Bias Current 0.8 2.02 0.8 2.02 μA Offset Current 0.1 0.1 μA Differential Resistance 10 10 MΩ Rev. D | Page 5 of 20 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Functional Description Provides Gain with Low Noise Operation as a Multiplier Operation as a Squarer Operation as a Divider Operation as a Square Rooter Unprecedented Flexibility Applications Information Outline Dimensions Ordering Guide
