Datasheet XDPL8219 (Infineon)

link to page 43 link to page 43 link to page 41 link to page 44 link to page 43 link to page 43 link to page 44 link to page 42 link to page 43 link to page 43 link to page 41 link to page 42 link to page 44 link to page 42 link to page 43 link to page 41 link to page 43

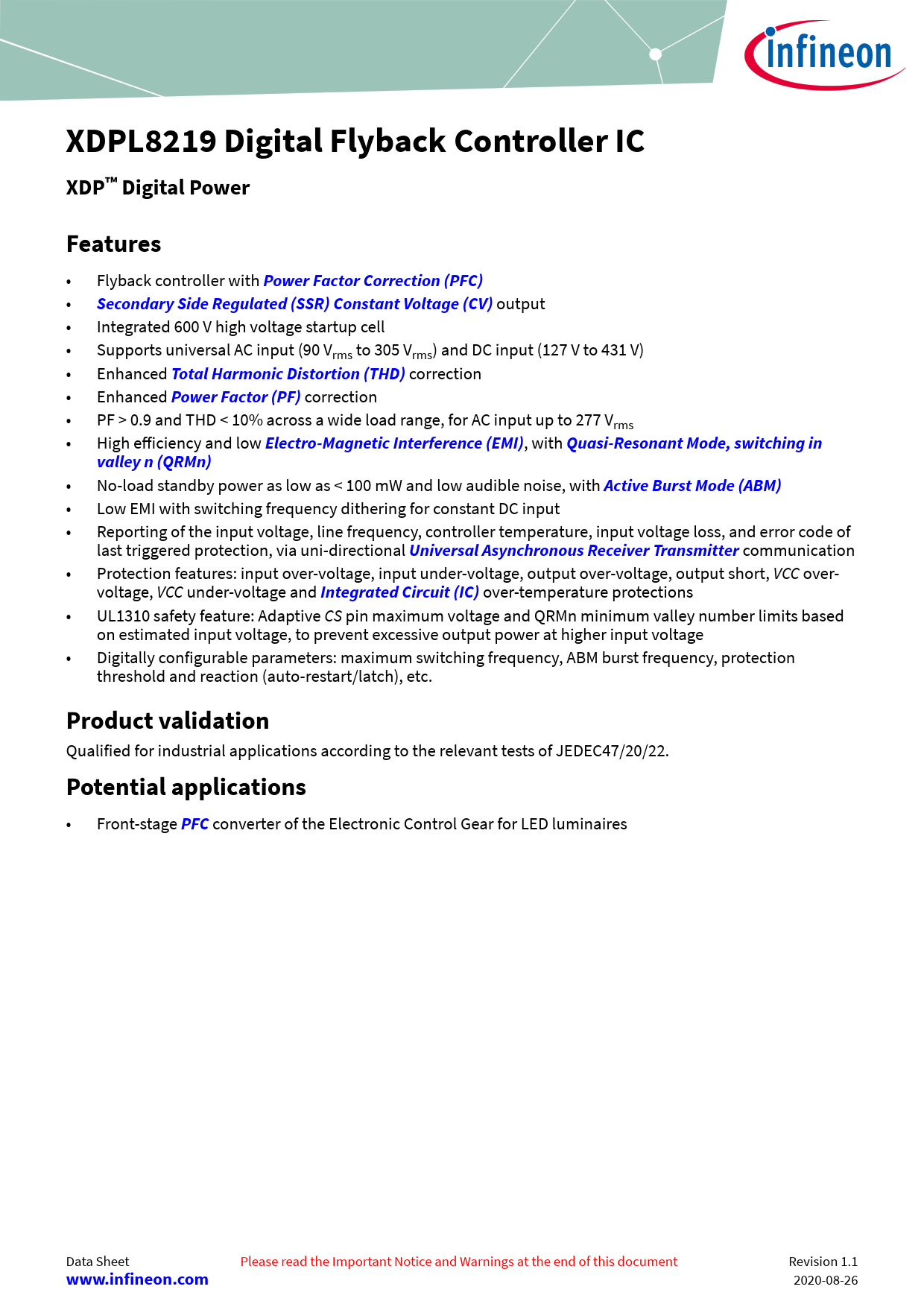

XDPL8219 Digital Flyback Controller IC XDP™ Digital Power Features
• Flyback controller with
Power Factor Correction (PFC)
•
Secondary Side Regulated (SSR) Constant Voltage (CV)
output • Integrated 600 V high voltage startup cell • Supports universal AC input (90 Vrms to 305 Vrms) and DC input (127 V to 431 V) • Enhanced
Total Harmonic Distortion (THD)
correction • Enhanced
Power Factor (PF)
correction • PF > 0.9 and THD < 10% across a wide load range, for AC input up to 277 Vrms • High efficiency and low
Electro-Magnetic Interference (EMI)
, with
Quasi-Resonant Mode, switching in valley n (QRMn)
• No-load standby power as low as < 100 mW and low audible noise, with
Active Burst Mode (ABM)
• Low EMI with switching frequency dithering for constant DC input • Reporting of the input voltage, line frequency, controller temperature, input voltage loss, and error code of last triggered protection, via uni-directional
Universal Asynchronous Receiver Transmitter
communication • Protection features: input over-voltage, input under-voltage, output over-voltage, output short, VCC over- voltage, VCC under-voltage and
Integrated Circuit (IC)
over-temperature protections • UL1310 safety feature: Adaptive CS pin maximum voltage and QRMn minimum valley number limits based on estimated input voltage, to prevent excessive output power at higher input voltage • Digitally configurable parameters: maximum switching frequency, ABM burst frequency, protection threshold and reaction (auto-restart/latch), etc.
Product validation
Qualified for industrial applications according to the relevant tests of JEDEC47/20/22.
Potential applications
• Front-stage
PFC
converter of the Electronic Control Gear for LED luminaires Data Sheet Please read the Important Notice and Warnings at the end of this document Revision 1.1
www.infineon.com
2020-08-26 Document Outline Features Product validation Potential applications Description Table of contents 1 Pin configuration 2 Functional block diagram 3 Functional description 3.1 Startup 3.2 Regulated mode 3.3 Operation cycle 3.4 Line synchronization 3.5 Enhanced power quality 3.6 Switching frequency dithering for constant DC input voltage 3.7 Configurable gate voltage rising slope at GD pin 3.8 UART reporting 3.9 Input voltage and output voltage estimation 3.9.1 Output voltage estimation 3.9.2 Input voltage estimation 3.10 Protection features 3.10.1 Primary MOSFET overcurrent protection 3.10.2 Output undervoltage protection 3.10.3 Output overvoltage protection 3.10.4 Transformer demagnetization time shortage protection 3.10.5 Minimum input voltage startup check and input undervoltage protection 3.10.6 Maximum input voltage startup check and input overvoltage protection 3.10.7 VCC undervoltage lockout 3.10.8 VCC undervoltage protection 3.10.9 VCC overvoltage protection 3.10.10 IC overtemperature protection 3.10.11 Other protections 3.10.12 Protection reactions 3.11 Debug mode 4 List of Parameters 5 Electrical Characteristics and Parameters 5.1 Package Characteristics 5.2 Absolute Maximum Ratings 5.3 Operating Conditions 5.4 DC Electrical characteristics 6 Package Dimensions 7 References 8 Revision History Glossary ABM ADC BOM CCM CRC CV DCM EMI FB GUI HID IC IIR OCP1 OTP PCB PC PFC PF PWM QRM1 QRMn RAM SSR THD UART USB UVLO Disclaimer
