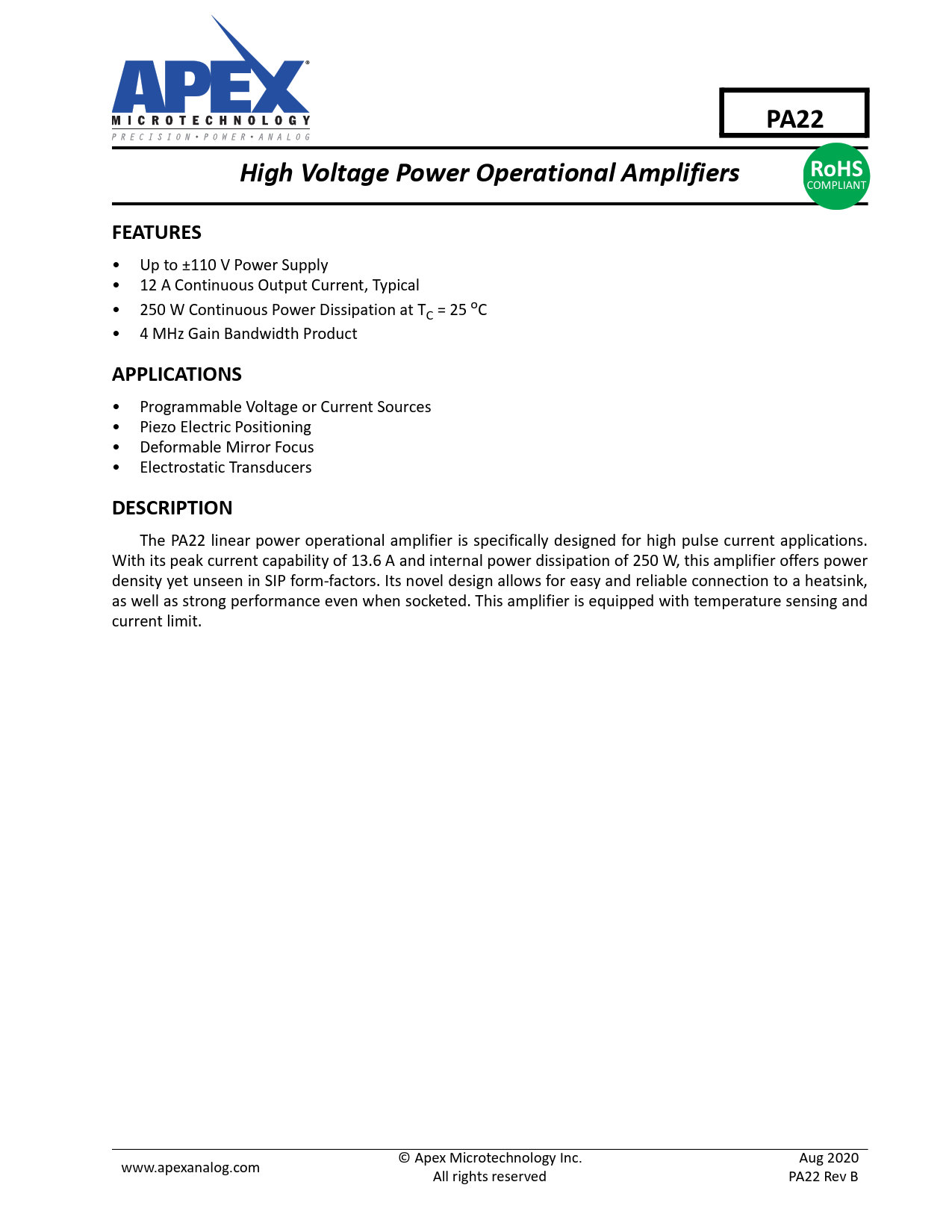

PA22. High Voltage Power Operational Amplifiers. RoHS. FEATURES. APPLICATIONS. DESCRIPTION
Model Line for this Datasheet
Text Version of Document
PA22 High Voltage Power Operational Amplifiers RoHS
COMPLIANT
FEATURES
• Up to ±110 V Power Supply • 12 A Continuous Output Current, Typical • 250 W Continuous Power Dissipation at TC = 25 oC • 4 MHz Gain Bandwidth Product
APPLICATIONS
• Programmable Voltage or Current Sources • Piezo Electric Positioning • Deformable Mirror Focus • Electrostatic Transducers
DESCRIPTION
The PA22 linear power operational amplifier is specifical y designed for high pulse current applications. With its peak current capability of 13.6 A and internal power dissipation of 250 W, this amplifier offers power density yet unseen in SIP form-factors. Its novel design al ows for easy and reliable connection to a heatsink, as wel as strong performance even when socketed. This amplifier is equipped with temperature sensing and current limit. www.apexanalog.com © Apex Microtechnology Inc. Aug 2020 Al rights reserved PA22 Rev B Document Outline Features Applications Description Figure 1: Equivalent Schematic Typical Connection Figure 2: Typical Connection Pinout and Description Table Figure 3: External Connections Specifications Absolute Maximum Ratings Input Gain Output Power Supply Thermal Figure 14: Temp Sense vs Time General Safe operating area (SOA) Figure 15: Safe Operating Area (SOA) typical application Figure 16: Typical Application Schematic current limit overvoltage protection Figure 17: Overvoltage Protection power supply bypassing phase Compensation Temperature Sense Package Options Package Outline (Style LL)
