Datasheet CBRDFA4-100 (Central Semiconductor)
| Manufacturer | Central Semiconductor |
| Description | Surface Mount Silicon 4 Amp Bridge Rectifier |
| Pages / Page | 6 / 1 — CBRDFA4-100. w w w. c e n t r a l s e m i . c o m. SURFACE MOUNT SILICON. … |
| File Format / Size | PDF / 765 Kb |
| Document Language | English |
CBRDFA4-100. w w w. c e n t r a l s e m i . c o m. SURFACE MOUNT SILICON. DESCRIPTION:. 4 AMP BRIDGE RECTIFIER
Model Line for this Datasheet
Text Version of Document

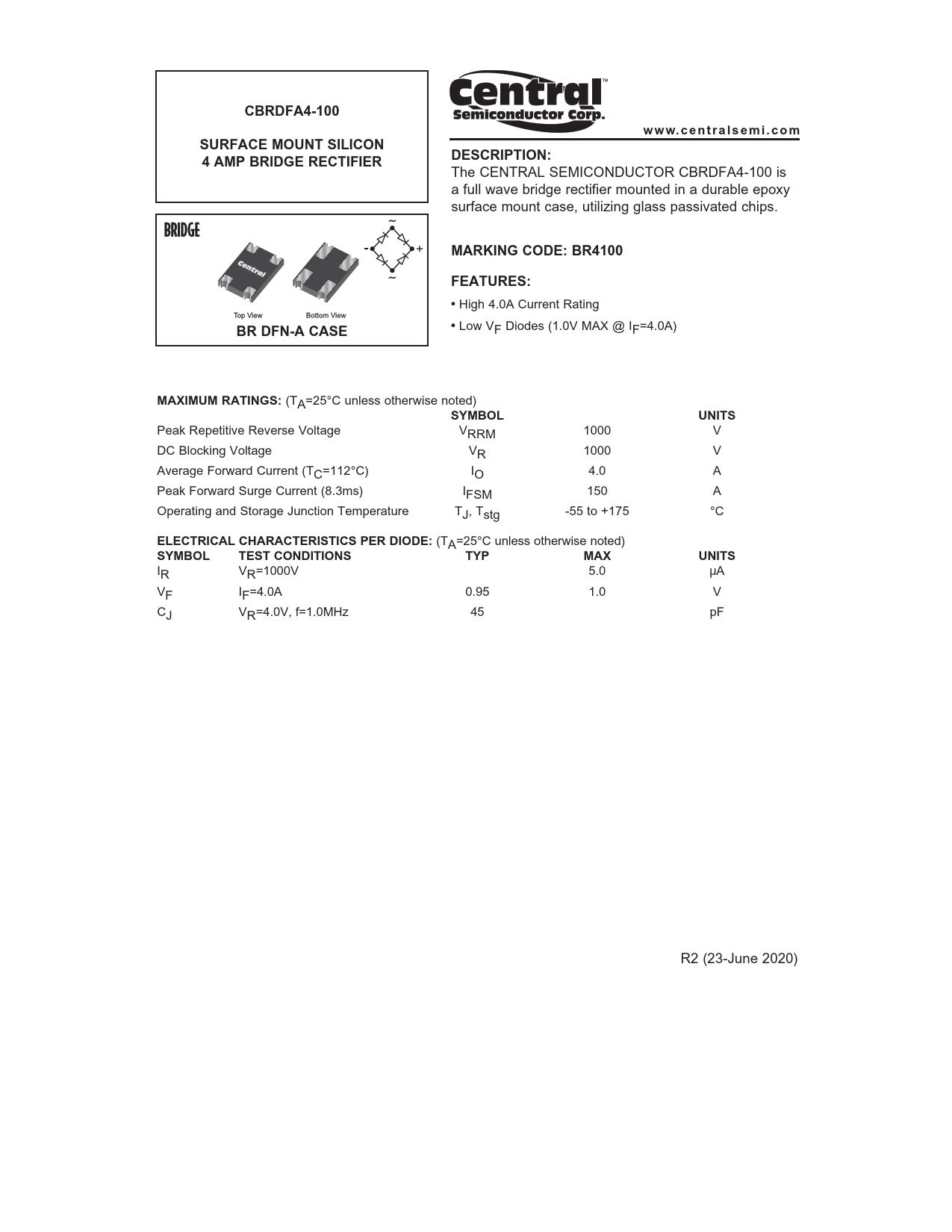

CBRDFA4-100 w w w. c e n t r a l s e m i . c o m SURFACE MOUNT SILICON DESCRIPTION: 4 AMP BRIDGE RECTIFIER
The CENTRAL SEMICONDUCTOR CBRDFA4-100 is a full wave bridge rectifier mounted in a durable epoxy surface mount case, utilizing glass passivated chips.
MARKING CODE: BR4100 FEATURES: •
High 4.0A Current Rating
•
Low VF Diodes (1.0V MAX @ IF=4.0A)
BR DFN-A CASE MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
SYMBOL UNITS
Peak Repetitive Reverse Voltage VRRM 1000 V DC Blocking Voltage VR 1000 V Average Forward Current (TC=112°C) IO 4.0 A Peak Forward Surge Current (8.3ms) IFSM 150 A Operating and Storage Junction Temperature TJ, Tstg -55 to +175 °C
ELECTRICAL CHARACTERISTICS PER DIODE:
(TA=25°C unless otherwise noted)
SYMBOL TEST CONDITIONS TYP MAX UNITS
IR VR=1000V 5.0 µA VF IF=4.0A 0.95 1.0 V CJ VR=4.0V, f=1.0MHz 45 pF R2 (23-June 2020)
