Datasheet ISL9122A (Renesas) - 7
| Manufacturer | Renesas |
| Description | Ultra-Low IQ Buck-Boost Regulator with Bypass |
| Pages / Page | 21 / 7 |
| File Format / Size | PDF / 902 Kb |
| Document Language | English |
Model Line for this Datasheet
Text Version of Document

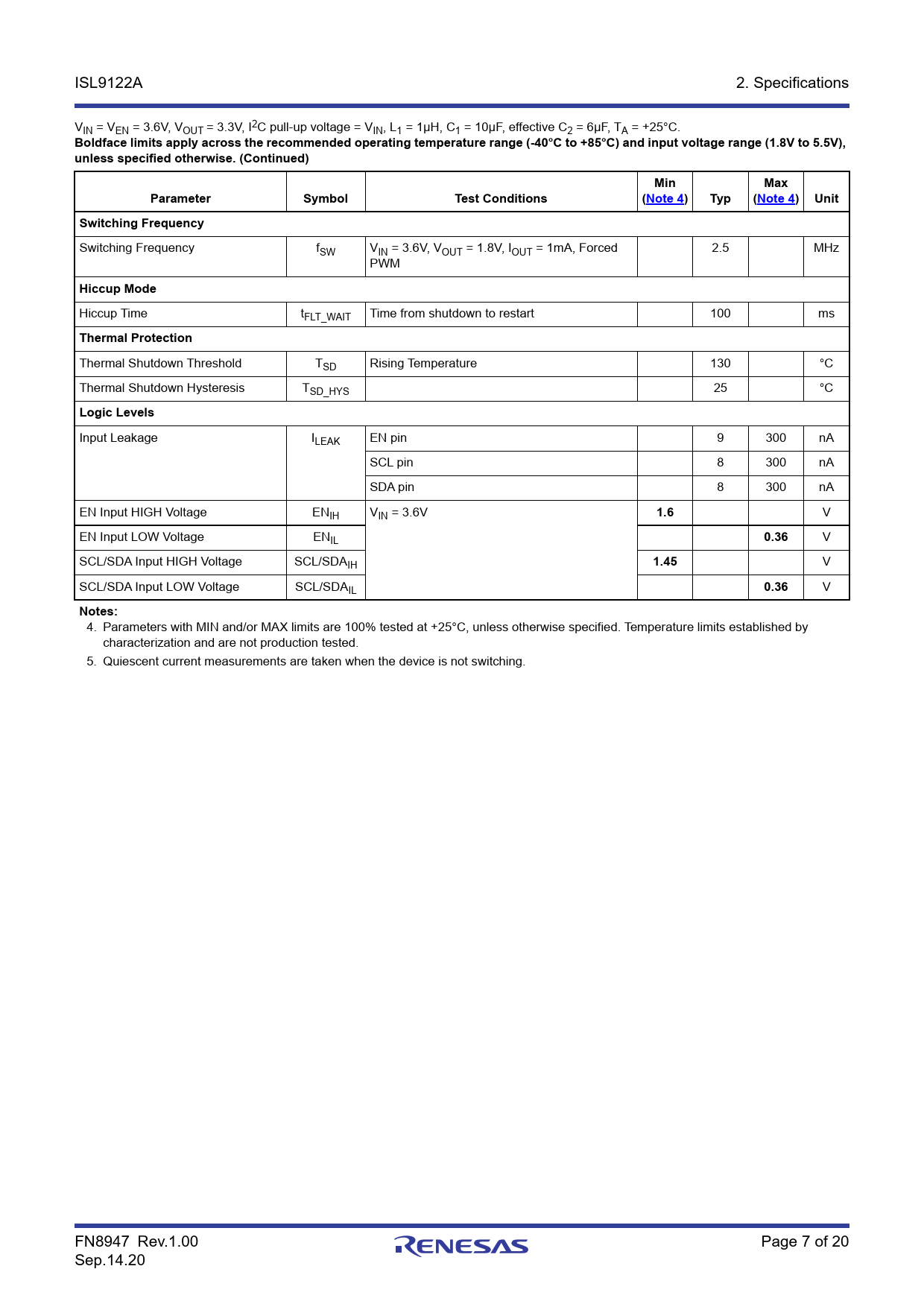

ISL9122A 2. Specifications VIN = VEN = 3.6V, VOUT = 3.3V, I2C pull-up voltage = VIN, L1 = 1µH, C1 = 10µF, effective C2 = 6µF, TA = +25°C.
Boldface limits apply across the recommended operating temperature range (-40°C to +85°C) and input voltage range (1.8V to 5.5V), unless specified otherwise. (Continued) Min Max Parameter Symbol Test Conditions (Note 4) Typ (Note 4) Unit Switching Frequency
Switching Frequency fSW VIN = 3.6V, VOUT = 1.8V, IOUT = 1mA, Forced 2.5 MHz PWM
Hiccup Mode
Hiccup Time tFLT_WAIT Time from shutdown to restart 100 ms
Thermal Protection
Thermal Shutdown Threshold TSD Rising Temperature 130 °C Thermal Shutdown Hysteresis TSD_HYS 25 °C
Logic Levels
Input Leakage ILEAK EN pin 9 300 nA SCL pin 8 300 nA SDA pin 8 300 nA EN Input HIGH Voltage ENIH VIN = 3.6V
1.6
V EN Input LOW Voltage ENIL
0.36
V SCL/SDA Input HIGH Voltage SCL/SDAIH
1.45
V SCL/SDA Input LOW Voltage SCL/SDAIL
0.36
V
