LTC4162-F

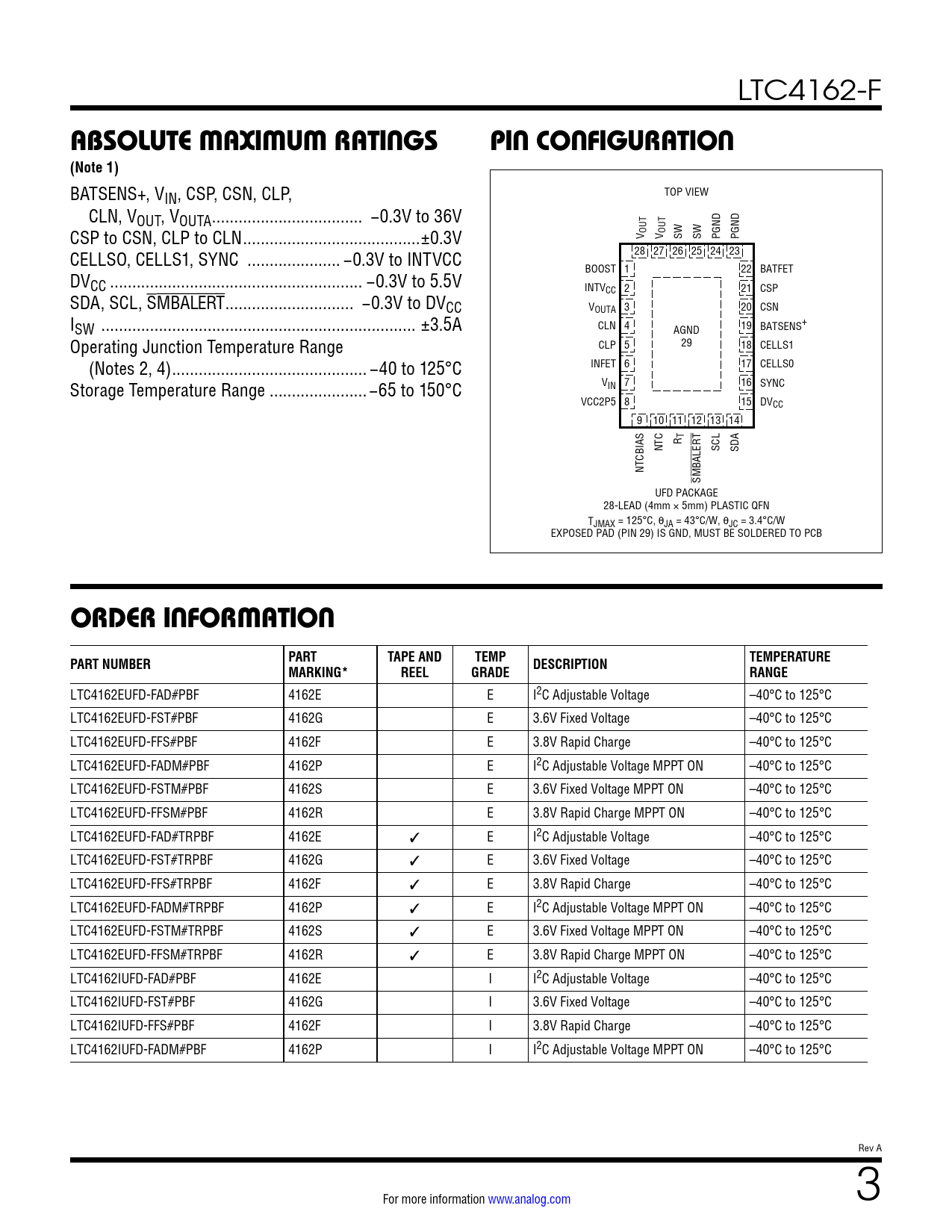

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
BATSENS+, VIN, CSP, CSN, CLP, TOP VIEW CLN, VOUT, VOUTA .. −0.3V to 36V CSP to CSN, CLP to CLN ..±0.3V V OUT V OUT SW SW PGND PGND CELLSO, CELLS1, SYNC ... −0.3V to INTVCC 28 27 26 25 24 23 BOOST 1 22 BATFET DVCC ... −0.3V to 5.5V INTVCC 2 21 CSP SDA, SCL, SMBALERT ... −0.3V to DVCC VOUTA 3 20 CSN ISW ... ±3.5A CLN 4 19 BATSENS+ AGND Operating Junction Temperature Range CLP 5 29 18 CELLS1 (Notes 2, 4) .. −40 to 125°C INFET 6 17 CELLS0 Storage Temperature Range ..−65 to 150°C VIN 7 16 SYNC VCC2P5 8 15 DVCC 9 10 11 12 13 14 R T NTC SCL SDA NTCBIAS SMBALERT UFD PACKAGE 28-LEAD (4mm × 5mm) PLASTIC QFN TJMAX = 125°C, θJA = 43°C/W, θJC = 3.4°C/W EXPOSED PAD (PIN 29) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION PART NUMBER PART TAPE AND TEMP MARKING* REEL GRADE DESCRIPTION TEMPERATURE RANGE
LTC4162EUFD-FAD#PBF 4162E E I2C Adjustable Voltage –40°C to 125°C LTC4162EUFD-FST#PBF 4162G E 3.6V Fixed Voltage –40°C to 125°C LTC4162EUFD-FFS#PBF 4162F E 3.8V Rapid Charge –40°C to 125°C LTC4162EUFD-FADM#PBF 4162P E I2C Adjustable Voltage MPPT ON –40°C to 125°C LTC4162EUFD-FSTM#PBF 4162S E 3.6V Fixed Voltage MPPT ON –40°C to 125°C LTC4162EUFD-FFSM#PBF 4162R E 3.8V Rapid Charge MPPT ON –40°C to 125°C LTC4162EUFD-FAD#TRPBF 4162E ✓ E I2C Adjustable Voltage –40°C to 125°C LTC4162EUFD-FST#TRPBF 4162G ✓ E 3.6V Fixed Voltage –40°C to 125°C LTC4162EUFD-FFS#TRPBF 4162F ✓ E 3.8V Rapid Charge –40°C to 125°C LTC4162EUFD-FADM#TRPBF 4162P ✓ E I2C Adjustable Voltage MPPT ON –40°C to 125°C LTC4162EUFD-FSTM#TRPBF 4162S ✓ E 3.6V Fixed Voltage MPPT ON –40°C to 125°C LTC4162EUFD-FFSM#TRPBF 4162R ✓ E 3.8V Rapid Charge MPPT ON –40°C to 125°C LTC4162IUFD-FAD#PBF 4162E I I2C Adjustable Voltage –40°C to 125°C LTC4162IUFD-FST#PBF 4162G I 3.6V Fixed Voltage –40°C to 125°C LTC4162IUFD-FFS#PBF 4162F I 3.8V Rapid Charge –40°C to 125°C LTC4162IUFD-FADM#PBF 4162P I I2C Adjustable Voltage MPPT ON –40°C to 125°C Rev A For more information www.analog.com 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram ESD Diagram Timing Diagram Operation Applications Information Register Descriptions Typical Applications Package Description Revision History Typical Application Related Parts
