DescriptionQuad 350 MHz 24 V Amplifier
Pages / Page12 / 8 — AD8024. 50mV. 20ns. 500mV. OUT. 200mV. VIN. VOUT
RevisionC
File Format / SizePDF / 172 Kb
Document LanguageEnglish

AD8024. 50mV. 20ns. 500mV. OUT. 200mV. VIN. VOUT

AD8024 50mV 20ns 500mV OUT 200mV VIN VOUT

Model Line for this Datasheet

Text Version of Document

AD8024 50mV 20ns 500mV 20ns V V IN IN V V OUT OUT 500mV 500mV

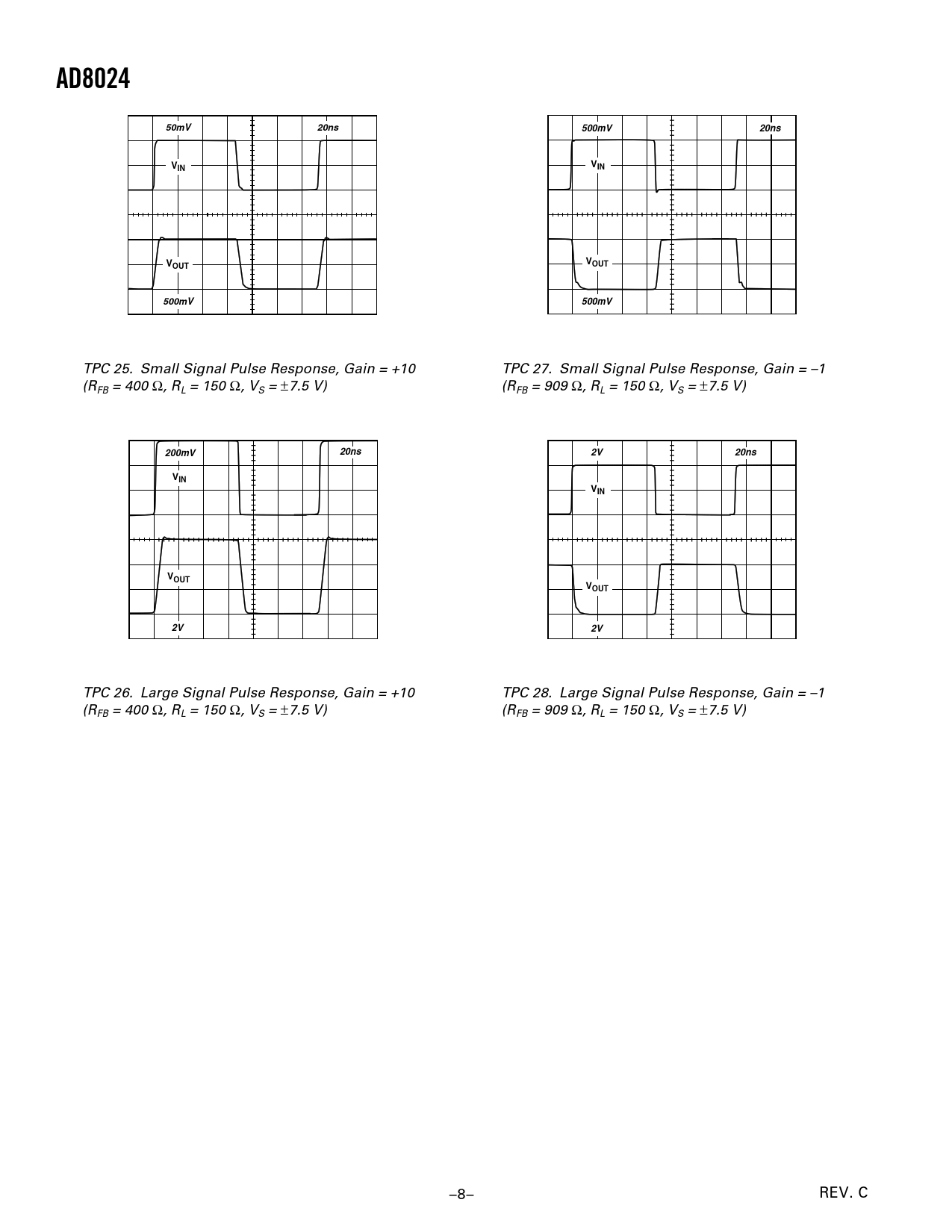

TPC 25. Small Signal Pulse Response, Gain = +10 TPC 27. Small Signal Pulse Response, Gain = –1 (RFB = 400 Ω, RL = 150 Ω, VS = ±7.5 V) (RFB = 909 Ω, RL = 150 Ω, VS = ±7.5 V)
200mV 20ns 2V 20ns VIN VIN VOUT VOUT 2V 2V
TPC 26. Large Signal Pulse Response, Gain = +10 TPC 28. Large Signal Pulse Response, Gain = –1 (RFB = 400 Ω, RL = 150 Ω, VS = ±7.5 V) (RFB = 909 Ω, RL = 150 Ω, VS = ±7.5 V) –8– REV. C
