Datasheet AD8009 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | 1 GHz, 5,500 V/µs Low Distortion Amplifier |
| Pages / Page | 16 / 9 — AD8009. 2.2. G = +2 RF = 301. 2.0. COMP. RL = 150. 49.9. O = 2V p-p. 1.8. … |
| Revision | F |
| File Format / Size | PDF / 296 Kb |
| Document Language | English |

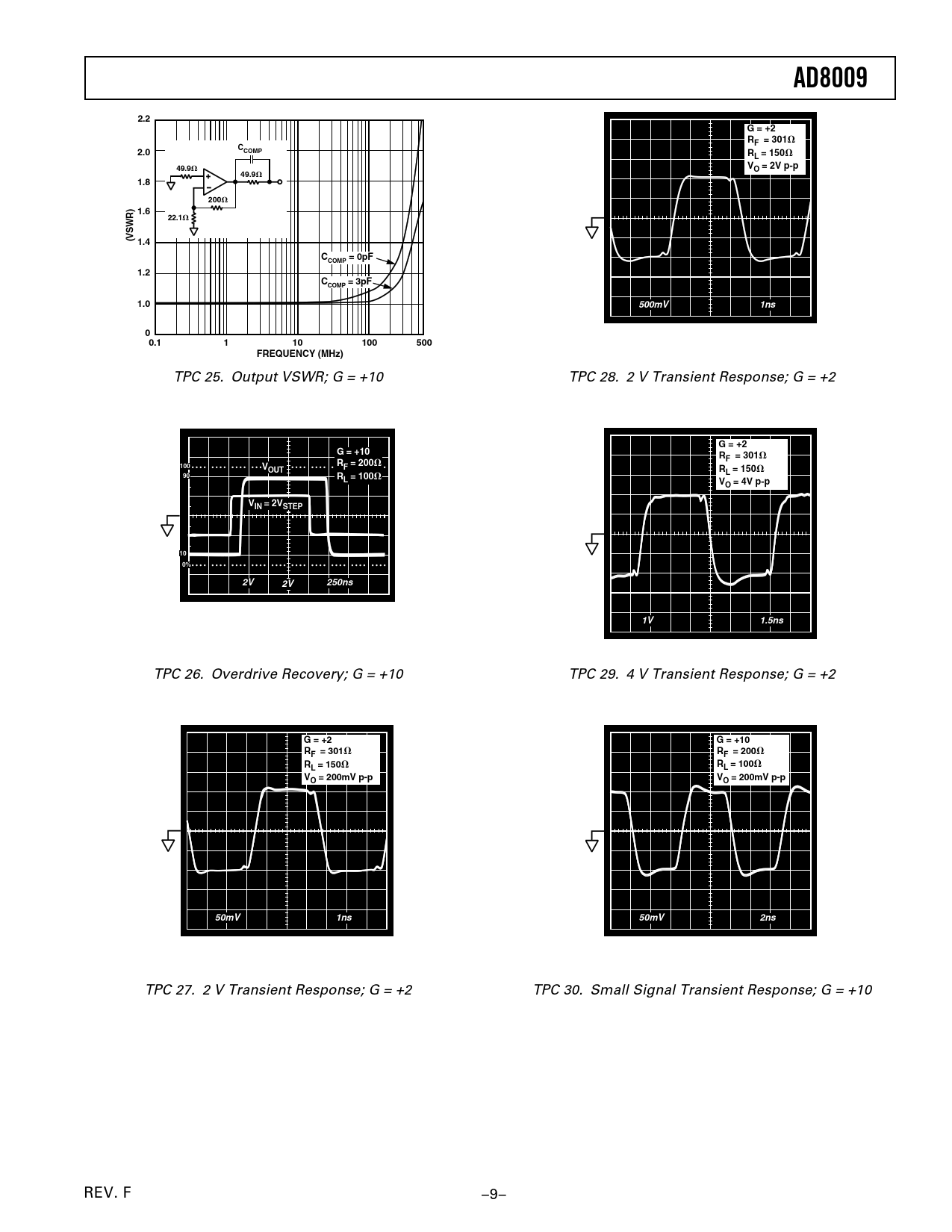

AD8009. 2.2. G = +2 RF = 301. 2.0. COMP. RL = 150. 49.9. O = 2V p-p. 1.8. 200. ) 1.6. 22.1. (VSWR 1.4. = 0pF. 1.2. = 3pF. 1.0. 500mV. 1ns. 0.1. 100. 500
Model Line for this Datasheet
Text Version of Document
AD8009 2.2 G = +2 RF = 301 C 2.0 COMP RL = 150 49.9 V O = 2V p-p 49.9 1.8 200 ) 1.6 22.1 (VSWR 1.4 C = 0pF COMP 1.2 C = 3pF COMP 1.0 500mV 1ns 0 0.1 1 10 100 500 FREQUENCY (MHz)
TPC 25. Output VSWR; G = +10 TPC 28. 2 V Transient Response; G = +2
G = +2 G = +10 RF = 301 100 V R OUT F = 200 RL = 150 90 RL = 100 V O = 4V p-p VIN = 2VSTEP 10 0% 2V 2V 250ns 1V 1.5ns
TPC 26. Overdrive Recovery; G = +10 TPC 29. 4 V Transient Response; G = +2
G = +2 G = +10 RF = 301 RF = 200 RL = 150 RL = 100 V O = 200mV p-p V O = 200mV p-p 50mV 1ns 50mV 2ns
TPC 27. 2 V Transient Response; G = +2 TPC 30. Small Signal Transient Response; G = +10 REV. F –9– Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS PRODUCT DESCRIPTION SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION ORDERING GUIDE Typical Performance Characteristics APPLICATIONS RF Filter Driver RGB Monitor Driver Driving a Capacitive Load OUTLINE DIMENSIONS Revision History
