Datasheet OP285 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | Dual 9 MHz Precision Operational Amplifier |
| Pages / Page | 15 / 3 — OP285. ABSOLUTE MAXIMUM RATINGS1. Package Type. Unit. ESD CAUTION |
| Revision | C |
| File Format / Size | PDF / 328 Kb |
| Document Language | English |

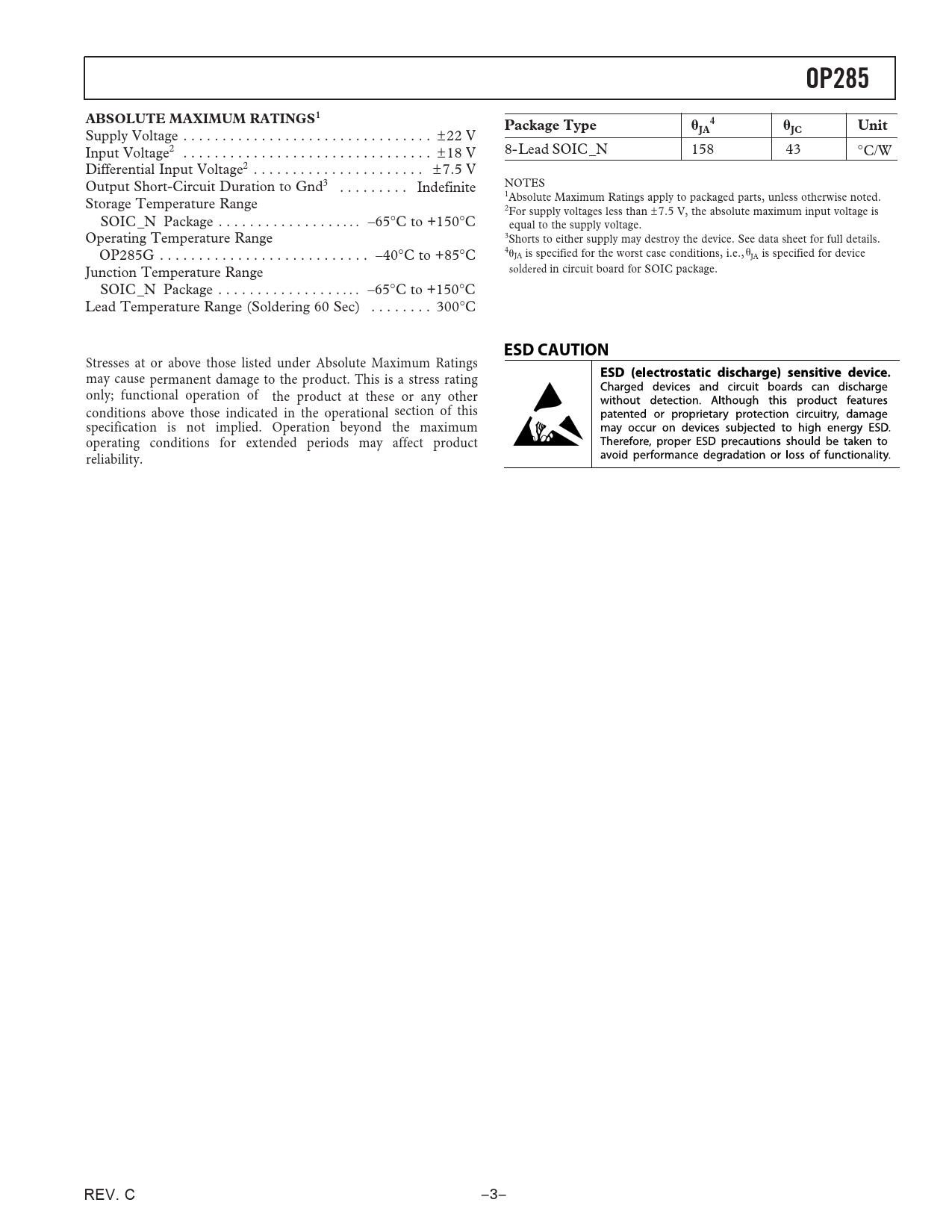

OP285. ABSOLUTE MAXIMUM RATINGS1. Package Type. Unit. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
OP285 ABSOLUTE MAXIMUM RATINGS1 Package Type 4
Supply Voltage . ± 22 V
JA JC Unit
Input Voltage2 . ± 18 V 8- Lead SOIC _N 158 43 °C/W Differential Input Voltage2 . ± 7.5 V Output Short-Circuit Duration to Gnd3 . Indefinite NOTES 1Absolute Maximum Ratings apply to packaged parts, unless otherwise noted. Storage Temperature Range 2For supply voltages less than ±7.5 V, the absolute maximum input voltage is SOIC _N Package . –65°C to +150°C equal to the supply voltage. Operating Temperature Range 3Shorts to either supply may destroy the device. See data sheet for full details. OP285G . –40°C to +85°C 4 JA is specified for the worst case conditions, i.e., JA is specified for device Junction Temperature Range soldered in circuit board for SOIC package. SOIC _N Package . –65°C to +150°C Lead Temperature Range (Soldering 60 Sec) . 300°C
ESD CAUTION
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. REV. C –3–
