Datasheet MBN52832 (Murata) - 10

ManufacturerMurata
DescriptionBLE Module
Pages / Page34 / 10 — Table 2.2 Pinouts. Pin # Pin Name. Nordic IC Pin. I/O. Description. …
File Format / SizePDF / 1.3 Mb
Document LanguageEnglish

Table 2.2 Pinouts. Pin # Pin Name. Nordic IC Pin. I/O. Description. www.murata.com

Table 2.2 Pinouts Pin # Pin Name Nordic IC Pin I/O Description www.murata.com

Model Line for this Datasheet

Text Version of Document

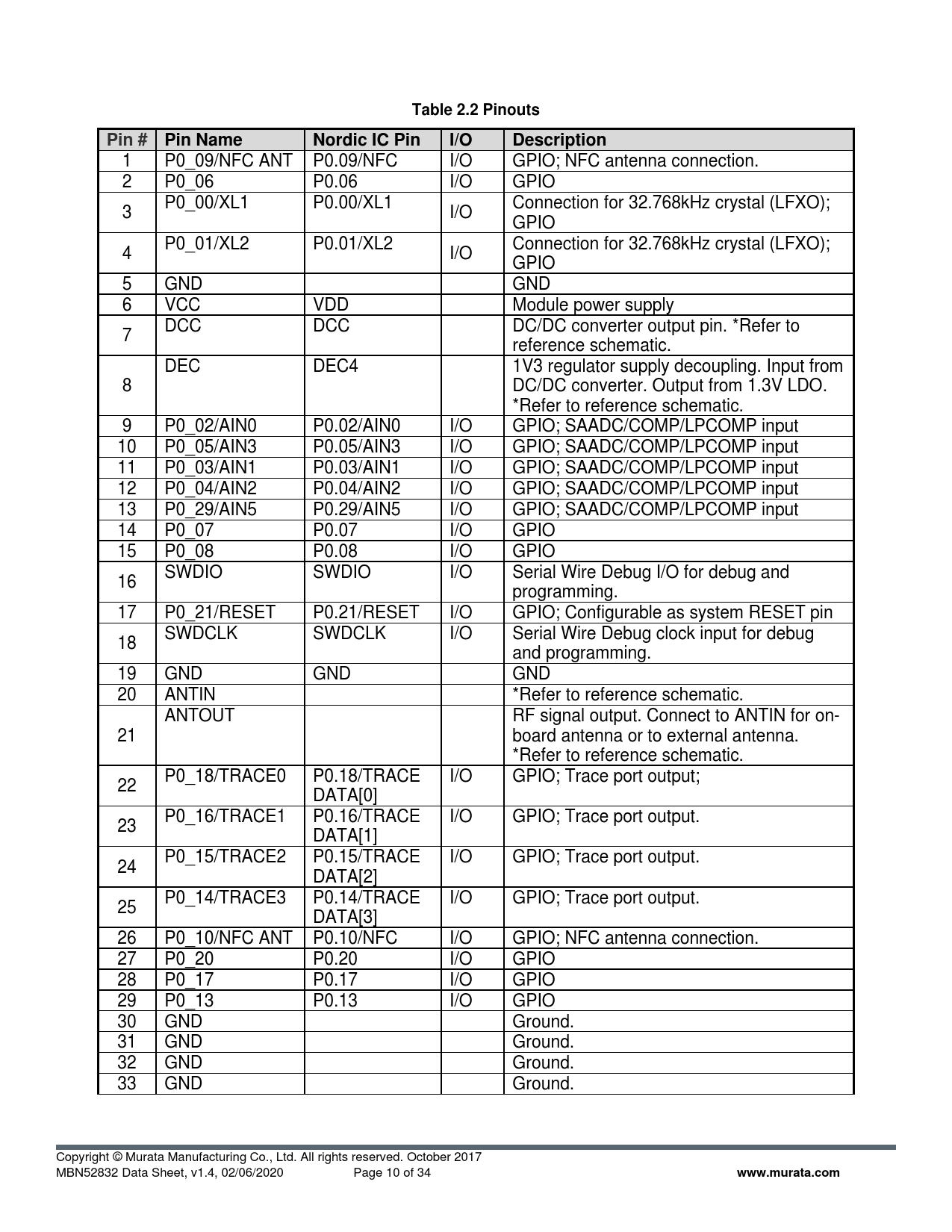

Table 2.2 Pinouts Pin # Pin Name Nordic IC Pin I/O Description
1 P0_09/NFC ANT P0.09/NFC I/O GPIO; NFC antenna connection. 2 P0_06 P0.06 I/O GPIO P0_00/XL1 P0.00/XL1 Connection for 32.768kHz crystal (LFXO); 3 I/O GPIO P0_01/XL2 P0.01/XL2 Connection for 32.768kHz crystal (LFXO); 4 I/O GPIO 5 GND GND 6 VCC VDD Module power supply DCC DCC DC/DC converter output pin. *Refer to 7 reference schematic. DEC DEC4 1V3 regulator supply decoupling. Input from 8 DC/DC converter. Output from 1.3V LDO. *Refer to reference schematic. 9 P0_02/AIN0 P0.02/AIN0 I/O GPIO; SAADC/COMP/LPCOMP input 10 P0_05/AIN3 P0.05/AIN3 I/O GPIO; SAADC/COMP/LPCOMP input 11 P0_03/AIN1 P0.03/AIN1 I/O GPIO; SAADC/COMP/LPCOMP input 12 P0_04/AIN2 P0.04/AIN2 I/O GPIO; SAADC/COMP/LPCOMP input 13 P0_29/AIN5 P0.29/AIN5 I/O GPIO; SAADC/COMP/LPCOMP input 14 P0_07 P0.07 I/O GPIO 15 P0_08 P0.08 I/O GPIO SWDIO SWDIO I/O Serial Wire Debug I/O for debug and 16 programming. 17 P0_21/RESET P0.21/RESET I/O GPIO; Configurable as system RESET pin SWDCLK SWDCLK I/O Serial Wire Debug clock input for debug 18 and programming. 19 GND GND GND 20 ANTIN *Refer to reference schematic. ANTOUT RF signal output. Connect to ANTIN for on- 21 board antenna or to external antenna. *Refer to reference schematic. P0_18/TRACE0 P0.18/TRACE I/O GPIO; Trace port output; 22 DATA[0] P0_16/TRACE1 P0.16/TRACE I/O GPIO; Trace port output. 23 DATA[1] P0_15/TRACE2 P0.15/TRACE I/O GPIO; Trace port output. 24 DATA[2] P0_14/TRACE3 P0.14/TRACE I/O GPIO; Trace port output. 25 DATA[3] 26 P0_10/NFC ANT P0.10/NFC I/O GPIO; NFC antenna connection. 27 P0_20 P0.20 I/O GPIO 28 P0_17 P0.17 I/O GPIO 29 P0_13 P0.13 I/O GPIO 30 GND Ground. 31 GND Ground. 32 GND Ground. 33 GND Ground. Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2017 MBN52832 Data Sheet, v1.4, 02/06/2020 Page 10 of 34
