Datasheet PIC16F8X: PIC16F83, PIC16F84, PIC16CR83, PIC16CR84 (Microchip) - 4
| Manufacturer | Microchip |
| Description | 18-pin Flash/EEPROM 8-Bit Microcontrollers |
| Pages / Page | 128 / 4 — PIC16F8X. TABLE 1-1. PIC16F8X FAMILY OF DEVICES. PIC16F83. PIC16CR83. … |
| File Format / Size | PDF / 1.8 Mb |
| Document Language | English |
PIC16F8X. TABLE 1-1. PIC16F8X FAMILY OF DEVICES. PIC16F83. PIC16CR83. PIC16F84. PIC16CR84. Clock. Memory. Peripherals. Features
Model Line for this Datasheet
Text Version of Document

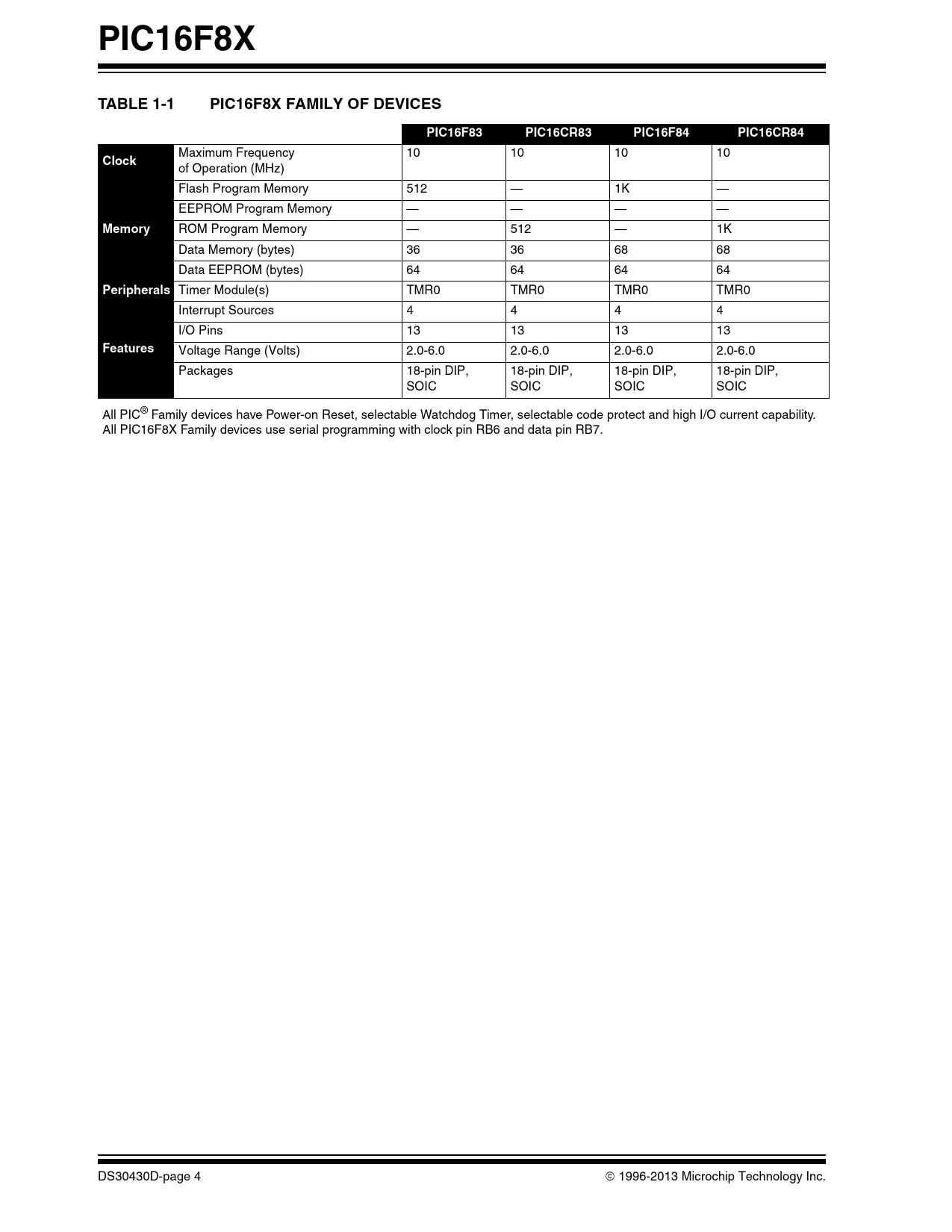

PIC16F8X TABLE 1-1 PIC16F8X FAMILY OF DEVICES PIC16F83 PIC16CR83 PIC16F84 PIC16CR84
Maximum Frequency 10 10 10 10
Clock
of Operation (MHz) Flash Program Memory 512 — 1K — EEPROM Program Memory — — — —
Memory
ROM Program Memory — 512 — 1K Data Memory (bytes) 36 36 68 68 Data EEPROM (bytes) 64 64 64 64
Peripherals
Timer Module(s) TMR0 TMR0 TMR0 TMR0 Interrupt Sources 4 4 4 4 I/O Pins 13 13 13 13
Features
Voltage Range (Volts) 2.0-6.0 2.0-6.0 2.0-6.0 2.0-6.0 Packages 18-pin DIP, 18-pin DIP, 18-pin DIP, 18-pin DIP, SOIC SOIC SOIC SOIC All PIC® Family devices have Power-on Reset, selectable Watchdog Timer, selectable code protect and high I/O current capability. All PIC16F8X Family devices use serial programming with clock pin RB6 and data pin RB7. DS30430D-page 4 1996-2013 Microchip Technology Inc.
