ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
Text Version of Document
LTC3882

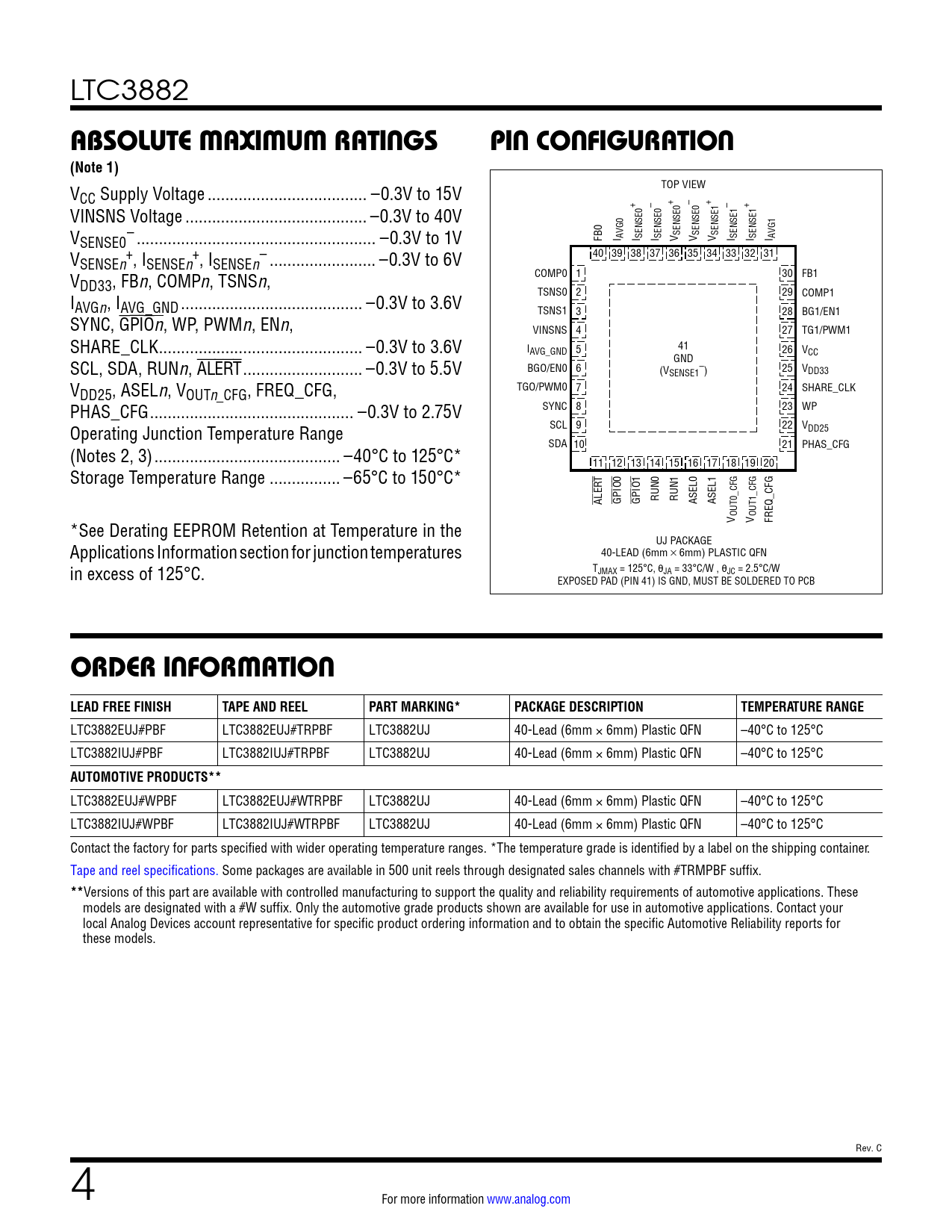

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
V TOP VIEW CC Supply Voltage .. –0.3V to 15V + – + VINSNS Voltage ... –0.3V to 40V + – – + V – SENSE0 .. –0.3V to 1V FB0 I AVG0 I SENSE0 I SENSE0 V SENSE0 V SENSE0 V SENSE1 I SENSE1 I SENSE1 I AVG1 V + + – 40 39 38 37 36 35 34 33 32 31 SENSEn , ISENSEn , ISENSEn .. –0.3V to 6V V COMP0 1 30 FB1 DD33, FBn, COMPn, TSNSn, I TSNS0 2 29 COMP1 AVGn, IAVG_GND ... –0.3V to 3.6V TSNS1 3 28 BG1/EN1 SYNC, GPIOn, WP, PWMn, ENn, VINSNS 4 27 TG1/PWM1 SHARE_CLK .. –0.3V to 3.6V 41 IAVG_GND 5 26 VCC SCL, SDA, RUNn, ALERT ... –0.3V to 5.5V GND BGO/EN0 6 (V – SENSE1 ) 25 VDD33 VDD25, ASELn, VOUTn_CFG, FREQ_CFG, TGO/PWM0 7 24 SHARE_CLK PHAS_CFG .. –0.3V to 2.75V SYNC 8 23 WP Operating Junction Temperature Range SCL 9 22 VDD25 (Notes 2, 3) .. –40°C to 125°C* SDA 10 21 PHAS_CFG 11 12 13 14 15 16 17 18 19 20 Storage Temperature Range .. –65°C to 150°C* T ALER GPIO0 GPIO1 RUN0 RUN1 ASEL0 ASEL1 *See Derating EEPROM Retention at Temperature in the V OUT0_CFG V OUT1_CFG FREQ_CFG Applications Information section for junction temperatures UJ PACKAGE 40-LEAD (6mm × 6mm) PLASTIC QFN in excess of 125°C. TJMAX = 125°C, θJA = 33°C/W , θJC = 2.5°C/W EXPOSED PAD (PIN 41) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3882EUJ#PBF LTC3882EUJ#TRPBF LTC3882UJ 40-Lead (6mm × 6mm) Plastic QFN –40°C to 125°C LTC3882IUJ#PBF LTC3882IUJ#TRPBF LTC3882UJ 40-Lead (6mm × 6mm) Plastic QFN –40°C to 125°C
AUTOMOTIVE PRODUCTS**
LTC3882EUJ#WPBF LTC3882EUJ#WTRPBF LTC3882UJ 40-Lead (6mm × 6mm) Plastic QFN –40°C to 125°C LTC3882IUJ#WPBF LTC3882IUJ#WTRPBF LTC3882UJ 40-Lead (6mm × 6mm) Plastic QFN –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. C 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Block Diagram Test Circuit Timing Diagram Operation Overview Main Control Loop Power-Up and Initialization Soft-Start Time-Based Output Sequencing Output Ramping Control Voltage-Based Output Sequencing Output Disable Minimum Output Disable Times Output Short Cycle Light Load Current Operation Switching Frequency and Phase PolyPhase Load Sharing Active Voltage Positioning Input Supply Monitoring Output Voltage Sensing and Monitoring Output Current Sensing and Monitoring External and Internal Temperature Sense Resistor Configuration Pins Internal EEPROM with ECC and CRC Fault Detection Input Supply Faults Hardwired PWM Response to VOUT Faults Power Good Indication Hardwired PWM Response to IOUT Faults Hardwired PWM Response to Temperature Faults Hardwired PWM Response to Timing Faults External Faults Fault Handling Status Registers and ALERT Masking Mapping Faults to GPIO Pins Other GPIO Uses Fault Logging Factory Default Operation Serial Interface Serial Bus Addressing Serial Bus Timeout Serial Communication Errors PMBus Command Summary PMBus Commands Data Formats Applications Information Efficiency Considerations PWM Frequency and Inductor Selection Power MOSFET Selection MOSFET Driver Selection Using PWM Protocols CIN Selection COUT Selection Feedback Loop Compensation PCB Layout Considerations Output Current Sensing Output Voltage Sensing Soft-Start and Stop Time-Based Output Sequencing and Ramping Voltage-Based Output Sequencing Using Output Voltage Servo Using AVP PWM Frequency Synchronization PolyPhase Operation and Load Sharing External Temperature Sense Resistor Configuration Pins Internal Regulator Outputs IC Junction Temperature Derating EEPROM Retention at Temperature Configuring Open-Drain Pins PMBus Communication and Command Processing Status and Fault Log Management LTpowerPlay – An Interactive Digital Power GUI Interfacing to the DC1613 Design Example PMBus COMMAND DETAILS Addressing and Write Protect PAGE PAGE_PLUS_WRITE PAGE_PLUS_READ WRITE_PROTECT MFR_ADDRESS MFR_RAIL_ADDRESS General Device Configuration PMBUS_REVISION CAPABILITY On, Off and Margin Control ON_OFF_CONFIG MFR_CONFIG_ALL_LTC3882 OPERATION MFR_RESET PWM Configuration FREQUENCY_SWITCH MFR_PWM_CONFIG_LTC3882 MFR_CHAN_CONFIG_LTC3882 MFR_PWM_MODE_LTC3882 Input Voltage and Limits VIN_ON VIN_OFF VIN_OV_FAULT_LIMIT VIN_UV_WARN_LIMIT Output Voltage and Limits VOUT_MODE VOUT_COMMAND MFR_VOUT_MAX VOUT_MAX MFR_VOUT_AVP VOUT_MARGIN_HIGH VOUT_MARGIN_LOW VOUT_OV_FAULT_LIMIT VOUT_OV_WARN_LIMIT VOUT_UV_WARN_LIMIT VOUT_UV_FAULT_LIMIT Output Current and Limits IOUT_CAL_GAIN MFR_IOUT_CAL_GAIN_TC IOUT_OC_FAULT_LIMIT IOUT_OC_WARN_LIMIT Output Timing, Delays, and Ramping MFR_RESTART_DELAY TON_DELAY TON_RISE TON_MAX_FAULT_LIMIT VOUT_TRANSITION_RATE TOFF_DELAY TOFF_FALL TOFF_MAX_WARN_LIMIT External Temperature and Limits MFR_TEMP_1_GAIN MFR_TEMP_1_OFFSET OT_FAULT_LIMIT OT_WARN_LIMIT Status Reporting STATUS_BYTE UT_FAULT_LIMIT STATUS_WORD STATUS_VOUT STATUS_IOUT STATUS_INPUT STATUS_TEMPERATURE STATUS_CML STATUS_MFR_SPECIFIC MFR_PADS_LTC3882 MFR_COMMON MFR_INFO CLEAR_FAULTS Telemetry READ_VIN MFR_VIN_PEAK READ_VOUT MFR_VOUT_PEAK READ_IOUT MFR_IOUT_PEAK READ_POUT READ_TEMPERATURE_1 MFR_TEMPERATURE_1_PEAK READ_TEMPERATURE_2 MFR_TEMPERATURE_2_PEAK READ_DUTY_CYCLE READ_FREQUENCY MFR_CLEAR_PEAKS Fault Response and Communication VIN_OV_FAULT_RESPONSE VOUT_OV_FAULT_RESPONSE VOUT_UV_FAULT_RESPONSE IOUT_OC_FAULT_RESPONSE OT_FAULT_RESPONSE UT_FAULT_RESPONSE MFR_OT_FAULT_RESPONSE TON_MAX_FAULT_RESPONSE MFR_RETRY_DELAY SMBALERT_MASK MFR_GPIO_PROPAGATE_LTC3882 MFR_GPIO_RESPONSE MFR_FAULT_LOG Fault Log Operation MFR_FAULT_LOG_CLEAR EEPROM User Access STORE_USER_ALL RESTORE_USER_ALL MFR_COMPARE_USER_ALL MFR_FAULT_LOG_STORE MFR_EE_xxxx USER_DATA_0x Unit Identification MFR_ID MFR_MODEL MFR_SERIAL MFR_SPECIAL_ID Typical Applications Package Description Revision History Typical Application Related Parts
