MYTNC1R86RELA2RA
Document Category: Datasheet UltraBK™ 6A DC–DC Converter Module
Typical Performance Characteristics
(VIN=12V Ta=25°C)

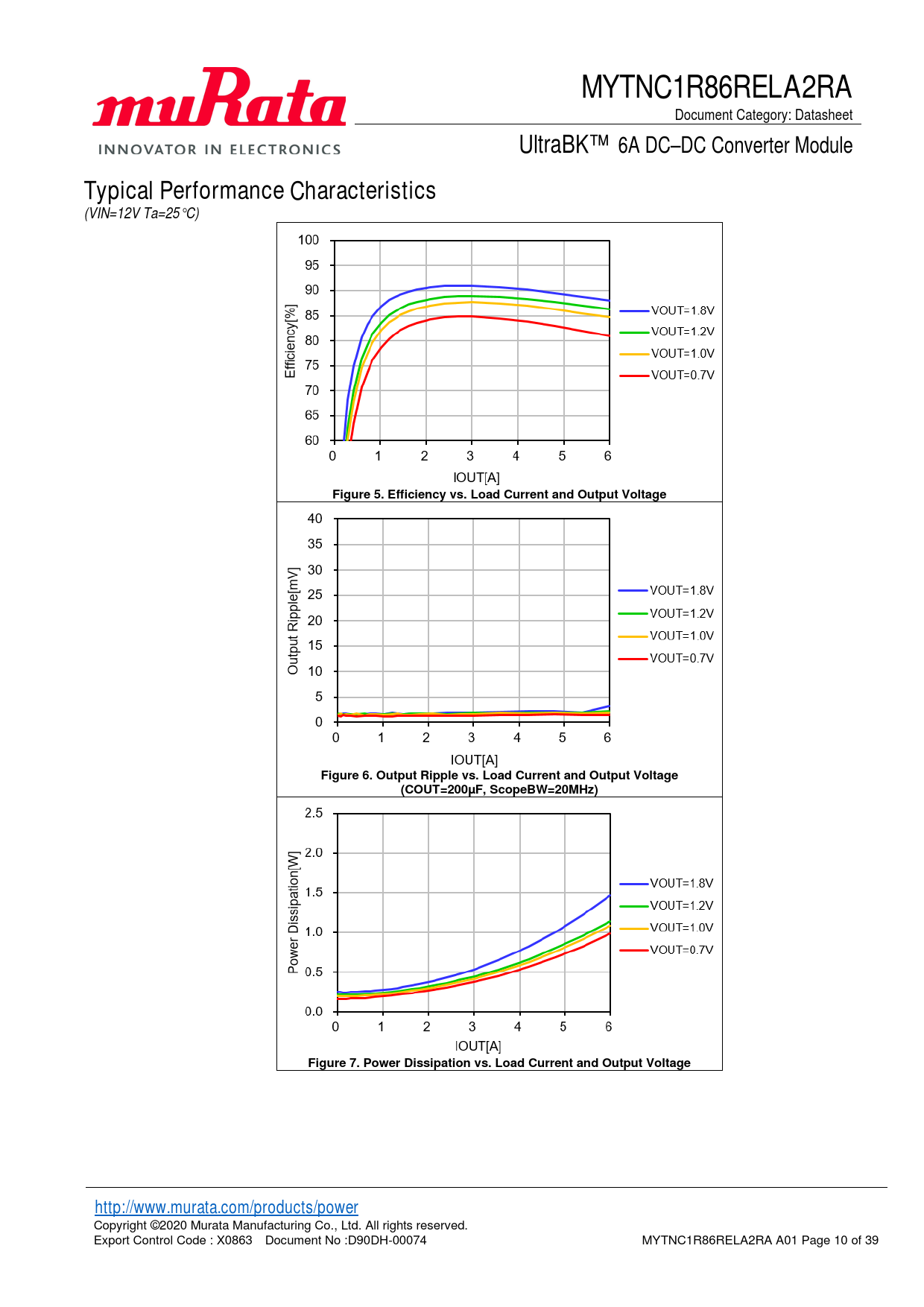

Figure 5. Efficiency vs. Load Current and Output Voltage Figure 6. Output Ripple vs. Load Current and Output Voltage (COUT=200µF, ScopeBW=20MHz) Figure 7. Power Dissipation vs. Load Current and Output Voltage http://www.murata.com/products/power
