Datasheet HT12D, HT12F (Holtek) - 7
| Manufacturer | Holtek |
| Description | 212 Series of Decoders |
| Pages / Page | 12 / 7 — HT12D/HT12F. Package Information. 18-pin DIP (300mil) Outline Dimensions. … |
| File Format / Size | PDF / 115 Kb |
| Document Language | English |

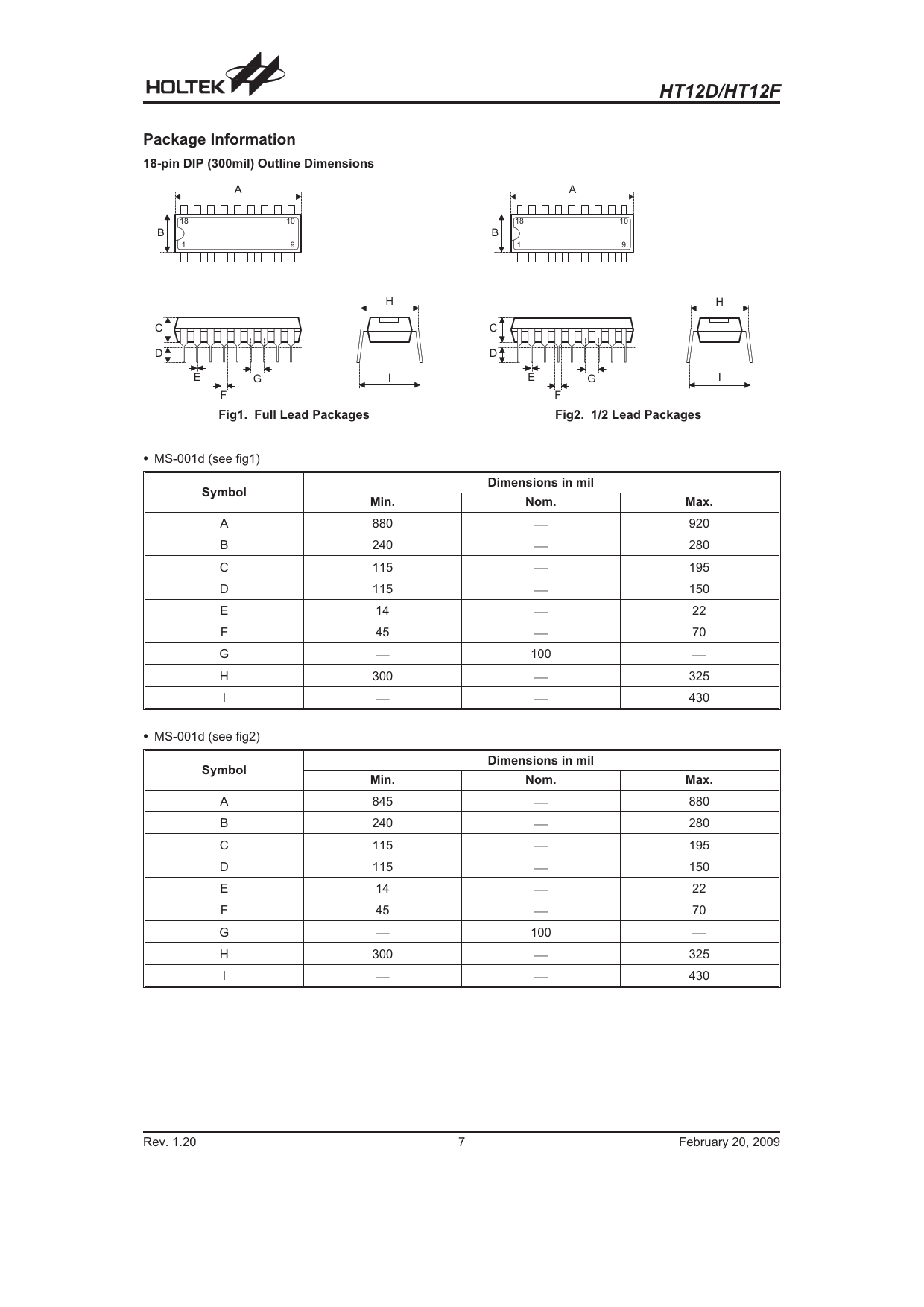

HT12D/HT12F. Package Information. 18-pin DIP (300mil) Outline Dimensions. Fig1. Full Lead Packages. Fig2. 1/2 Lead Packages
Model Line for this Datasheet
Text Version of Document
HT12D/HT12F Package Information 18-pin DIP (300mil) Outline Dimensions
A A 1 8 1 0 1 8 1 0 B B 1 9 1 9 H H C C D D E G I E G I F F
Fig1. Full Lead Packages Fig2. 1/2 Lead Packages
· MS-001d (see fig1)
Dimensions in mil Symbol Min. Nom. Max.
A 880 ¾ 920 B 240 ¾ 280 C 115 ¾ 195 D 115 ¾ 150 E 14 ¾ 22 F 45 ¾ 70 G ¾ 100 ¾ H 300 ¾ 325 I ¾ ¾ 430 · MS-001d (see fig2)
Dimensions in mil Symbol Min. Nom. Max.
A 845 ¾ 880 B 240 ¾ 280 C 115 ¾ 195 D 115 ¾ 150 E 14 ¾ 22 F 45 ¾ 70 G ¾ 100 ¾ H 300 ¾ 325 I ¾ ¾ 430 Rev. 1.20 7 February 20, 2009 Document Outline Features Applications General Description Selection Table Block Diagram Pin Assignment Pin Description Absolute Maximum Ratings Electrical Characteristics Functional Description Application Circuits Package Information Product Tape and Reel Specifications
