Datasheet PIC18F24/25K42 (Microchip) - 10
| Manufacturer | Microchip |
| Description | 28-Pin, Low-Power High-Performance High-Temperature Microcontrollers |
| Pages / Page | 18 / 10 — PIC18F24/25K42. TABLE 2-2:. DC CHARACTERISTICS: SUPPLY CURRENT … |
| File Format / Size | PDF / 268 Kb |
| Document Language | English |

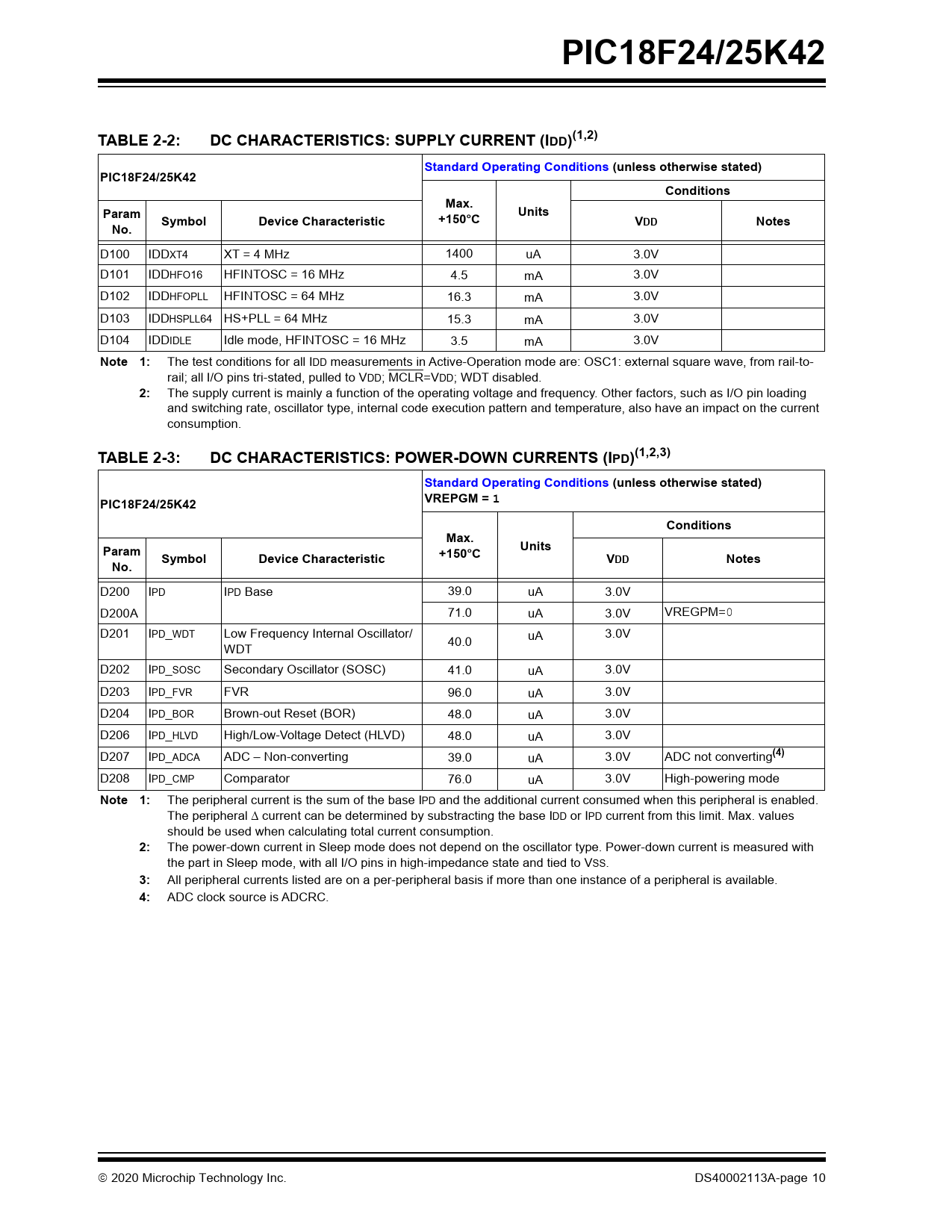

PIC18F24/25K42. TABLE 2-2:. DC CHARACTERISTICS: SUPPLY CURRENT (IDD)(1,2). Standard Operating Conditions
