Datasheet T1235H-8I (STMicroelectronics) - 3
| Manufacturer | STMicroelectronics |
| Description | 12 A -800 V -150°C 8H Triac in TO-220AB insulated |
| Pages / Page | 11 / 3 — T1235H-8I. Characteristics. Table 3. Static characteristics. Symbol. Test … |
| File Format / Size | PDF / 288 Kb |
| Document Language | English |
T1235H-8I. Characteristics. Table 3. Static characteristics. Symbol. Test conditions. Value. Unit. Table 4. Thermal resistance
Model Line for this Datasheet
Text Version of Document
link to page 3 link to page 3 link to page 3

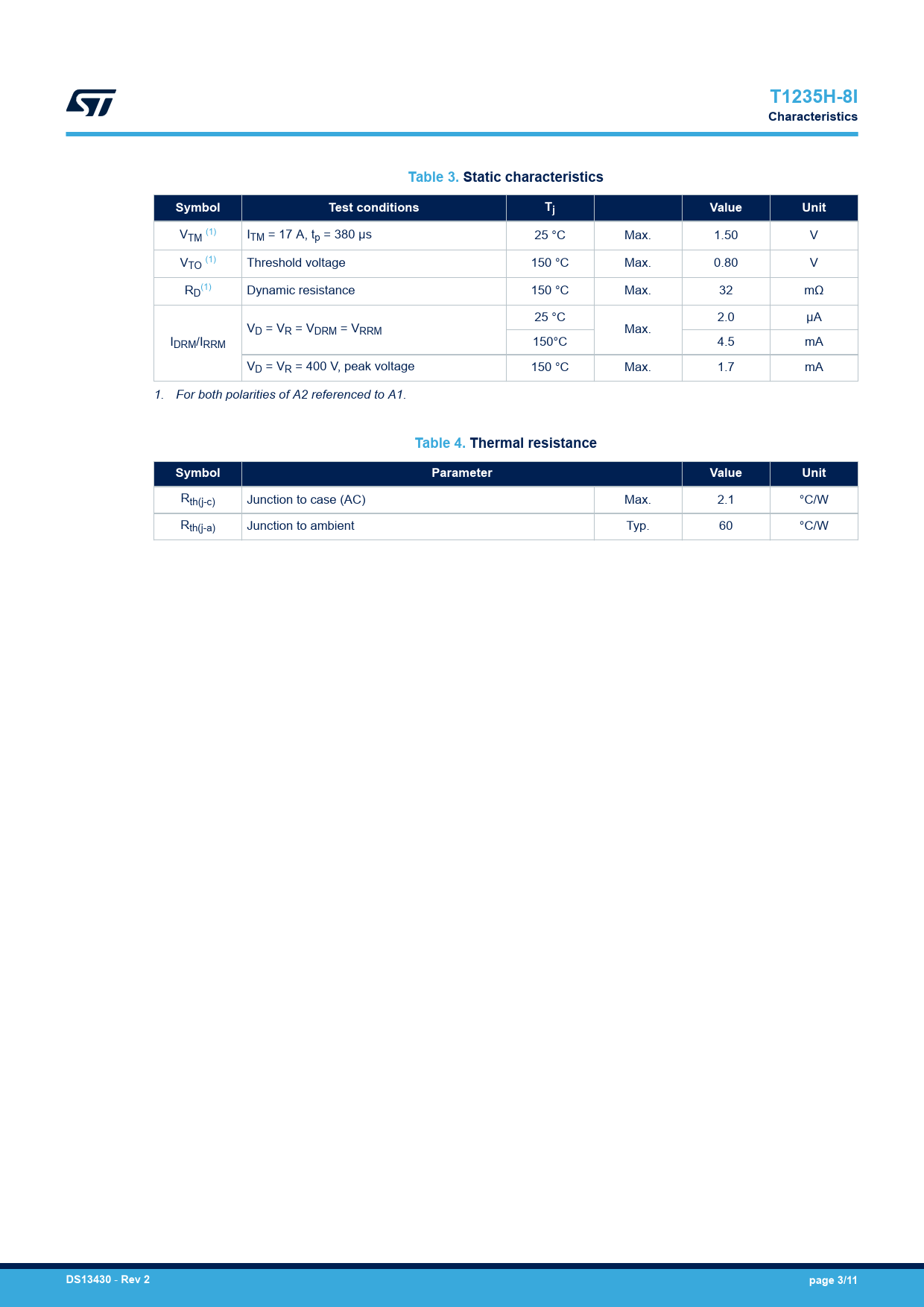

T1235H-8I Characteristics Table 3. Static characteristics Symbol Test conditions Tj Value Unit
VTM (1) ITM = 17 A, tp = 380 µs 25 °C Max. 1.50 V VTO (1) Threshold voltage 150 °C Max. 0.80 V R (1) D Dynamic resistance 150 °C Max. 32 mΩ 25 °C 2.0 µA VD = VR = VDRM = VRRM Max. IDRM/IRRM 150°C 4.5 mA VD = VR = 400 V, peak voltage 150 °C Max. 1.7 mA 1. For both polarities of A2 referenced to A1.
Table 4. Thermal resistance Symbol Parameter Value Unit
Rth(j-c) Junction to case (AC) Max. 2.1 °C/W Rth(j-a) Junction to ambient Typ. 60 °C/W
DS13430
-
Rev 2 page 3/11
