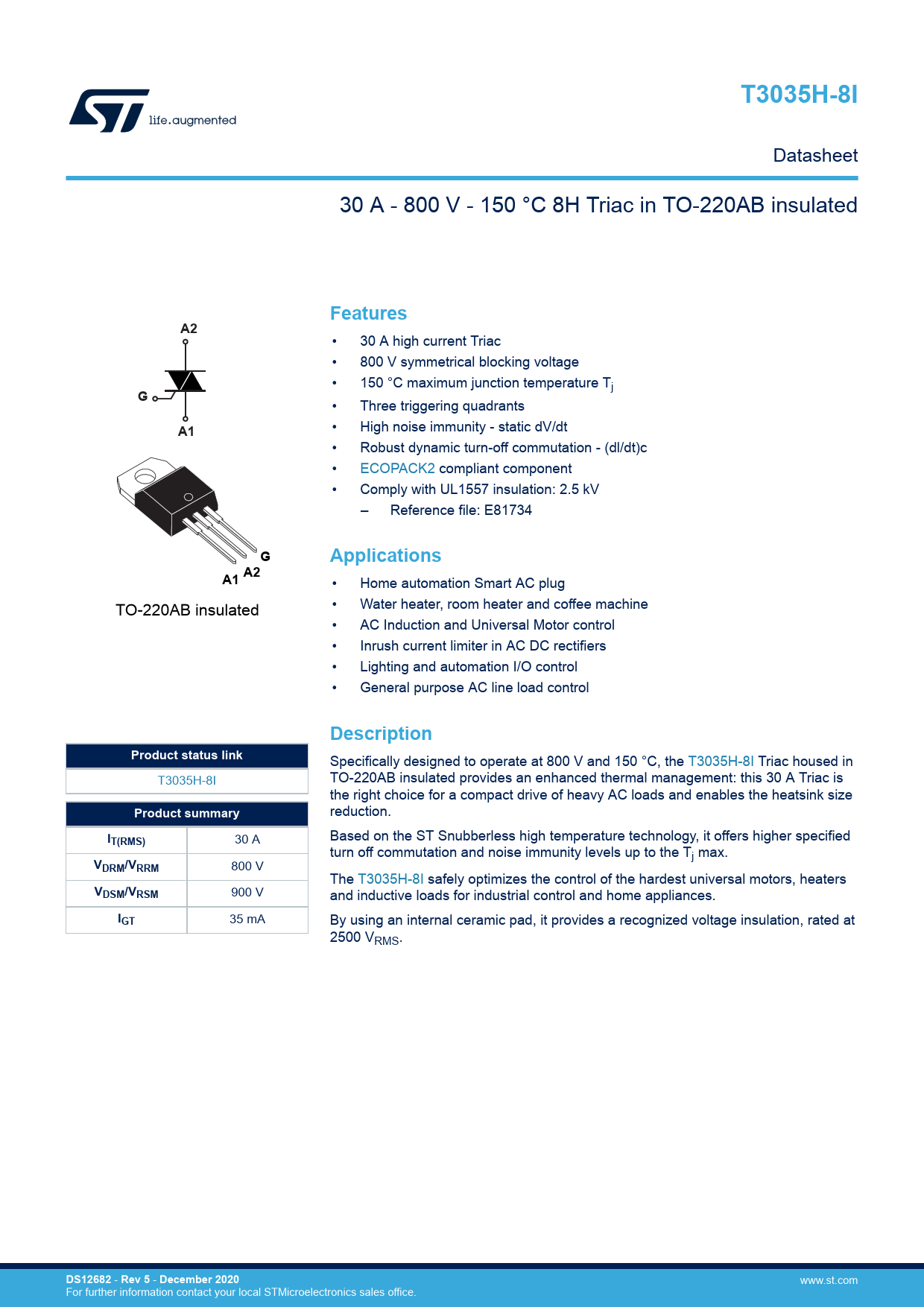

T3035H-8I
Datasheet 30 A - 800 V - 150 °C 8H Triac in TO-220AB insulated
Features A2
• 30 A high current Triac • 800 V symmetrical blocking voltage • 150 °C maximum junction temperature Tj
G
• Three triggering quadrants
A1
• High noise immunity - static dV/dt • Robust dynamic turn-off commutation - (dl/dt)c • ECOPACK2 compliant component • Comply with UL1557 insulation: 2.5 kV – Reference file: E81734
G Applications A1 A2
• Home automation Smart AC plug TO-220AB insulated • Water heater, room heater and coffee machine • AC Induction and Universal Motor control • Inrush current limiter in AC DC rectifiers • Lighting and automation I/O control • General purpose AC line load control
Description Product status link
Specifically designed to operate at 800 V and 150 °C, the T3035H-8I Triac housed in T3035H-8I TO-220AB insulated provides an enhanced thermal management: this 30 A Triac is the right choice for a compact drive of heavy AC loads and enables the heatsink size
Product summary
reduction.
I
Based on the ST Snubberless high temperature technology, it offers higher specified
T(RMS)
30 A turn off commutation and noise immunity levels up to the Tj max.
VDRM/VRRM
800 V The T3035H-8I safely optimizes the control of the hardest universal motors, heaters
VDSM/VRSM
900 V and inductive loads for industrial control and home appliances.
IGT
35 mA By using an internal ceramic pad, it provides a recognized voltage insulation, rated at 2500 VRMS.
DS12682
-
Rev 5
-
December 2020
